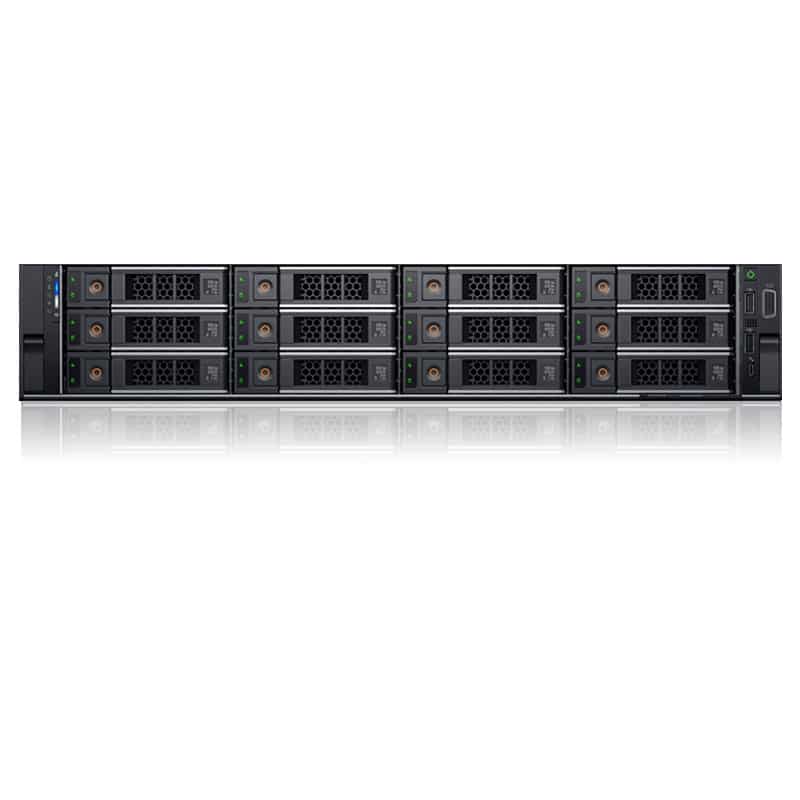

Dell EMC PowerEdge R7515 AMD EPYC 7282 32GB 2x480GB SSD RPS

รหัสสินค้า : SnSR751582
Dell EMC
สถานะ

สั่งจองสินค้า


  • 2U, 3.5″ Chassis with up to 12 Hot Plug Hard Drives and 2 x 3.5″ Rear Drives + LCD Bezel, Riser Config 1, 2 x 16 LP PCIe slot
  • 1x AMD EPYC 7282 2.80GHz, 16C/32T, 64M Cache (120W) DDR4-3200
  • 32GB (2x 16GB) RDIMM, 3200MT/s, Dual Rank
  • Broadcom 57414 Dual Port 25GbE OCP SFP28 LOM Mezz Card
  • 2x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD, 876 TBW
  • PERC H730P RAID Controller, 2Gb NV Cache, Minicard
  • No Internal DVD ROM
  • Dual, Hot-plug, Redundant Power Supply (1+1), 1100W
  • iDRAC9 Enterprise X5 with OpenManage Enterprise Advanced
  • 3Yr ProSupport and Mission Critical: (7×24) 4-hour Onsite Service + 3Yr Keep Your Hard Drive

รับสิทธิ์แลกซื้อ UPS ในราคา

  • APC Smart-UPS C 1000VA/600Watt 2U (SMC1000I-2UC) 14,500 บาท
  • APC Smart-UPS C 1500VA/900Watt 2U (SMC1500I-2UC) 19,000 บาท
  • APC Smart-UPS C 2000VA/1300Watt 2U (SMC2000I-2U) 28,500 บาท
  • APC Smart-UPS C 3000VA/2100Watt 2U (SMC3000RMI2U) 37,000 บาท

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)

  • Windows Server 2019 Essential (ROK ) 13,000 บาท
  • Windows Server 2019 Standard (ROK) 29,500 บาท


ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม

฿147,000.00

สั่งจองสินค้า

Dell EMC PowerEdge R7515 AMD EPYC 7282 32GB 2x480GB SSD RPS (SnSR751582)

Dell EMC PowerEdge R7515 AMD EPYC 7282 32GB 2x480GB SSD RPS (SnSR751582)

  • 2U, 3.5″ Chassis with up to 12 Hot Plug Hard Drives and 2 x 3.5″ Rear Drives + LCD Bezel, Riser Config 1, 2 x 16 LP PCIe slot
  • 1x AMD EPYC 7282 2.80GHz, 16C/32T, 64M Cache (120W) DDR4-3200
  • 32GB (2x 16GB) RDIMM, 3200MT/s, Dual Rank
  • Broadcom 57414 Dual Port 25GbE OCP SFP28 LOM Mezz Card
  • 2x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD, 876 TBW
  • PERC H730P RAID Controller, 2Gb NV Cache, Minicard
  • No Internal DVD ROM
  • Dual, Hot-plug, Redundant Power Supply (1+1), 1100W
  • iDRAC9 Enterprise X5 with OpenManage Enterprise Advanced
  • 3Yr ProSupport and Mission Critical: (7×24) 4-hour Onsite Service + 3Yr Keep Your Hard Drive

Dell EMC PowerEdge R7515 Rack Server

Dell EMC PowerEdge R7515 Rack Server

Dell EMC PowerEdge R7515 Powerful performance and scalability

The Dell EMC PowerEdge R7515 is a single-socket 2U server designed to handle workloads like software-defined storage, virtualization and data analytics.

PowerEdge R7515

Dell EMC PowerEdge R7515 Deliver breakthrough performance, innovation and density for traditional and emerging workloads

Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The PowerEdge R7515 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands. High-level specifications:

  • 100%1 more processing cores and faster data transfer speeds with PCIe Gen 4
  • 20%1 more memory performance for scale out environments
  • Direct connect SAS/SATA/ NVMe for vSAN Ready Nodes
  • High core count performance for high VM density in a single-socket design
  • Multi-die architecture offers low latency and floating-point performance for big data and containers
Increase efficiency and accelerate operations

Dell EMC PowerEdge R7515

Dell EMC PowerEdge R7515 Increase efficiency and accelerate operations

The Dell EMC OpenManage™ systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.

  • Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
  • Simplify and centralize one to many management with the OpenManage Enterprise console.
  • Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
  • Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.2

Dell EMC PowerEdge R7515 Fortify your data center with integrated security

Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

  • Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
  • Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
  • Maintain server firmware safety with digitally signed firmware packages.
  • Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
  • Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase.
Fortify your data center with integrated security


Dell EMC PowerEdge R7515 Specification

Processor

  • One 2nd Gen AMD EPYC™ Processor with up to 64 cores

Operating System

  • Canonical® Ubuntu® Server LTS
  • Citrix® Hypervisor®
  • Microsoft® Windows Server® with Hyper-V
  • Red Hat® Enterprise Linux
  • SUSE® Linux Enterprise Server
  • VMware® ESXi®

Memory4

  • DIMM Speed
    Up to 3200MT/s

  • Memory Type
    RDIMM
    LDIMM

  • Memory Module Slots
    16 DDR4 RDIMM/LRDIMM slots

  • Maximum RAM
    RDIMM  1TB
    LRDIMM  2TB

Storage Controllers

  • Internal Controllers
    PERC HBA330, H330, H730P, H740P

  • External Controllers (RAID)
    H840, 12Gbps SAS HBA

  • Internal Boot
    Boot Optimized Storage Subsystem (BOSS):
    HWRAID 2 x M.2 SATA SSDs

  • Internal Dual SD Module

Power Supplies

  • 495W Platinum
  • 750W Titanium
  • 750W Platinum
  • 1100W Platinum
  • 1600W Platinum

Dimensions & Weight

  • Height
    86.8mm (3.42″)

  • Width
    434.0mm (17.09″)

  • Depth
    647.1mm (25.48″)

  • Weight
    27.3 kg (60.19lb)

Bezel

  • Optional LCD bezel or security bezel

Security

  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
  • AMD Secure Memory Encryption (SME)
  • AMD Secure Encrypted Virtualization (SEV)

Recommended Support

  • Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.

Ports

  • Network Options
    2 x 1GbE
    2 x 10GbE BT
    2 x 10GbE SFP+
    2 x 25GbE SFP28

  • Front Ports
    1 x Dedicated iDRAC direct micro-USB
    2 x USB 2.0
    1 x Video

  • Rear Ports
    2 x 1GbE
    1 x Dedicated iDRAC network port
    1 x Serial
    2 x USB 3.0
    1 x Video

Storage

  • Front Bays
    Up to 8 x 3.5” hot plug SATA/SAS (HDD)
    Up to 12 x 3.5” hot plug SAS/SATA (HDD)
    Up to 24 x 2.5” hot plug SATA/SAS/NVMe

  • Rear Bays
    Up to 2 x 3.5” hot plug SAS/SATA (HDD)

Slots

  • PCIe
    Up to 4:
    2 x Gen3 slots (1 x8; 1 x16)
    2 x Gen4 slots (2 x16)

Management

  • Embedded / At-the-Server
    iDRAC9
    iDRAC RESTful API with Redfish
    iDRAC Direct
    Quick Sync 2 BLE/wireless module

  • Consoles
    OpenManage Enterprise
    OpenManage Enterprise Power Manager

  • Mobility
    OpenManage Mobile

  • Tools
    Dell EMC RACADM CLI
    Dell EMC Repository Manager
    Dell EMC System Update
    Dell EMC Server Update Utility
    Dell EMC Update Catalogs
    iDRAC Service Module
    IPMI Tool
    OpenManage Server Administrator
    OpenManage Storage Services

  • OpenManage Integrations
    BMC Truesight
    Microsoft® System Center
    RedHat® Ansible® Modules
    VMware® vCenter™

  • OpenManage Connections
    IBM Tivoli® Netcool/OMNIbus
    IBM Tivoli® Network Manager IP Edition
    Micro Focus® Operations Manager I
    Nagios® Core
    Nagios® XI

Rack Support

  • ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
รหัสสินค้า: SnSR751582 หมวดหมู่: , , , , ป้ายกำกับ: ,
Brand
Brand

Product Type
Product Type

Server

Chassis Type
Form Factor

Rack 2U Server

Operating System
Operating System

No Operarting System

Processor
Processor

1x EPYC 7282 2.8GHz 16C/32T

CPU Speed

CPU Core

CPU Cache

64 MB

Memory
Memory

32GB (2x16GB) RDIMM DDR4-3200

Optical Drive
Optical Drive

Non

Power Supply
Power Supply

2x 1100W Hot-Plug Power Supply

Warranty
Warranty

3 Years Warranty 24×7 (Part/Labor/Onsite) Service

Server
CPU Socket

1 Socket CPU Support

Storage Controller

PERC H730P Hardware RAID Controller 2Gb NV Cache (RAID-0/1/10/5/50/6/60)

Chassis

12x 3.5"

Disk Bays

12x 3.5" SAS/SATA Hot-Plug

Disks

2x 480GB SSD SATA RI 6Gbps

M.2 Drives

None

Onboard Networking Ports

2x 25/10GbE OCP SFP28

System Management

iDRAC9 Enterprise with OpenManage Enterprise Advanced
