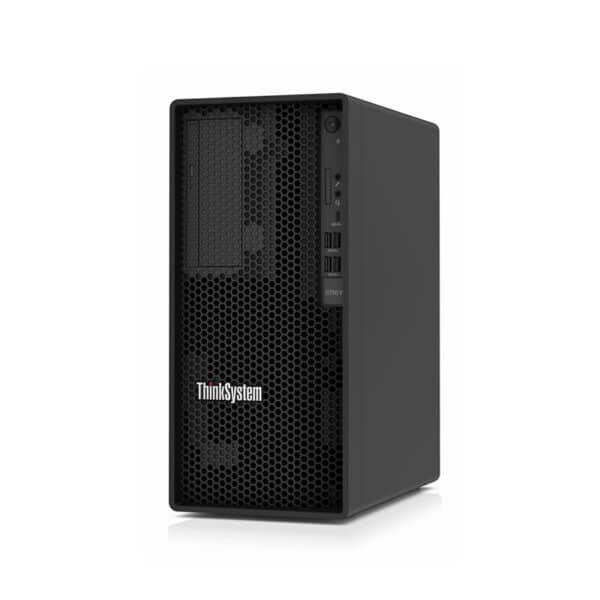

Lenovo-ThinkSystem-ST50-v2-Front-Left, Lenovo-ThinkSystem-ST50-v2-Front

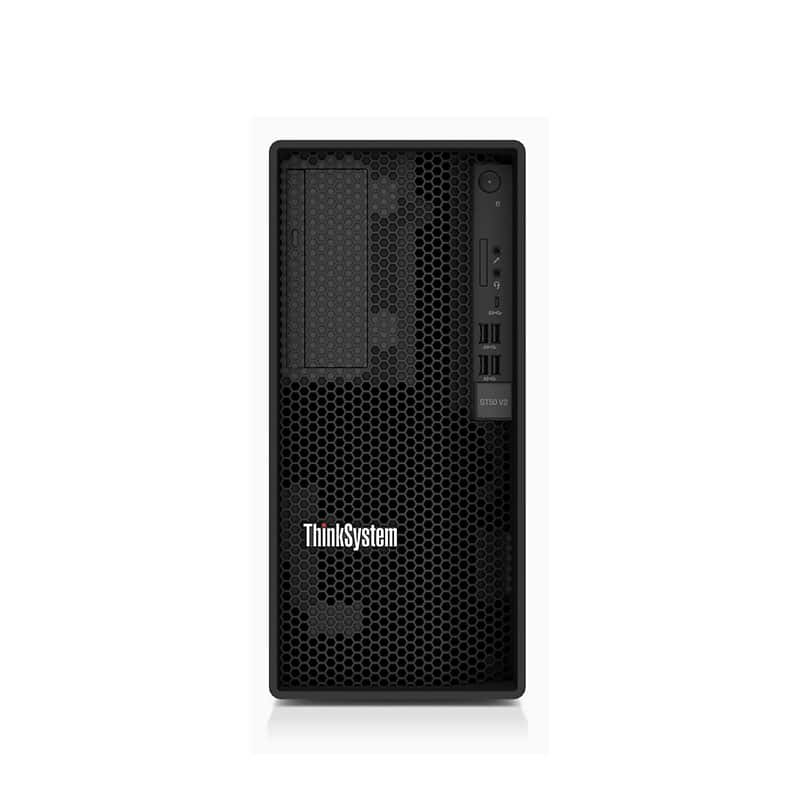

Lenovo-ThinkSystem-ST50-v2-Front

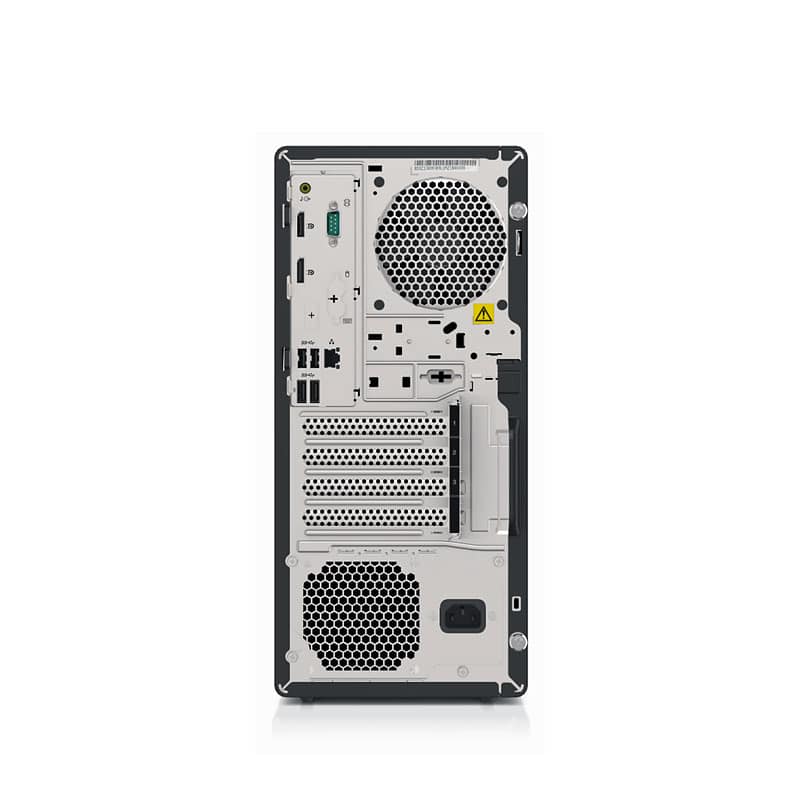

Lenovo-ThinkSystem-ST50-v2-Rear

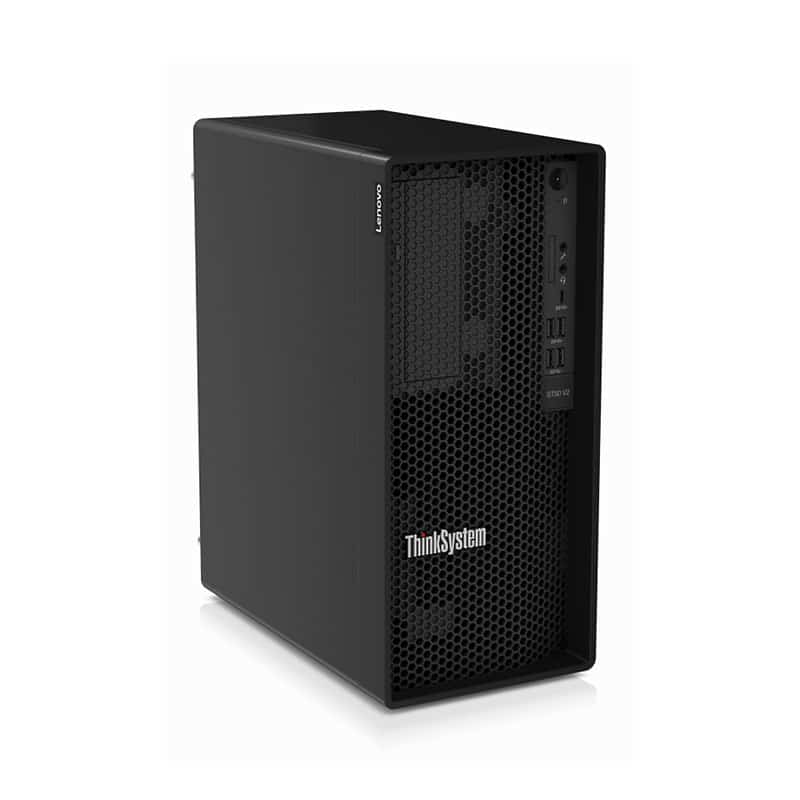

Lenovo-ThinkSystem-ST50-v2-Front-Right

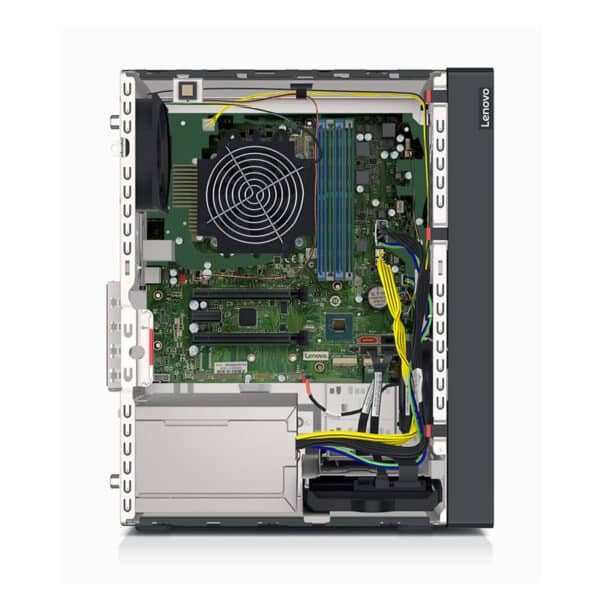

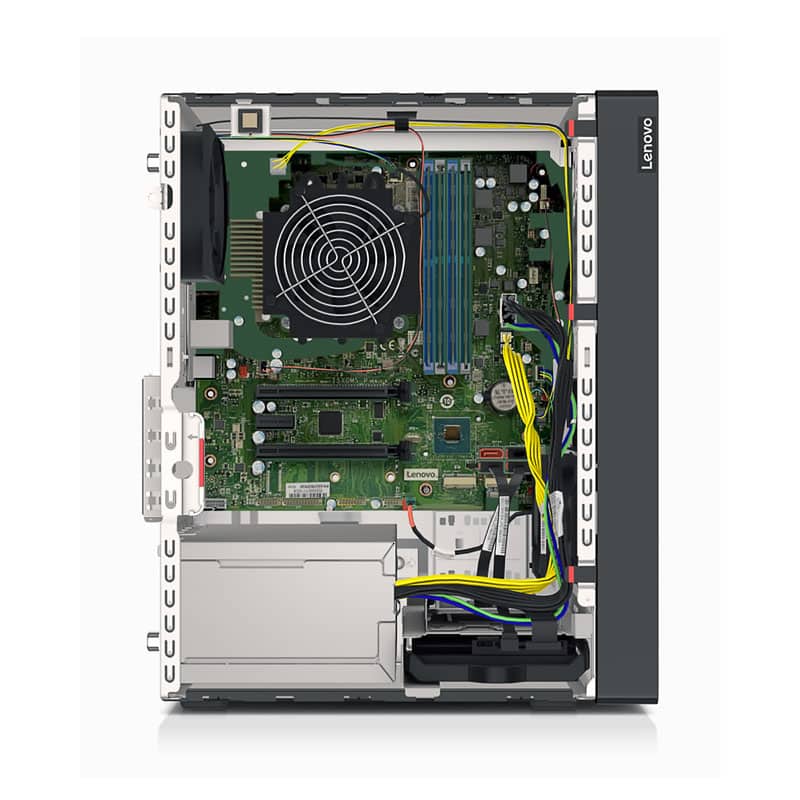

Lenovo-ThinkSystem-ST50-v2-Interior
Lenovo-ThinkSystem-ST50-v2-Front-Left, Lenovo-ThinkSystem-ST50-v2-Front
Lenovo-ThinkSystem-ST50-v2-Front
Lenovo-ThinkSystem-ST50-v2-Rear
Lenovo-ThinkSystem-ST50-v2-Front-Right
Lenovo-ThinkSystem-ST50-v2-Interior
สนใจ
, , , ,

Lenovo ThinkSystem ST50 v2 Intel Xeon E-2324G 8GB No HDD 500W

รหัสสินค้า : 7D8JA00WAP
Lenovo
Availability:

สั่งจองสินค้า
สนใจ
เปรียบเทียบ
  • Intel Xeon E-2324G Processor (3.10GHz, 4C/4T, 8MB Cache)
  • 1 x 8GB TruDDR4 3200MHz (1Rx8, 1.2V) UDIMM
  • No Harddisk Installed
  • Software RAID SATA AHCI
  • DVD-ROM Optical Drive
  • 1 x Gigabit Ethernet 1000BASE-T port (RJ-45)
  • 1 x Fixed Power Supply 500 Watts
  • 3 Years Warranty 24x7x4, Part and Labor, On-site
  • ไม่รวม Monitor, Keyboard and Mouse

รับสิทธิ์แลกซื้อ UPS ในราคา

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)

--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 43,800.00 ฿ 44,400.00
฿ 46,866.00 (ราคารวมภาษี)

สั่งจองสินค้า

Lenovo ThinkSystem ST50 v2 E-2324G 8GB (7D8JA00WAP)

Lenovo ThinkSystem ST50 v2 Intel Xeon E-2324G 8GB 500W (7D8JA00WAP)

Specification

  • Intel Xeon E-2324G Processor (3.10GHz, 4C/4T, 8MB Cache)
  • 1 x 8GB TruDDR4 3200MHz (1Rx8, 1.2V) UDIMM
  • No Harddisk Installed
  • Software RAID SATA AHCI
  • DVD-ROM Optical Drive
  • 1 x Gigabit Ethernet 1000BASE-T port (RJ-45)
  • 1 x Fixed Power Supply 500 Watts
  • 3 Years Warranty 24x7x4, Part and Labor, On-site
  • ไม่รวม Monitor, Keyboard and Mouse

Option

Memory

ราคา ExVAT
4X77A77494 ThinkSystem 8GB TruDDR4 3200 MHz (1Rx8, 1.2V) ECC UDIMM                 4,200
4X77A77495 ThinkSystem 16GB TruDDR4 3200 MHz (2Rx8, 1.2V) ECC UDIMM                 6,200

Drive Bays


4XF7A78617 ThinkSystem ST50 V2 2.5″ Drive Bay 2 Cage Kit Bracket to mount a 2.5-inch drive to drive bay 2                     789
4XF7A79662 ThinkSystem ST50 V2 3.5″ Drive Bay 3 Cage KitBracket to mount a 3.5-inch drive to drive bay 3                     885
  * The option part number includes a SATA cable. See Field upgrades for details.

M.2 Drives


4XF7A79661 ThinkSystem ST50 V2 NVMe M.2 Bracket Kit

Cable kit for field upgrades


4X97A78621 ThinkSystem ST50 V2 Internal Drive Cable Kit, contains:                 1,124
  *1xSAS-to-4xSATA data cable, connects RAID/HBA to 3x SATA drives (SBB7A09984)
  *520mm SATA cable for drive bay 3 (SBB7A46040)
  *Power cable for drive bay 3 and the optical drive (SBB7A46041)
  *Power cable for drive bays 1 and 2 (SBB7A46039)
  Tip: All HDD and SSD drive options include the 185mm SATA cable for use with drive bay 1 or bay 2. The 520mm SATA cable is needed for use with drive bay 3.

2.5-inch simple-swap 6 Gb SATA SSDs


4XB7A77457 ThinkSystem ST50 V2 2.5″ 5300 480GB Read Intensive SATA 6Gb NHS SSD                 9,600
4XB7A77458 ThinkSystem ST50 V2 2.5″ 5300 960GB Read Intensive SATA 6Gb NHS SSD               15,100
4XB7A77459 ThinkSystem ST50 V2 2.5″ S4520 240GB Read Intensive SATA 6Gb NHS SSD               11,100
4XB7A77460 ThinkSystem ST50 V2 2.5″ S4520 480GB Read Intensive SATA 6Gb NHS SSD               13,900
4XB7A77461 ThinkSystem ST50 V2 2.5″ S4520 960GB Read Intensive SATA 6Gb NHS SSD               16,700

3.5-inch simple-swap 6 Gb SATA HDDs


4XB7A77445 ThinkSystem ST50 V2 3.5″ 1TB 7.2K SATA 6Gb NHS 512n HDD                 5,900
4XB7A77446 ThinkSystem ST50 V2 3.5″ 2TB 7.2K SATA 6Gb NHS 512n HDD                 7,200
4XB7A77447 ThinkSystem ST50 V2 3.5″ 4TB 7.2K SATA 6Gb NHS 512n HDD                 8,400
4XB7A77448 ThinkSystem ST50 V2 3.5″ 6TB 7.2K SATA 6Gb NHS 512e HDD               11,200
4XB7A77449 ThinkSystem ST50 V2 3.5″ 8TB 7.2K SATA 6Gb NHS 512e HDD               12,700
4XB7A77450 ThinkSystem ST50 V2 3.5″ 1TB Client 7.2K SATA 6Gb NHS 512e HDD                 3,800
4XB7A77451 ThinkSystem ST50 V2 3.5″ 2TB Client 7.2K SATA 6Gb NHS 512e HDD                 4,600

3.5-inch simple-swap 6 Gb SATA SSDs


4XB7A77452 ThinkSystem ST50 V2 3.5″ 5300 480GB Read Intensive SATA 6Gb NHS SSD                 9,800
4XB7A77453 ThinkSystem ST50 V2 3.5″ 5300 960GB Read Intensive SATA 6Gb NHS SSD               15,300
4XB7A77454 ThinkSystem ST50 V2 3.5″ S4520 240GB Read Intensive SATA 6Gb NHS SSD               11,300
4XB7A77455 ThinkSystem ST50 V2 3.5″ S4520 480GB Read Intensive SATA 6Gb NHS SSD               14,100
4XB7A77456 ThinkSystem ST50 V2 3.5″ S4520 960GB Read Intensive SATA 6Gb NHS SSD               16,900

รับสิทธิ์แลกซื้อ UPS ในราคา

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)

ThinkSystem ST50 V2 Tower Server

Powerful, compact, and affordable first server

An entry tower server optimized for performance. A powerful, compact and quiet server ideal for discreet desk side or under desk placement in any business, retail, remote/branch or home office. The ThinkSystem ST50 V2 provides professional grade storage, reliability and serviceability. A first server designed to grow with your business.

Lenovo-ThinkSystem-ST50-v2-Front-Left, Lenovo-ThinkSystem-ST50-v2-Front

Features

Powerful and high value



An ideal first server for your growing business, remote/branch office, or retail location, the Lenovo ThinkSystem ST50 V2 enhanced performance increases productivity.

The ThinkSystem ST50 V2 boasts the improved operation of the latest Intel® Xeon® E-2300 processors. With a 17% increase in performance the ThinkSystem ST50 V2 offers professional-level capabilities at an entry-level price-point. High value versus a workstation with the benefits of a resilient server.


Flexible



The ThinkSystem ST50 V2 adds value and flexibility for your growing business by providing support for three PCIe slots with support of single NVIDIA GPU, and various high bandwidth network adapters along with an array of compatible storage drives. It can be scaled to fit your growing business, provides high reliability, and uses common components to reduce costs.

Lenovo’s XClarity (USB) provisioning manager enables easy setup and firmware upgrades while Intel Active Management Technology (AMT)saves time and reduces costs by monitoring system health and preventing data disruption.

Energy-efficient, quiet, yet powerful



Designed for discretion the ST50 V2’s compact size, flexible mounting options, and whisper-quiet acoustics allow it to be placed in an office environment without disruption

It´s energy-efficient with a TDP of no more than 95W and supports up to 8 core performance. Providing optimal performance for increased productivity and energy cost-savings.

 LEN21TS0004 feature-3.jpg

ข้อมูลทางเทคนิค

Form Factor/Height
  • 1-Socket (1S) Entry Tower
  • 17 liter chassis
Number of Processors
  • Support single Xeon E2300 Series “Rocket Lake” processor up to 8C / 95W
  • Also supports Pentium processors
  • Intel C256 “Tiger Lake” Platform Controller Hub (PCH)
Memory
  • 4x UDIMM slots, up to 128GB, 3200MHz with Xeon E-2300 processors
  • TruDDR4 ECC memory
Drive Bays
  • Up to 3 bays
  • 2x 3.5” HDD or SSD, (1 standard, 1 optional); 1×2.5” SSD (optional)
  • 1x M.2 NVMe SSD (2280 form factor)
  • 1x slim SATA DVD-RW in dedicated bay (optional)
HBA/RAID Support
  • Intel VROC 6.x SW RAID (Software RAID Support only Windows OS)
  • HW RAID support (limited)
I/O Interface
  • Power button & LED
  • Thermal sensor
  • 1x USB 3.2 G2 (10 Gbps) with USB-C connector
  • 2x USB 3.2 G1 (5 Gbps); 2x USB 3.2 G2 (10 Gbps) ports
  • 1x Microphone port, 1x Headset port
Network Interface
  • 1x 1GbE Embedded (Intel I219-LM)
Power
  • 1x Fixed power supply
  • Choose from 300W Gold or 500W Platinum
Systems Management
  • Intel AMT 15 Management
  • TPM embedded: TPM 2.0
  • Lenovo XClarity Provisioning Manager Lite (USB based)
PCI-e Slot
  • Intel AMT 15 Management
  • TPM embedded: TPM 2.0
  • Lenovo XClarity Provisioning Manager Lite (USB based)


Lenovo ThinkSystem ST50 E-2324G 8GB 1TB (7D8JS01C00)

SKU: 7D8JA00WAP Categories: , , , , Tags: , , ,

Data Sheet

Brand
Brand
Product Type
Product Type

Server
Chassis Type
Form Factor

Tower Server
Operating System
Operating System

No Operarting System
Processor
Processor

Xeon E-2324G 3.1GHz 4C/4T

CPU Speed

CPU Core

CPU Cache

8 MB
Memory
Memory

8GB (1x8GB) UDIMM DDR4-3200
Optical Drive
Optical Drive

DVD-ROM Internal
Power Supply
Power Supply

300W Fixed Power Supply
Warranty
Warranty

3 Years Warranty 24×7 (Part/Labor/Onsite) Service
Server
CPU Socket

1 Socket CPU Support

Storage Controller

Software RAID Controller (RAID-0/1/10/5)

Chassis

3x 3.5"

Disk Bays

3x 3.5" SATA Simple-Swap

Disks

1x 1TB 7.2K SATA 6Gbps

M.2 Drives

None

Onboard Networking Ports

1x 1GbE RJ-45

System Management

None
More
Weight

11.2 kg

Dimensions

41 × 18 × 38 cm
