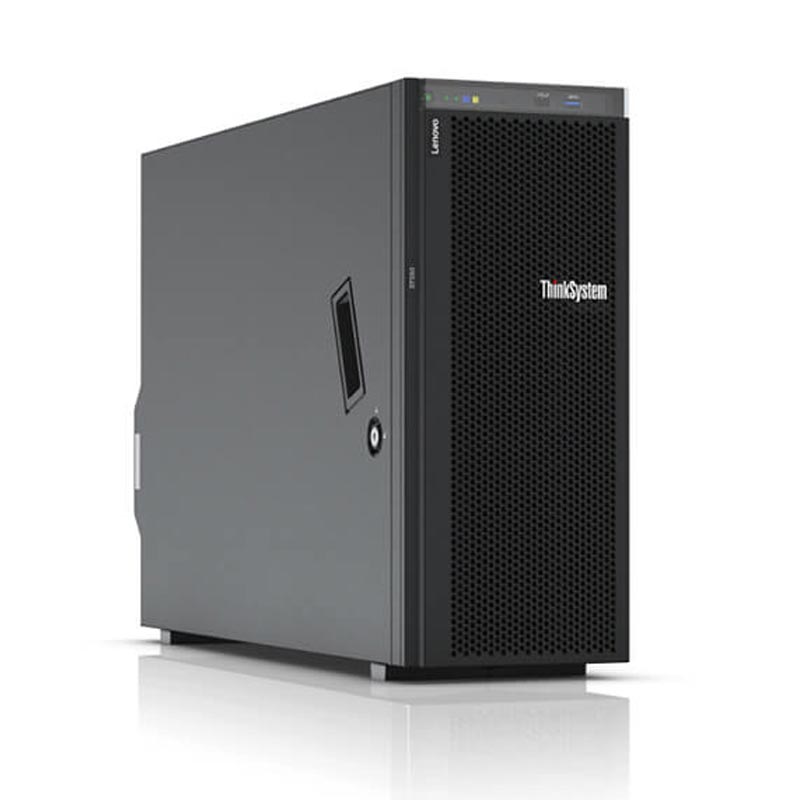

Lenovo ThinkSystem ST550 Silver 4208 16GB SFF 2x300GB RPS (ICT1)

รหัสสินค้า : 7X10S3J400
Lenovo
Availability:

สั่งจองสินค้า


  • 4U Tower Server
  • No Operating System
  • 1 x Intel® Xeon® Silver 4208 8C/16T 85W 2.1GHz /11M
  • 16GB TruDDR4 2933 MHz (1Rx4 1.2V) RDIMM
  • 8 Slot 2.5-inch Harddisk Bay
  • 2 x 300GB 10K SAS 12Gb Hot Swap 512n HDD
  • Two integrated Gigabit Ethernet 1000BASE-T port
  • + Broadcom 5720 PCIe 1Gb 2-Port RJ45
  • ServerRAID 530-8i Support RAID-0/1/10/5/50
  • External USB DVD-RW Drive
  • XClarity level Advanced Management Controller
  • 2 x 750W High Efficiency Platinum AC Base Power Supply
  • 3 Year Warranty On-site 24×7 Support

รับสิทธิ์แลกซื้อ UPS ในราคา

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)



--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 87,000.00 ฿ 90,200.00
฿ 93,090.00 (ราคารวมภาษี)

สั่งจองสินค้า

7X10S3J400 Lenovo ThinkSystem ST550 Silver 4208

Lenovo ThinkSystem ST550 Silver 4208 8C 2.1GHz 16GB 2x300GB SFF HS 2x750W

Lenovo ThinkSystem ST550 Silver 4208 Tower Server ขนาด 4U ที่เพิ่มความสามารถมากกว่ารุ่นเก่าด้วยประสิทธิภาพ Intel® Xeon® Scalable family CPUs และความสามารถในการใส่ Harddisk ขนาด 2.5-inch ได้สูงสุดถึง 8 ลูก เพื่อให้คุณใช้งานเป็น File Server ได้อย่างสบาย อีกทั้งยังรองรับการเพิ่มขยาย CPU ได้ถึง 2 ตัวเพื่อการประมวลผลที่ดีขึ้น ขยาย RAM ได้ถึง 768GB รองรับการทำงาน RAID-0/1/10/5 แบบ Hardware ช่วยเพิ่มการปกป้องข้อมูลกรณีที่ Harddisk ลูกใดลูกหนึ่งเสีย รองรับ M.2 Storage ที่สามารถทำให้ระบบการ Boot OS ทำงานได้เร็วขึ้น สามารถใส่ PCIe Adapter Card ได้มาถึง 6 ใบ (ต้องมี 2 CPU) และยังมี Network Interface แบบ Gigabit มาให้พร้อมถึง 2 Ports อีกด้วย

จุดเด่น

  • รับประกัน 3 ปี แบบ 24×7 Onsite Support
  • มี CPU Intel Xeon Silver 4208 2.1GHz 8 Core ติดตั้งมา 1 ตัว
  • ใส่ Harddisk ขนาด 2.5-inch ได้สูงสุด 8 ลูก
  • รองรับการทำงาน RAID-0/1/5/10 แบบ Hardware
  • มี Harddisk ขนาด 300GB SAS 10K ติดตั้งมาแล้ว 2 ลูก
  • มี Power Supply ขนาด 750Watt จำนวน 2 ตัวแบบ Redundant
  • รองรับ Memory สูงสุด 768GB
  • มี xClarity Controller Management

เหมาะกับใคร

  • บริษัทฯ ที่มีผู้ใช้ไม่เกิน 50 คน

รองรับการทำงาน

  • File and Print Server การใช้งานข้อมูลและการพิมพ์งานร่วมกัน
  • Active Directory
  • Web Server
  • Small Database รองรับการใช้งาน Database ที่มีผู้ใช้จำนวนน้อย

แนะนำ Operating System


Specification

  • 4U Tower Server
  • No Operating System
  • 1 x Intel® Xeon® Silver 4208 8C/16T 85W 2.1GHz /11M
  • 16GB TruDDR4 2933 MHz (1Rx4 1.2V) RDIMM
  • 8 Slot 2.5-inch Harddisk Bay
  • 2 x 300GB 10K SAS 12Gb Hot Swap 512n HDD
  • Two integrated Gigabit Ethernet 1000BASE-T port
  • + Broadcom 5720 PCIe 1Gb 2-Port RJ45
  • ServerRAID 530-8i Support RAID-0/1/10/5/50
  • External USB DVD-RW Drive
  • XClarity level Advanced Management Controller
  • 2 x 750W High Efficiency Platinum AC Base Power Supply
  • 3 Year Warranty On-site 24×7 Support

รับสิทธิ์แลกซื้อ UPS ในราคา

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)


Lenovo ThinkSystem ST550 Tower Server

Lenovo ThinkSystem ST550 Tower Server

ThinkSystem ST550

Enterprise performance and flexibility. Compact footprint.

  • Second-generation Intel® Xeon® processor Scalable family
  • Next-generation 4U tower design
  • Software and Hardware RAID options
  • Newest enterprise-class RAS technologies
  • XClarity centralized automated management

ThinkSystem ST550 Tower Server

คุณลักษณะ

Lenovo ThinkSystem ST550 Workload-optimized support

New second-generation Intel® Xeon® Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory and Intel’s Vector Neural Network Instruction (VNNI) which accelerates processor performance for the needs of growing higher data transmitting speed and advanced computing performance. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.*

* Based on Intel internal testing, August 2018.

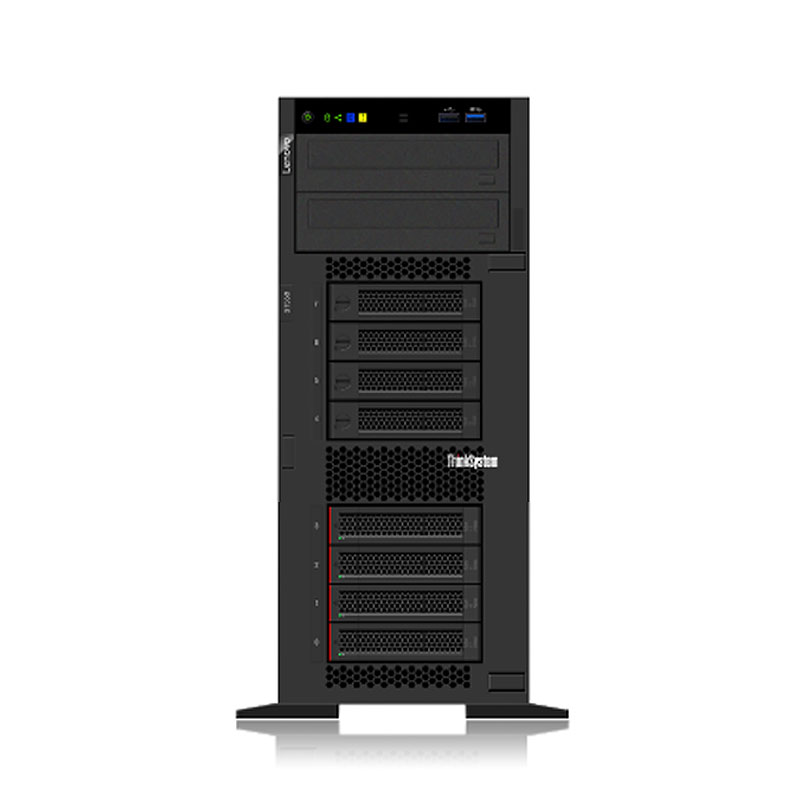

Lenovo ThinkSystem ST550 Close Up of Drives and Ports

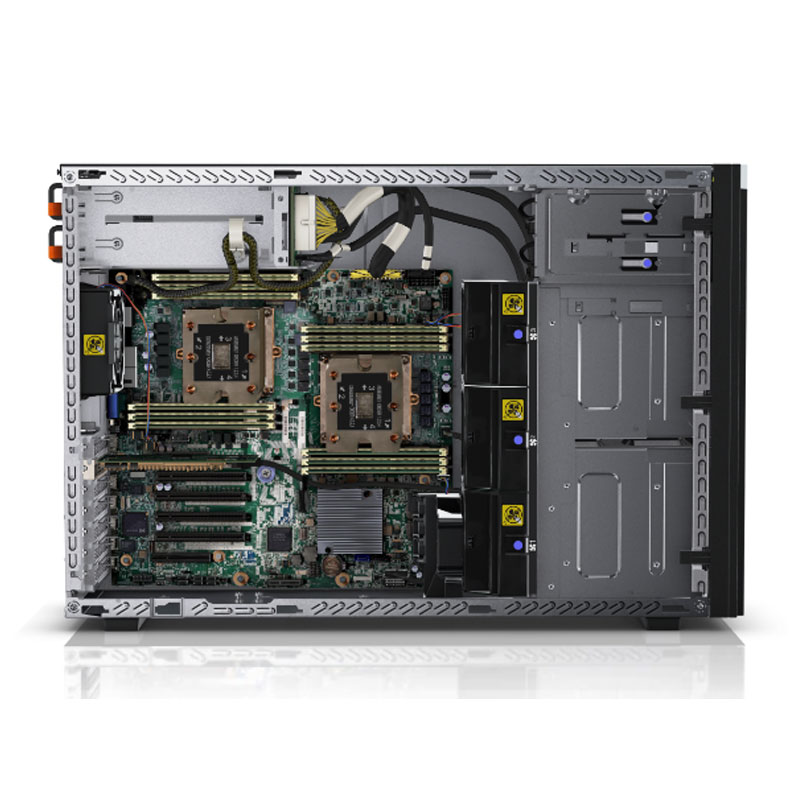

Lenovo ThinkSystem ST550 Internal View with Processor

ThinkSystem ST550 Accelerate data insights

ThinkSystem ST550 supports up to two NVIDIA graphic processing unit (GPUs) cards up to 250W. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST550 ideal for virtualization, VDI, and private cloud.

Flexible storage

Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.

Lenovo ThinkSystem ST550 Bay Configuration

Lenovo ThinkSystem ST550 ข้อมูลทางเทคนิค

Form Factor/Height 4U rackable tower
Processor
Up to 2 second-generation Intel® Xeon® Platinum processors, up to 125W
Memory Up to 768GB in 12x DIMM slots using 64GB DIMMs; 2666 and 2933MHz TruDDR4
Expansion Slots Up to 6x PCIe 3.0 (with 2x processors)
Drive Bays Up to 16x 2.5″ (including 4 NVMe) or 8x 3.5″ bays; Plus up to 4x 2.5″ and 2x internal M.2 boot
HBA/RAID Support Software RAID (4x ports) standard; optional hardware RAID (up to 24x ports); up to 16-port HBAs
Security and Reliailability Features Lenovo ThinkShield, lockable security bezel, Kensington lock slot, chassis intrusion switch, TPM 1.2/2.0, Predict Failure Analysis, hot-swap/redundant drives, redundant PSUs
Network Interface 2x 1GbE ports standard; See ST550 product guide for more options
Power (Energy Star 2.1 compliant) 1x 450W 80 PLUS Gold (fixed); or 2x 550W/750W/1100W 80 PLUS Platinum (hot-swap/redundant N+1); or 2x 750W 80 PLUS Titanium (hot-swap/redundant)
Systems Management XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
Operating Systems Supported Microsoft Windows Server, SUSE, Red Hat, VMware vSphere. Visit lenovopress.com/osig for details.
Limited Warranty 1-year and 3-year customer replaceable unit and onsite service, next business day 9×5
Brand
Brand

Product Type
Product Type

Server

Chassis Type
Form Factor

Tower Server

Operating System
Operating System

No Operarting System

Processor
Processor

1x Xeon Silver 4208 2.1GHz 8C/16T

CPU Speed

CPU Core

CPU Cache

11 MB

Memory
Memory

16GB (1x16GB) RDIMM DDR4-2933

Optical Drive
Optical Drive

DVD +/-RW External USB

Power Supply
Power Supply

2x 750W Hot-Plug Power Supply

Warranty
Warranty

3 Years Warranty 24×7 (Part/Labor/Onsite) Service

Server
CPU Socket

2 Socket CPU Support

Storage Controller

ThinkSystem RAID 530-8i (RAID-0/1/10/5/50)

Chassis

8x 2.5"

Disk Bays

8x 2.5" SAS/SATA Hot-Plug

Disks

2x 300GB 10K SAS 12Gbps

M.2 Drives

None

System Management

XClarity Controller Standard

ICT Spec

คอมพิวเตอร์แม่ข่ายแบบที่ 1

More
Weight

24.5 kg
