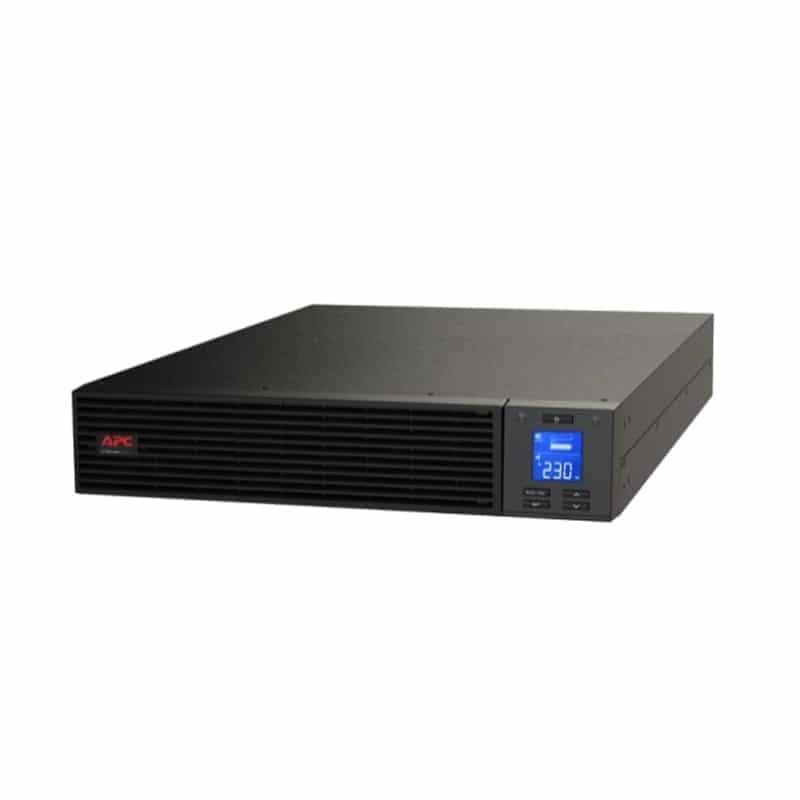

APC Easy UPS On-Line SRV RM 2000 VA 230V with Rail Kit

รหัสสินค้า : SRV2KRIRK
เพิ่มเพื่อนกดเลย LINE ID: @SERVERPROTHAI
ติดต่อฝ่ายขายโทรเลย คุณนัท 086-3349816, คุณวิน 081-6655775
สถานะ

สั่งจองสินค้า


  • Max Configurable Power (Watts) : 2000VA / 1600 Watts
  • Other Output Voltages : 220, 240
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Interface Port(s) : DB-9 RS-232, USB
  • Rack Height : 2U

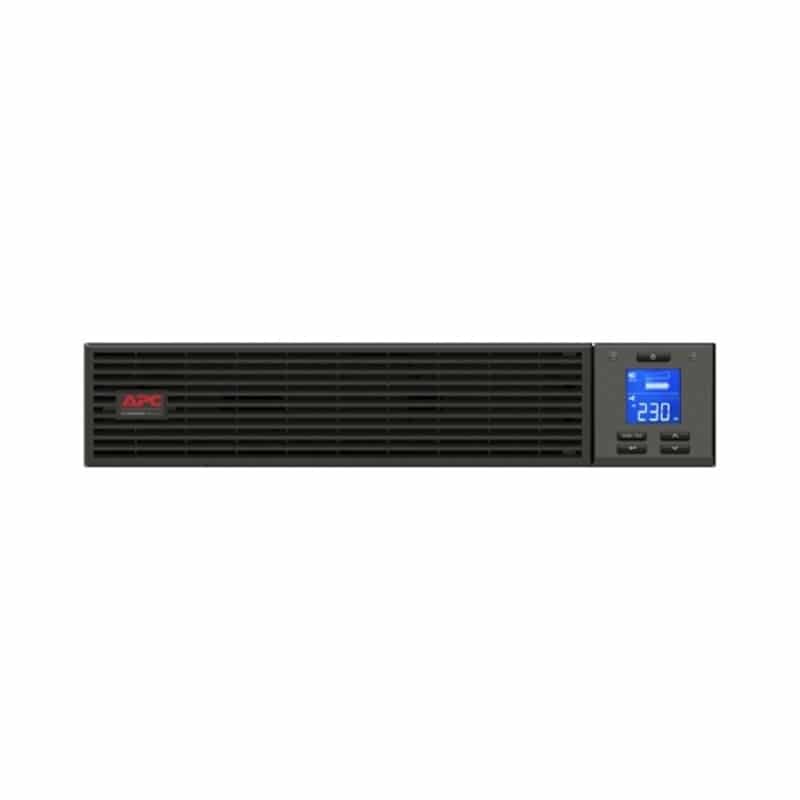

  • Control panel : Multi-function LCD status and control console

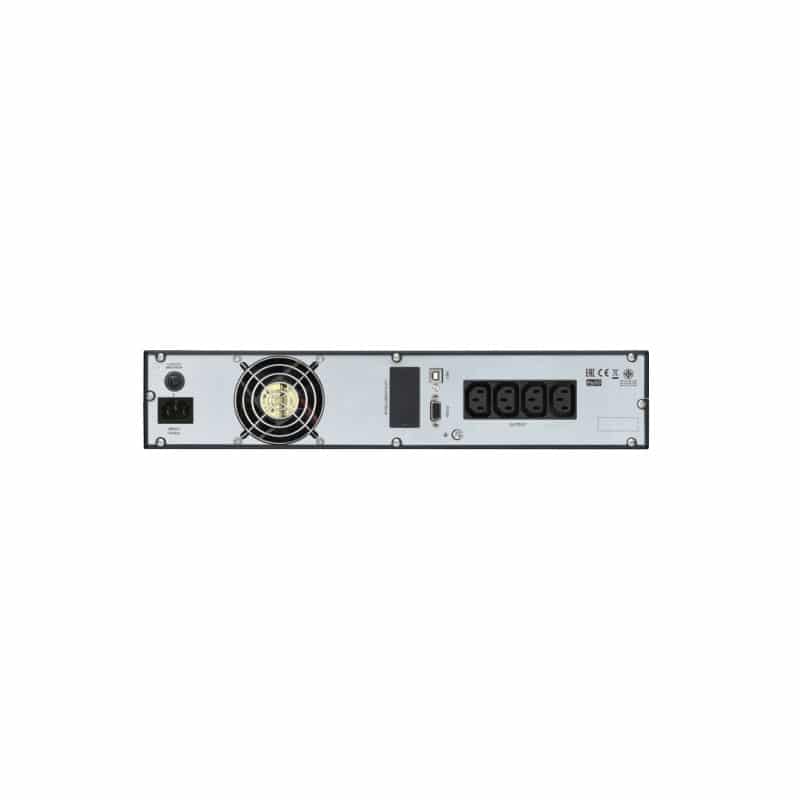

  • Output Connections : (4) IEC C13 (Battery Backup)

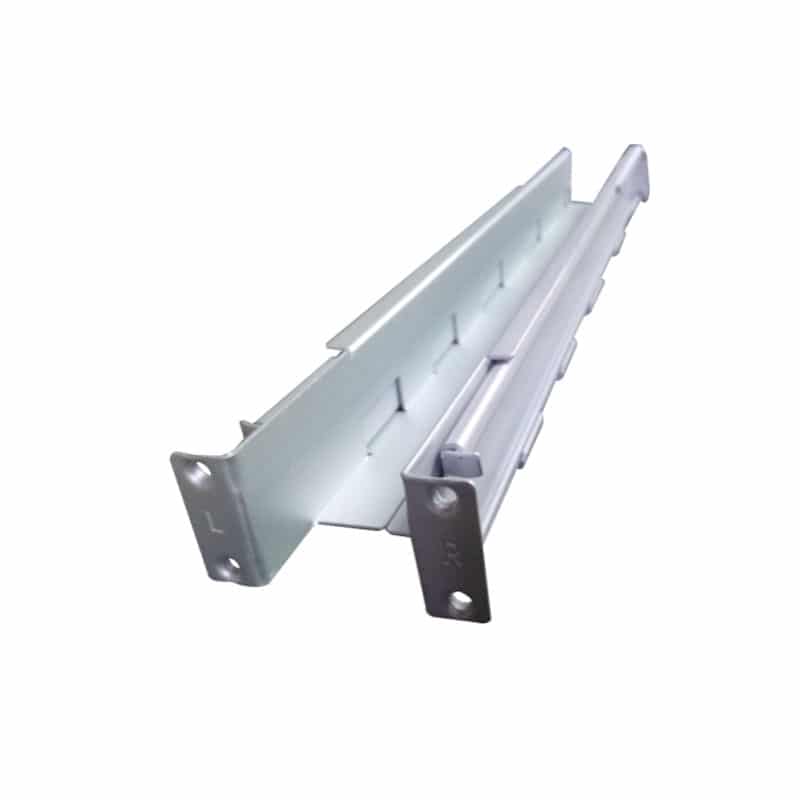

  • Includes: Basic UPS signalling RS-232 cable, CD with software, Rack mounting support rails, USB cable, User manual
  • 2Years Warranty 8×5 On-Site

            SRV Model RACK : แบบต่อแบตไม่ได้ // ไม่มี Powerchute





ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม

฿23,000.00 ฿26,000.00

สั่งจองสินค้า

APC Easy UPS On-Line SRV RM 2000 VA 230V with Rail Kit (SRV2KRIRK)

APC Easy UPS On-Line SRV RM 2000 VA 230V with Rail Kit (SRV2KRIRK)

Output

  • Max Configurable Power (Watts) : 2000VA / 1600 Watts
  • Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
  • Efficiency at Full Load : 88.0 %
  • Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
  • Other Output Voltages : 220, 240
  • Load Crest Factor : (3 : 1)
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Bypass : Internal bypass (automatic and manual)

Input

  • Input frequency : 40 – 70 Hz
  • Input voltage range for main operations : 110 – 285 Adjustable (half load), 160 – 280V
  • Number of Power Cords : 1
  • Efficiency at Full Load : 88.0 %
  • Other Input Voltages : 220, 240

Batteries & Runtime

Communications & Management

  • Interface Port(s) : DB-9 RS-232, USB
  • Control panel : Multi-function LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating : 600Joules

Physical

  • Maximum Height : 86MM, 8.6CM
  • Maximum Width : 437MM, 43.7CM
  • Maximum Depth : 462MM, 46.2CM
  • Net Weight : 18.2KG
  • Shipping weight : 20.7KG
  • Shipping Height : 142MM, 14.2CM
  • Shipping Width : 551MM, 55.1CM
  • Shipping Depth : 599MM, 59.9CM
  • Color : Black

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3048meters
  • Storage Temperature : -20 – 50 °C
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 50.0dBA
  • Protection Class : IP20

Conformance

  • Approvals : CE, IEC 62040-1-1, IEC 62040-1-2
  • Standard Warranty : 2Years (manufacturer’s defect)
