APC Smart-UPS 5000VA 230V Rackmount/Tower

APC Smart-UPS SUA5000RMI5U

APC Smart-UPS SUA5000RMI5U

APC Smart-UPS 5000VA 230V Rackmount/Tower

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

• Max Configurable Power (Watts) : 4.0kWatts / 5.0kVA
• Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
• Efficiency at Full Load : 96.0 %
• Output Voltage Distortion : Less than 5 % at full load
• Output Frequency (sync to mains) : 47 – 53 Hz For 50 Hz nominal Sync to mains
• Other Output Voltages : 220 V, 240 V
• Load Crest Factor : 3 : 1
• Topology : Line interactive
• Waveform type : Sine wave
• Transfer Time : 2 ms typical : 4 ms maximum

Input

• Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations : 151 – 302 Adjustable, 160 – 286V
• Efficiency at Full Load : 96.0 %

Batteries & Runtime

• Battery type : Valve Regulate Lead Acid (VRLA)
• Typical recharge time : 3hour(s)
• Expected Battery Life (years) : 3 – 5
• RBC Quantity : 2
• Battery Charge Power (Watts) : 542 Watts

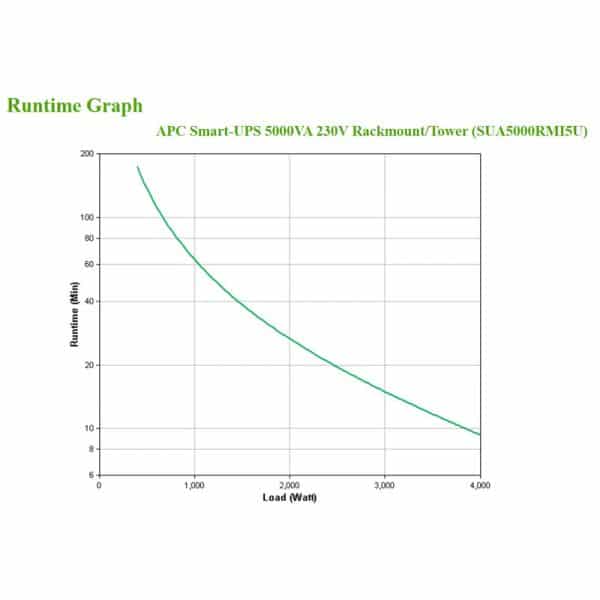

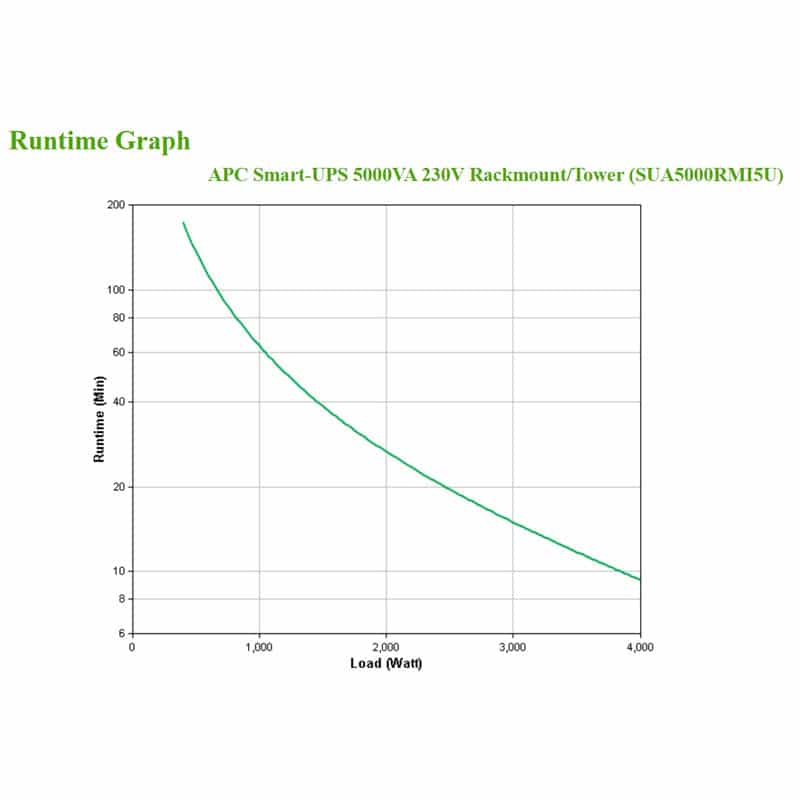

• Runtime : Runtime Graph

Communications & Management

• Interface Port(s) : DB-9 RS-232, SmartSlot
• Control panel : LED status display with on line : on battery : replace battery and overload indicators
• Audible Alarm : Audible and visible alarms : configurable delays


Surge Protection and Filtering

• Surge energy rating : 480Joules
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical

• Maximum Height : 222MM, 22.2CM
• Maximum Width : 483MM, 48.3CM
• Maximum Depth : 660MM, 66.0CM
• Net Weight : 97.73KG
• Shipping weight : 106.82KG
• Shipping Height : 635MM, 63.5CM
• Shipping Width : 610MM, 61.0CM
• Shipping Depth : 762MM, 76.2CM
• Color : Black
• Master Carton Units : 1.0
• Units per Pallet : 4.0

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 (Non-condensing) %
• Operating Elevation : 0 – 3048meters
• Storage Temperature : -15 – 45 °C
• Storage Elevation : 0 – 15240meters
• Audible noise at 1 meter from surface of unit : 53.0dBA
• Online thermal dissipation : 430.0BTU/hr

Conformance

• Approvals : C-Tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE
• Standard Warranty : 2Y Onsite 5×8
