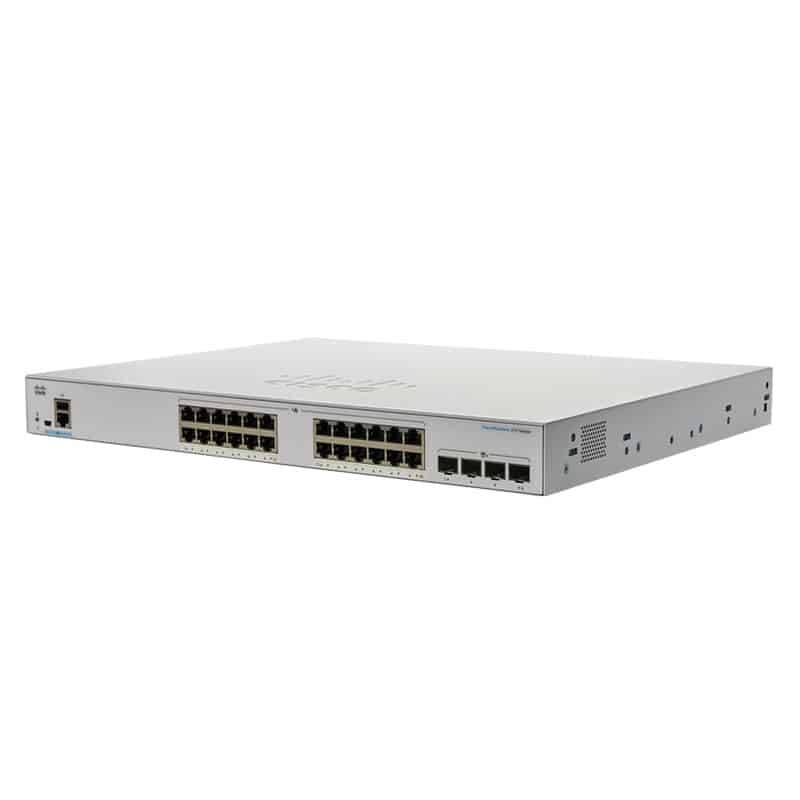

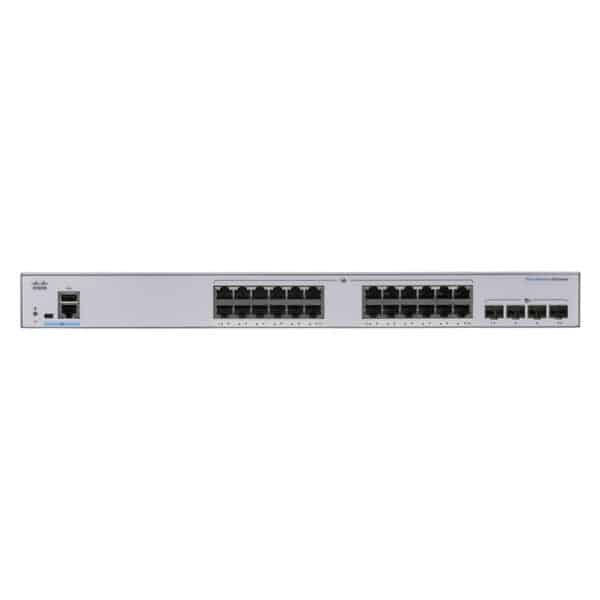

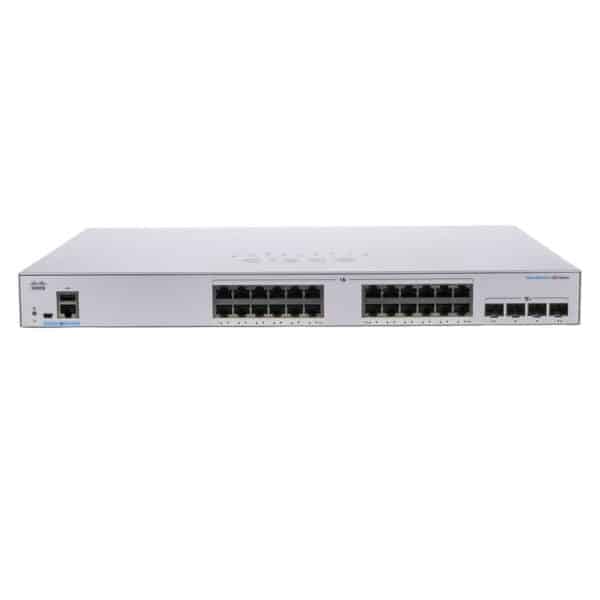

Cisco Catalyst 1000 24port GE POE 4x1G SFP Switch
รหัสสินค้า : C1000-24P-4G-L
ตรวจสอบราคา สต็อก และระยะเวลาการสั่งซื้อสินค้าทุกครั้ง
- 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks
- Uplink interfaces : 4 SFP
- CPU: ARM v7 800 MHz
- DRAM : 512 MB
- Flash memory : 256 MB
- Forwarding bandwidth : 28 Gbps
- Switching bandwidth : 56 Gbps
- Forwarding rate(64—byte L3 packets) : 41.67 Mpps
--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---
฿ 34,400.00 – ฿ 47,400.00
฿ 36,808.00 – ฿ 50,718.00 (ราคารวมภาษี)
Cisco Catalyst 1000 24port GE POE 4x1G SFP Switch
C1000-24P-4G-L Overview
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Cisco Catalyst 1000 24-port GE POE 4x1G SFP Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
C1000-24P-4G-L |
|
Description |
24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks |
|
Gigabit Ethernet ports |
24 |
|
Uplink interfaces |
4 SFP |
|
PoE+power budget |
195W |
|
Fanless |
Y |
|
Dimensions (WxDxH in inches) |
17.5 x 11.76 x 1.73 |
|
CPU |
ARM v7 800 MHz |
|
DRAM |
512 MB |
|
Flash memory |
256 MB |
|
Forwarding bandwidth |
28 Gbps |
|
Switching bandwidth |
56 Gbps |
|
Forwarding rate(64—byte L3 packets) |
41.67 Mpps |
Cisco Catalyst 1000 24-port GE POE 4x1G SFP Product Details
The Cisco Catalyst 1000 Series Switches provides these features:
* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
* Perpetual PoE+ support with a power budget of up to 740W
* CLI and/or intuitive web UI manageability options
* Network monitoring through sampled flow (sFlow)
* Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
* Compact fanless models available with a depth of less than 13 inches (33 cm)
*Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
* Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
| Brand | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| Product Type | ||||||||||||||||
|
||||||||||||||||
| Warranty | ||||||||||||||||
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Datasheet
Loading...
Reload document
Open in new tab Based on 0 reviews
Be the first to review “Cisco Catalyst 1000 24port GE POE 4x1G SFP Switch”
