-6%

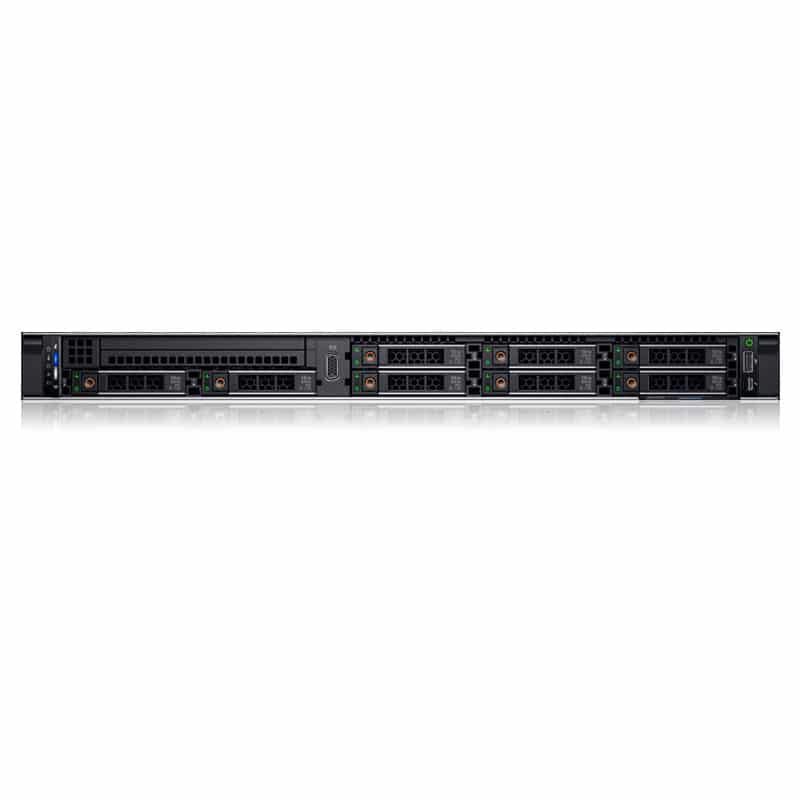

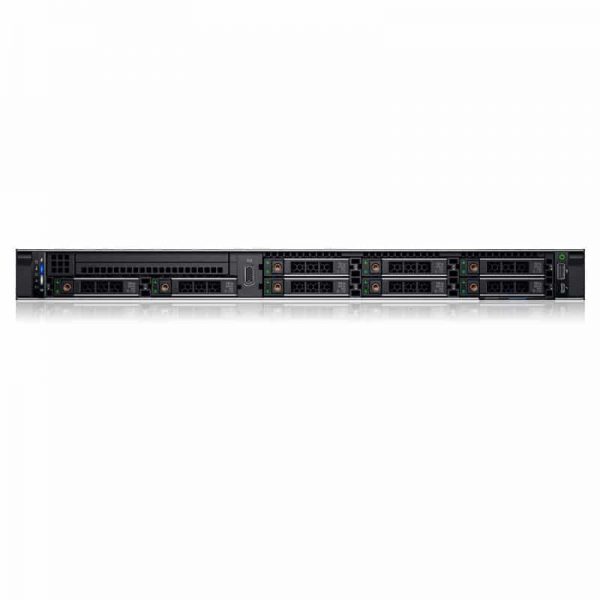

Dell-EMC-PowerEdge-R6515-8SFF, Dell EMC PowerEdge R6515 AMD EPYC 7313P (SNSR6515C), Dell EMC PowerEdge R6525 2P AMD EPYC 7313 (SNSR6525C)

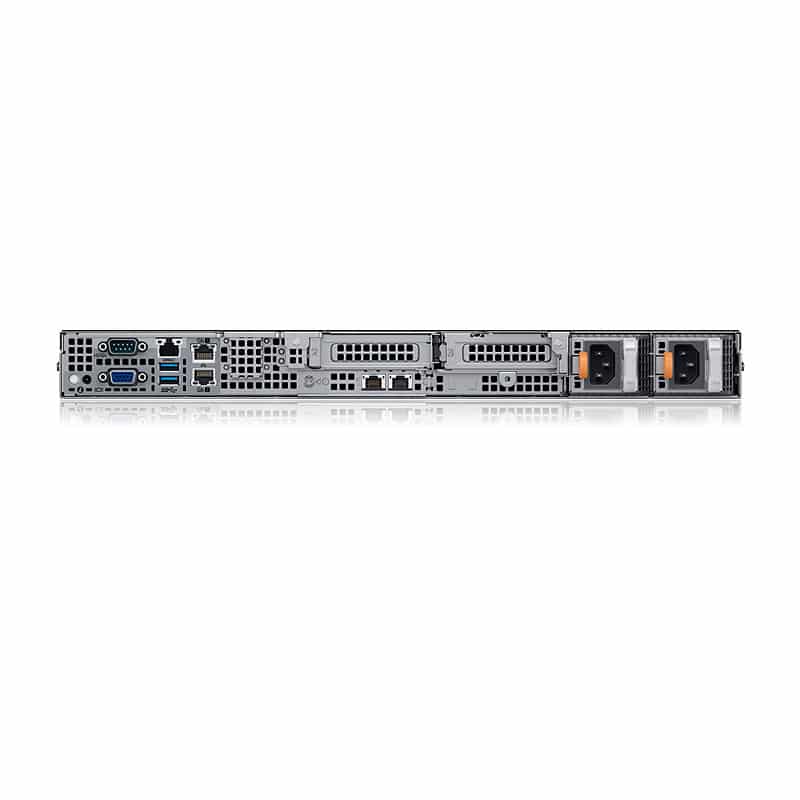

Dell-EMC-PowerEdge-R6515-Rear

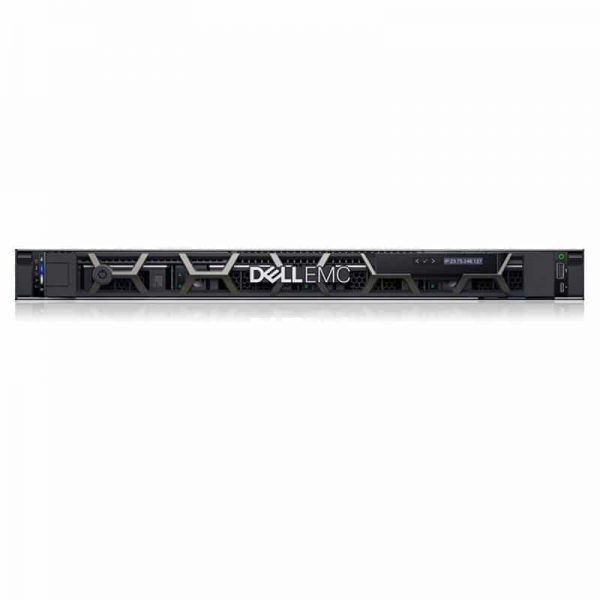

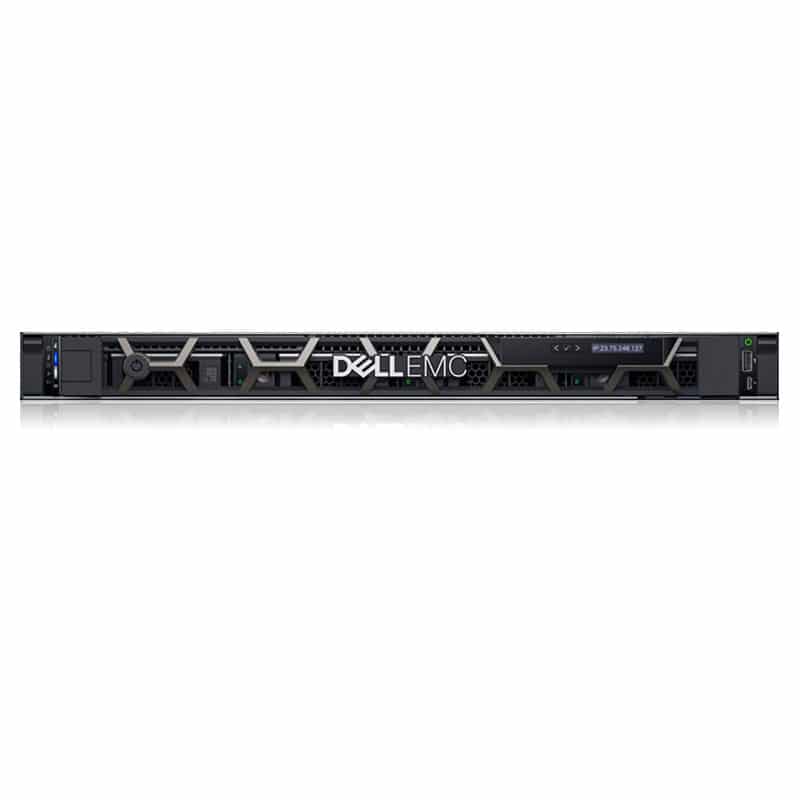

Dell-EMC-PowerEdge-R6515-Front-with-Bezel
Dell-EMC-PowerEdge-R6515-8SFF, Dell EMC PowerEdge R6515 AMD EPYC 7313P (SNSR6515C), Dell EMC PowerEdge R6525 2P AMD EPYC 7313 (SNSR6525C)
Dell-EMC-PowerEdge-R6515-Rear
Dell-EMC-PowerEdge-R6515-Front-with-Bezel
สนใจ
, , , ,

Dell EMC PowerEdge R6515 AMD EPYC 7313P 16GB H730P 2x960GB SSD RPS

รหัสสินค้า : SnSR6515C
Dell EMC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง
สนใจ
เปรียบเทียบ
  • 1U, Chassis with up to 8x 2.5″ Hard Drives
  • 1xAMD EPYC 7313P (3.0GHz, 16C/32T, 128M, 155W)
  • 16GB RDIMM, 3200MT/s, Dual Rank
  • 2 x 1Gb Onboard LOM (BCM5720) MLK V3
  • 2x 960GB SSD SATA Read Intensive 6Gbps 512e 2.5in S4520 Hot-Plug
  • PERC H730P RAID Controller, 2GB NV Cache, Mini card
  • DVD+/-RW,SATA,Internal
  • Dual, Hot Plug, Redundant Power Supply (1+1), 550W
  • LCD Bezel
  • Riser Config 1, 1×16 LP PCIe slot
  • iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced
  • 3Yr ProSupport and Mission Critical: (7×24) 4-hour Onsite Service + 3Yr Keep Your Hard Drive

รับสิทธิ์แลกซื้อ UPS ในราคา

  • APC Smart-UPS C 1000VA/600Watt 2U (SMC1000I-2UC) 18,500 บาท
  • APC Smart-UPS C 1500VA/900Watt 2U (SMC1500I-2UC) 23,500 บาท
  • APC Smart-UPS C 2000VA/1300Watt 2U (SMC2000I-2U) 31,500 บาท
  • APC Smart-UPS C 3000VA/2100Watt 2U (SMC3000RMI2U) 43,000 บาท

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)

  • Windows Server 2022 Essential (ROK) 13,000 บาท
    รองรับ 1 CPU ไม่เกิน 10 Core RAM ไม่เกิน 128GB ไม่มี Hyper-V
    ไม่สามารถเพิ่ม Remote Desktop License ได้
  • Windows Server 2022 Standard (ROK) 31,000 บาท
--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 136,000.00 ฿ 145,000.00
฿ 145,520.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง

Dell EMC PowerEdge R6515 AMD EPYC 7313P (SNSR6515C)

Dell EMC PowerEdge R6515 AMD EPYC 7313P 16GB 2x960SSD RPS (SnSR6515C)

  • 1U, Chassis with up to 8x 2.5″ Hard Drives
  • 1xAMD EPYC 7313P (3.0GHz, 16C/32T, 128M, 155W)
  • 16GB RDIMM, 3200MT/s, Dual Rank
  • 2 x 1Gb Onboard LOM (BCM5720) MLK V3
  • 2x 960GB SSD SATA Read Intensive 6Gbps 512e 2.5in S4520 Hot-Plug
  • PERC H730P RAID Controller, 2GB NV Cache, Mini card
  • DVD+/-RW,SATA,Internal
  • Dual, Hot Plug, Redundant Power Supply (1+1), 550W
  • LCD Bezel
  • Riser Config 1, 1×16 LP PCIe slot
  • iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced
  • 3Yr ProSupport and Mission Critical: (7×24) 4-hour Onsite Service + 3Yr Keep Your Hard Drive

Dell EMC PowerEdge R6515 Rack Server

Dell EMC PowerEdge R6515 Rack Server

Dual-socket performance in a single-socket 1U rack design

The Dell EMC PowerEdge R6515 is a single-socket 1U server designed to handle workloads like virtualization, HCI and OpenStack Ready Architecture.

Dell EMC PowerEdge R6515 Features

Deliver breakthrough performance, innovation and density

Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The PowerEdge R6515 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands. High-level specifications:

  • 100%* more processing cores and faster data transfer speeds with PCIe Gen4
  • 20%* more memory performance for scale out environments
  • Improved TCO with VM density and SQL performance improvements
  • High parallelism for low latency on ROBO and Dense Azure Stack HCI
  • Network Functions Virtualization (NFV)

Deliver breakthrough performance, innovation and density
Increase efficiency and accelerate operations

Increase efficiency and accelerate operations

The Dell EMC OpenManage™ systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.

  • Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
  • Simplify and centralize one to many management with the OpenManage Enterprise console.
  • Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
  • Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.*

Fortify your data center with integrated security

Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

  • Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
  • Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
  • Maintain server firmware safety with digitally signed firmware packages.
  • Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
  • Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase.
 Fortify your data center with integrated security

Dell EMC PowerEdge R6515 Tech Specs & Customization

Processor

One 2nd Gen AMD EPYC™ Processor with up to 64 cores

Operating System

Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Memoryi

DIMM Speed
Up to 3200MT/s

Memory Type
RDIMM
LDIMM

Memory Module Slots
16 DDR4 RDIMM/LRDIMM slots

Maximum RAM
RDIMM 1TB
LRDIMM 2TB

Storage

Front Bays
Up to 4 x 3.5″ hot plug SAS/SATA (HDD)
Up to 10 x 2.5″ hot plug SAS/SATA/NVMe
Up to 8 x 2.5″ hot plug SAS/SATA

Storage Controllers

Internal Controllers
PERC HBA330, H330, H730P, H740P

External Controllers (RAID)
H840, 12Gbps SAS HBA

Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SATA SSDs

Internal Dual SD Module

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0, TCM 2.0 optional
AMD Secure Memory Encryption (SME)
AMD Secure Encrypted Virtualization (SEV)

Management

Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module

Consoles
OpenManage Enterprise
OpenManage Enterprise Power Manager

Mobility
OpenManage Mobile

Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services

OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter™

OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI

Power Supplies

550W Platinum

Ports

Network Options
2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28

Front Ports
1 x Dedicated iDRAC direct micro-USB
1 x USB 2.0
1 x Video

Rear Ports
2 x 1GbE
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video

Slots

PCIe
Up to 2:
1 x Gen3 slot (1 x16)
1 x Gen4 slot (1 x16)

Bezel

Optional LCD bezel or security bezel

Form Factor

1U Rack Server

Dimensions & Weight

Height
42.8mm (1.68″)

Width
434.0mm (17.09″)

Depth
657.25mm (25.88″)

Weight
16.75 kg (36.93lb)

Rack Support

ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
SKU: SnSR6515C Categories: , , , , Tags: , ,
Brand
Brand
Product Type
Product Type

Server
Chassis Type
Form Factor

Rack 1U Server
Operating System
Operating System

No Operating System
Processor
Processor

AMD EPYC 7313P (3.0GHz, 16C/32T, 128MB Cache)

CPU Speed

CPU Core

CPU Cache

128 MB
Memory
Memory

16GB (1x16GB) DDR4 RDIMM ECC
Optical Drive
Optical Drive

DVD-RW Optical Drive
Power Supply
Power Supply

2x 550W Hot-Plug Power Supply
Warranty
Warranty

3 Years Warranty 24×7 (Part/Labor/Onsite) Service
Server
CPU Socket

1 Socket CPU Support

Storage Controller

PERC H730P Hardware (RAID-0/1/10/5/50/6/60)

Disk Bays

8x 2.5" SAS/SATA Hot-Plug

Disks

2x 960GB SSD SATA RI 6Gbps

M.2 Drives

None

System Management

iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced
More
Networking

2x 1GbE RJ-45
