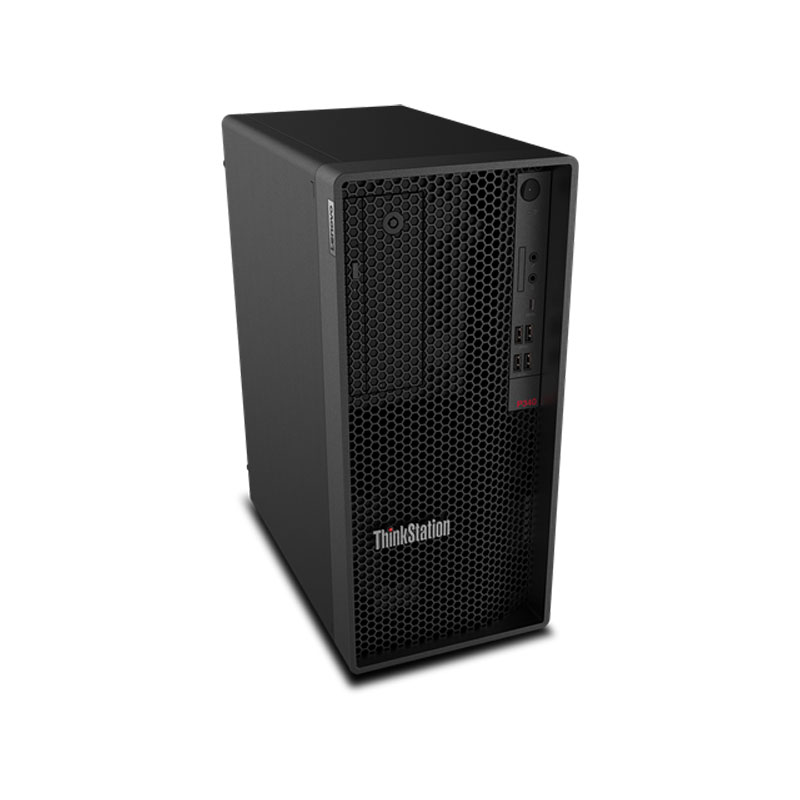

Lenovo ThinkStation P340 TW i7-10700 8GB 2TB P400 2G DOS

รหัสสินค้า : 30DHS0WD00
สถานะ

สั่งจองสินค้า


  • Intel® Core™ i7-10700 ( 16M CACHE , 2.9 GHz up to 4.8 GHz )
  • Core/Threads : 8/16
  • Cache : 16 MB Intel® Smart Cache
  • 8GB DDR4 2933 UDIMM ( max 128 GB, UDimm 4 Slots)
  • Chipset : Intel W480 chipset
  • 2TB HD 7200RPM 3.5
  • Optical : SLIM DVD RAMBO 9.0MM
  • LAN : Ethernet 10/100/1000 (No Wifi)
  • Audio : High Definition (HD) Audio, Realtek® ALC623 codec
  • Graphic : Quadro P400 2GB GDDR5 3 x miniDP
  • Expandable : 2x USB 3.2 Gen 1, 2x USB 2.0, 4x USB 3.2 Gen 2 ,1x USB-C 3.2 Gen 1 ,1x headphone / microphone combo jack (3.5mm) ,1x microphone (3.5mm) ,1x serial (9-pin) ,1x Ethernet (RJ-45) ,1x line-out (3.5mm) ,2x DisplayPort™, USB-Keyborad , USB-Mouse
  • OS : DOS
  • Warranty: 3 Year Onsite


--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 23,400.00 ฿ 24,500.00
฿ 25,038.00 (ราคารวมภาษี)

สั่งจองสินค้า

Lenovo ThinkStation P340 TW i7-10700 8GB 2TB DOS (30DHS0WD00)

Lenovo ThinkStation P340 TW i7-10700 8GB 2TB Quadro P400 2G DOS (30DHS0WD00)

  • Processor : Intel® Core™ i7-10700 ( 16M CACHE , 2.9 GHz up to 4.8 GHz )
  • Core/Threads : 8/16
  • Cache : 16 MB Intel® Smart Cache
  • Memory : Std/Max 8GB DDR4 2933 UDIMM ( max 128 GB, UDimm 4 Slots)
  • Chipset : Intel W480 chipset
  • Harddisk : 2TB HD 7200RPM 3.5
  • Optical : SLIM DVD RAMBO 9.0MM
  • LAN : Ethernet 10/100/1000 (No Wifi)
  • Audio : High Definition (HD) Audio, Realtek® ALC623 codec
  • Graphic : Quadro P400 2GB GDDR5 3 x miniDP
  • Expandable : 2x USB 3.2 Gen 1, 2x USB 2.0, 4x USB 3.2 Gen 2 ,1x USB-C 3.2 Gen 1 ,1x headphone / microphone combo jack (3.5mm) ,1x microphone (3.5mm) ,1x serial (9-pin) ,1x Ethernet (RJ-45) ,1x line-out (3.5mm) ,2x DisplayPort™, USB-Keyborad , USB-Mouse
  • OS : DOS
  • Warranty: 3 Year Onsite

Lenovo ThinkStation Features



This workstation is a workhorse

Cutting-edge performance comes standard on the ThinkStation P340 Tower. The latest Intel® Xeon® or Intel® Core™ vPro™ processors fuel even the most demanding tasks. Add in dual M.2 PCIe storage with RAID for a powerful combination.

VR Ready

The ThinkStation P340 Tower workstation is VR ready, supporting up to NVIDIA® Quadro RTX™ 5000 graphics. This entry-level system lets you create truly immersive virtual reality experiences at a low cost.





Multiple display support

With up to three DP ports and support for up to 11 independent displays, the P340 Tower workstation is a great choice for CAD design, finance, health care, education, and more. It boasts ISV certifications from all the major vendors, including Autodesk®, Bentley®, Dassault®, PTC®, and Siemens®.



Rugged, secure, & expandable

Lenovo’s legendary reliability ensures the P340 Tower workstation is built to last. Your data will remain safe, too: The integrated suite of ThinkShield security solutions includes discrete Trusted Platform Module (dTPM) to encrypt your data. And easy component access means you can expand as your business grows.







Lenovo ThinkStation Tech Specs

Processor
  • Up to Intel® Xeon® W-1290P with vPro™ (3.7GHz, up to 5.2GHz with Turbo Boost, 10 cores, 20MB Cache)
  • Up to 10thth Gen Intel® Core™ i9-10900K with vPro™ (3.7GHz, up to 5.2GHz with Turbo Boost, 10 cores, 20MB Cache)
Operating System
  • Windows 10 Pro for Workstations
  • Windows 10 Pro
  • Windows 10 Home
  • Ubuntu® Linux®
  • Redhat® Linux® (certified)
Graphics Up to NVIDIA® Quadro RTX™ 5000
Chipset Intel® W480
Memory Up to 128GB
Storage Up to 4 x 2TB M.2 PCIe SSD, and
Up to 2 x 6TB 3.5” HDD or up to 2 x 1TB 2.5” SSD
RAID M.2: 0/1
SATA: 0/1/5/10
Connectivity Intel AX201 AC Wi-Fi + Bluetooth™ 5.0
Security
  • Trusted Platform Module (TPM 2.0)
  • Self-healing BIOS
  • Supervisor, SMP and power-on passwords
  • Electronic lock support
  • Chassis intrusion detection
  • UEFI secure boot support
  • HDD password protection for HDD Data
  • Windows UEFI firmware update support
  • Device Guard Support
  • Optional: Access panel lock, Kensington lock, pad lock, BIOS guard, boot guard

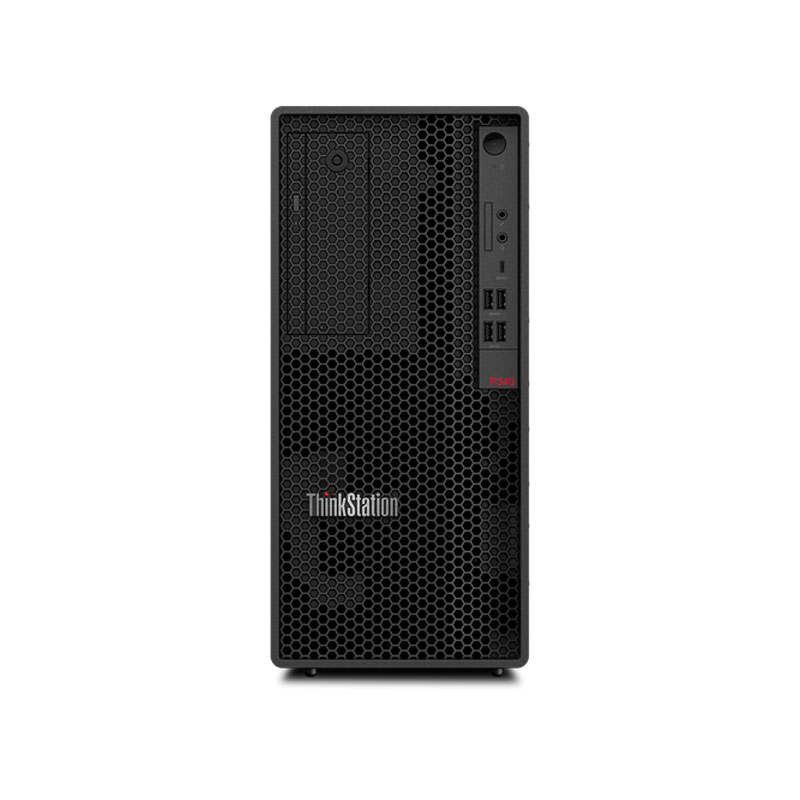

Ports & Slots Front:

  • 2 x USB 3.2 Gen 2 Type-A
  • 2 x USB 3.2 Gen 1 Type-A
  • USB 3.2 Gen 1 Type-C
  • Audio jack
  • Mic jack

Rear:

  • 2 x USB 2.0 Type-A
  • 2 x USB 3.2 Gen 1 Type-A
  • Audio (line out)
  • 2 x Display Port (3rd DP optional)
  • RJ45 (1GB Ethernet)
  • Serial port (2nd serial optional)
Explansion Slots
  • PCIe 3.0 x16
  • PCIe 3.0 x1
  • PCIe 3.0 x4
Dimensions (H x W x D) 6.7″ x 12.4″ x 14.8″ / 170mm x 315.35mm x 376mm
Weight Max configuration: 20.7lbs / 9.4kg
ISV Certifications
  • Altair® HyperWorks
  • ANSYS® ANSYS
  • Autodesk® Alias/VRED, AutoCAD, Inventor, Revit
  • Avid® Media Composer
  • Bentley® MicroStation
  • Dassault® 3DEXPERIENCE, SOLIDWORKS
  • Nemetschek® Vectorworks
  • PTC Creo®
  • Siemens® NX, Solid Edge, Teamcenter, Tecnomatix
  • Barco Medical Displays
  • McKesson Medical Imaging
Green Certifications
  • ENERGY STAR® 8.0
  • EPEAT™
  • GREENGUARD
  • RoHS Compliant
  • 80 PLUS Platinum (500W)
  • 80 PLUS Gold (300W)
Power Supply Unit
  • 300W (90% efficient)
  • 500W (92% efficient)

Lenovo ThinkStation Ports

ThinkStation P340 Tower workstation ports
  • 1. Power button
  • 2. Optional: Slim DVD ROM
  • 3. 3-in-1 card reader
  • 4. Mic
  • 5. Headphone / mic jack
  • 6. USB 3.2 Gen 1 Type-C
  • 7. 2 x USB 2.0 Type-A
  • 8. 2 x USB 3.2 Gen 1 Type-A
  • 9. Serial
  • 10. Audio (line out)
  • 11. 2 x Display Port™
  • 12. Optional: PS/2
  • 13. Optional: HDMI/DisplayPort™
  • 14. RJ45 (1GB Ethernet)
  • 15. 2 x USB 3.2 Gen 1 Type-A
  • 16. 2 x USB 2.0 Type-A
  • 17. Optional: PCIe card slots (varies with configuration)
