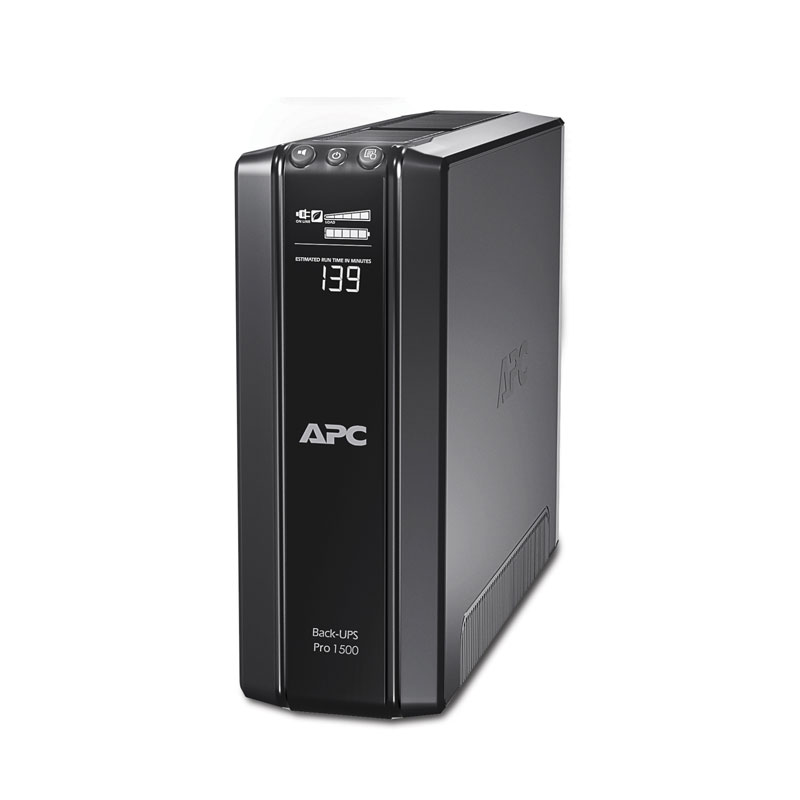

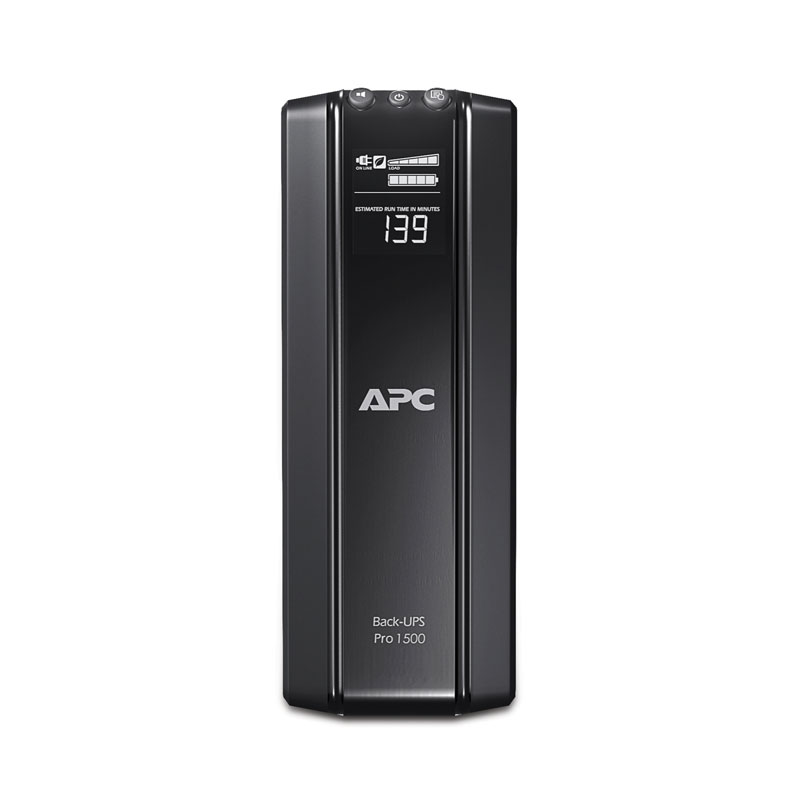

APC Back-UPS Pro 1500VA/865W 230V LCD Display

รหัสสินค้า : BR1500GI
APC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Output power capacity 865Watts / 1.5 kVA
  • Max Configurable Power (Watts) 865Watts / 1.5 kVA
  • Nominal Output Voltage 230V
  • Output Frequency (sync to mains) 50/60Hz /- 3 Hz
  • Load Crest Factor 3 : 1
  • Topology Line Interactive
  • Waveform type Stepped approximation to a sinewave
  • เต้าเสียบ IEC, มี auto shutdown software, มีหน้าจอ LCD
  • ไม่มีสาย Input power cord
  • 3 Years Warranty Onsite 8×5

--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 15,000.00 ฿ 17,000.00
฿ 16,050.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


APC Power-Saving Back-UPS Pro 1500 230V (BR1500GI)

APC Power-Saving Back-UPS Pro 1500 230V (BR1500GI)

APC Power-Saving Back-UPS Pro 1500, 230V

Output

  • Output power capacity : 865Watts / 1.5 kVA
  • Max Configurable Power (Watts) : 865Watts / 1.5 kVA
  • Nominal Output Voltage : 230V
  • Output Frequency (sync to mains) : 50/60Hz /- 3 Hz
  • Load Crest Factor : 3 : 1
  • Topology : Line Interactive
  • Waveform type : Stepped approximation to a sinewave

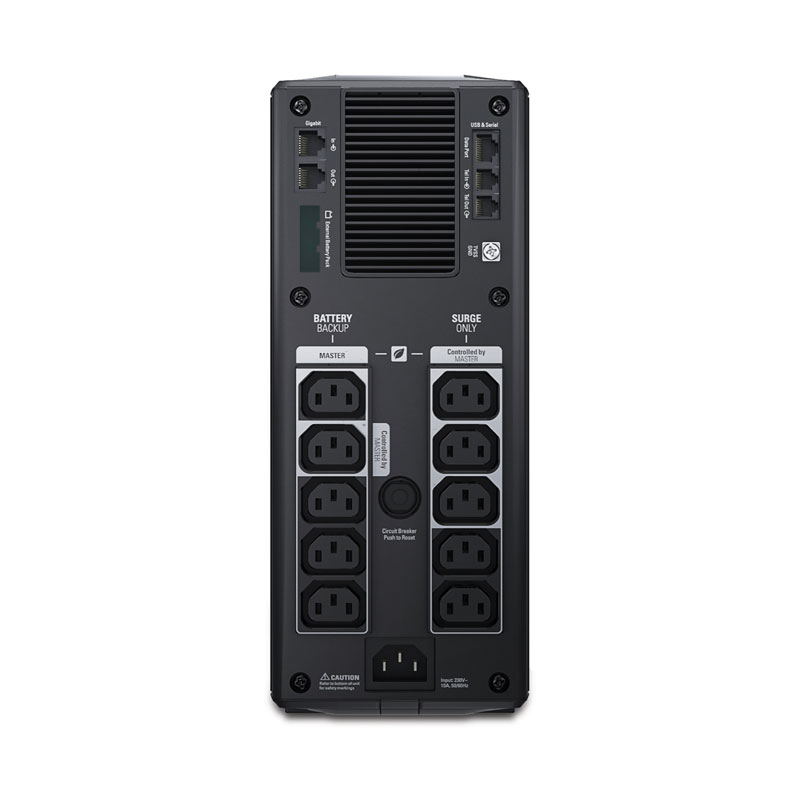

  • Output Connections : (5) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) (5) IEC 320 C13 (selector_surgetitle)
  • Transfer Time : 10ms typical : 12ms maximum

Input

  • Nominal Input Voltage : 230V
  • Input frequency : 50/60 Hz /- 3 Hz (auto sensing)
  • Input Connections : IEC-320 C14
  • Input voltage range for main operations : 176 – 294V
  • Input voltage adjustable range for mains operation : 156 – 300V
  • Number of Power Cords : 1

Batteries & Runtime

APC Back-UPS Pro 1500VA 865Watt

Communications & Management

  • Interface Port(s) : Optional Simple Signalling RS232 cable , USB
  • Control panel : Multi-function LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating : 441Joules
  • Data Line Protection : Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line – 10/100/1000 Base-T Ethernet (RJ-45 connector)
  • Filtering : Full time multi-pole noise filtering :10% of IEEE surge let-thgouh : zero clamping response time: instantaneous

Physical

  • Maximum Height : 301mm , 30.1cm
  • Maximum Width : 112mm , 11.2cm
  • Maximum Depth : 380mm , 38.0cm
  • Net Weight : 12.7kg
  • Shipping weight : 14.3kg
  • Shipping Height : 387mm , 38.7cm
  • Shipping Width : 238mm , 23.8cm
  • Shipping Depth : 488mm , 48.8cm
  • Color : Black
  • Master Carton Units : 1.0
  • Units per Pallet : 20.0
  • SCC Codes : 1073130426874 8

Environmental

  • Operating Environment : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 %
  • Operating Elevation : 0-9000meters
  • Storage Temperature : -15 – 45 ?C
  • Storage Relative Humidity : 0 – 95 %
  • Storage Elevation : 0-15000meters
  • Audible noise at 1 meter from surface of unit : 45.0dBA

Conformance

  • Approvals : A-tick, C-tick, CE, ENERGY STAR (EU), GOST, GS Mark, Telepermit, TUV
  • Equipment protection policy : Lifetime : 200000 AUD, Lifetime : 150000 Euros, Lifetime : 75000 GBP
  • Standard warranty : 2 years repair or replace, 3 years repair or replace for European Union countries

APC Back-UPS Pro 1500VA 865Watt

Sustainable Offer Status

  • RoHS : Compliant
  • REACH REACH : Contains No SVHCs
  • PEP : Available in Documentation tab
  • EOLI : Available in Documentation tab
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

1500 VA

UPS Watts

865 Watts

UPS Application

Computer and Peripheral

UPS Topology

UPS Power Factor

0.58

UPS Full Load Backup Time

4 min

UPS Half Load Backup Time

12 min

UPS External Battery

รองรับการต่อ Battery เพิ่ม

UPS Max Battery Pack Support

1 Pack

UPS Network Card Support

Not Support

UPS Software

PowerChute Personal Edition

UPS Warranty

3 Years carry-in
