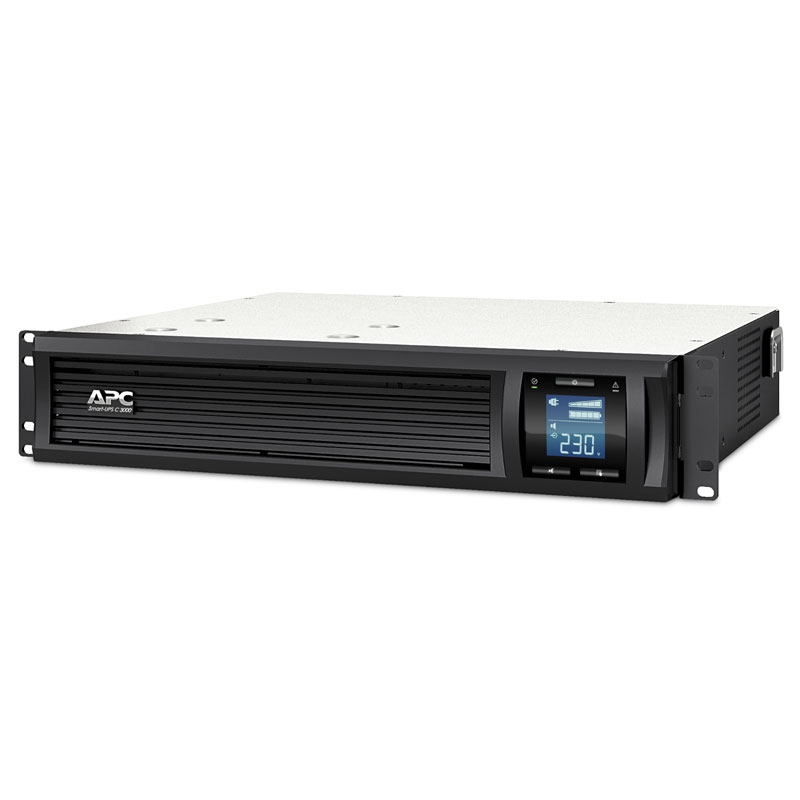

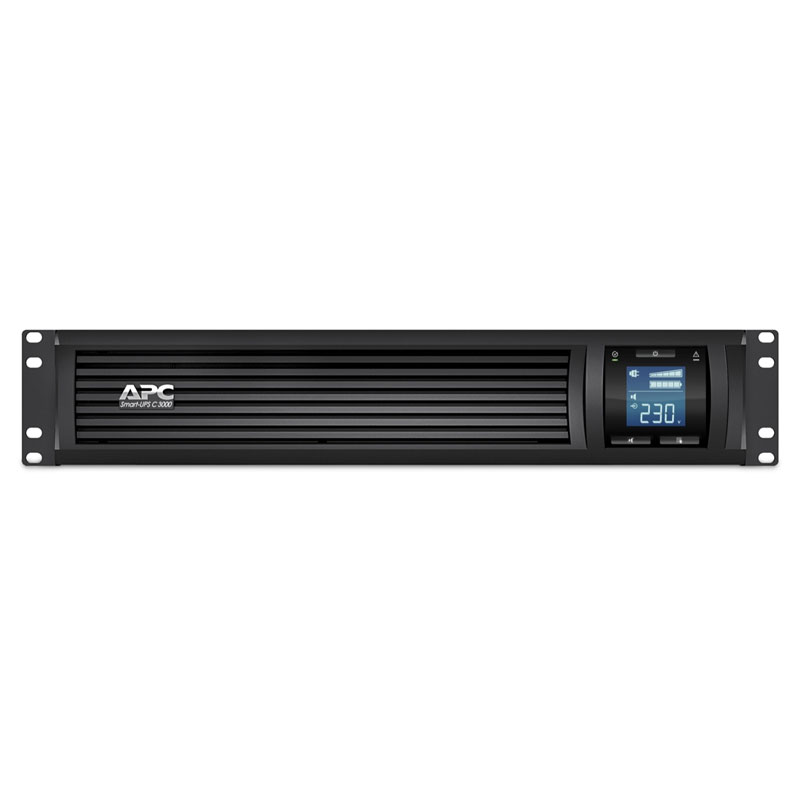

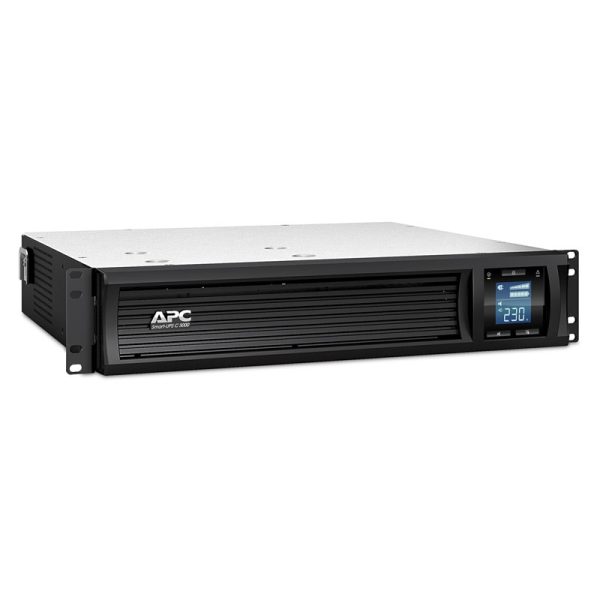

APC Smart-UPS C 3000VA 2U Rack LCD 230V

รหัสสินค้า : SMC3000RMI2U
APC
Availability:

In stock


  • Output power capacity : 3000VA / 2100Watts
  • Nominal Output Voltage : 230V
  • Topology : Line Interactive
  • Waveform type : Sine wave
  • Transfer Time : 6ms typical
  • Output Connections : (8) IEC 320 C13
  • 3Years Warranty On-Site Swap


--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 43,000.00 ฿ 543,000.00
฿ 46,010.00 (ราคารวมภาษี)

In stock

APC Smart-UPS C 3000VA 2U Rack LCD 230V (SMC3000RMI2U)

APC Smart-UPS C 3000VA 2U Rack LCD 230V | SMC3000RMI2U

Output

  • Output power capacity : 3000VA / 2100Watts
  • Nominal Output Voltage : 230V
  • Output Voltage Distortion : Less than 5% at full load
  • Output Frequency (sync to mains) : 50/60Hz /- 3 Hz
  • Topology : Line Interactive
  • Waveform type : Sine wave

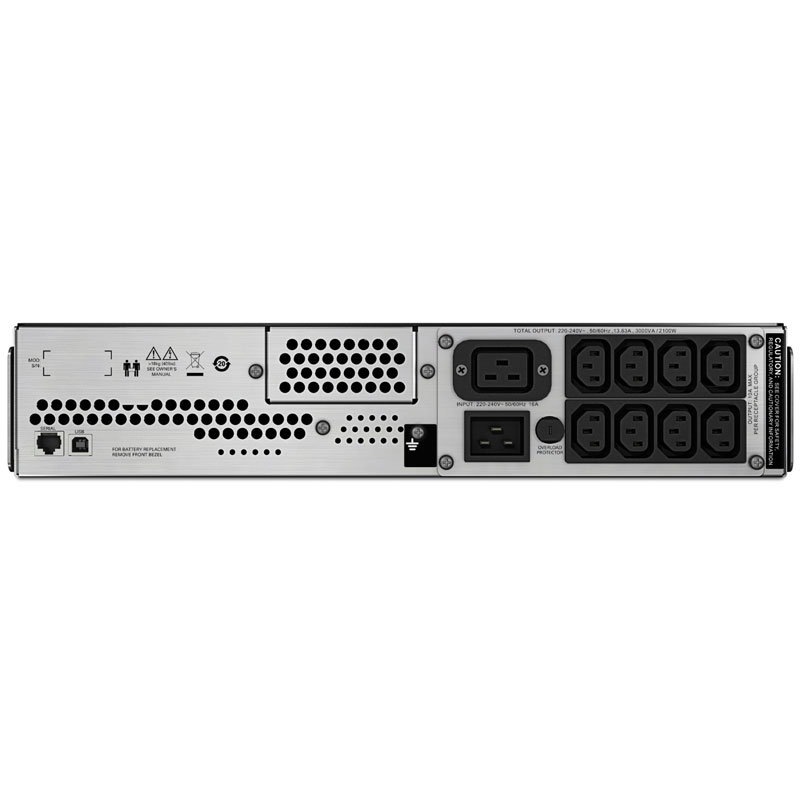

  • Output Connections : (8) IEC 320 C13 (Battery Backup)
  • Transfer Time : 6ms typical : 10ms maximum

Input

  • Nominal Input Voltage : 230V
  • Input frequency : 50/60 Hz /- 3 Hz (auto sensing)
  • Input Connections : IEC-320 C14
  • Input voltage range for main operations : 180 – 287V
  • Input voltage adjustable range for mains operation : 170 – 300V
  • Other Input Voltages : 220, 240

Batteries & Runtime

  • Run Time : View Runtime Graph
  • Extended runtime : 0
  • Number of battery filled slots : 0
  • Number of battery free slots : 0
  • Battery recharge time : 3 h
  • Number of battery replacement quantity : 1
  • Battery life : 3…5 year(s)
  • Replacement battery : APCRBC151
  • Battery power in VAH : 490 VAh runtime
  • battery charger power : 163 W rated

Communications & Management

  • Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
  • Control panel : Multifunction LCD status and control console
  • Free slots : 0
  • Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

  • Surge energy rate : 300 J
  • Noise suppression : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height 86MM, 8.6CM
  • Maximum Width 480MM, 48.0CM
  • Maximum Depth 683MM, 68.3CM
  • Rack Height 2U
  • Net Weight 42.31KG
  • Shipping weight 49.73KG
  • Shipping Height 254MM, 25.4CM
  • Shipping Width 600MM, 60.0CM
  • Shipping Depth 980MM, 98.0CM
  • Units per Pallet 8.0

Environmental

  • Operating Temperature 0 – 40 °C
  • Operating Relative Humidity 0 – 95 %
  • Operating Elevation 0-3000meters
  • Storage Temperature -15 – 45 °C
  • Storage Relative Humidity 0 – 95 %
  • Storage Elevation 0-15000meters
  • Audible noise at 1 meter from surface of unit 55.0dBA
  • Online thermal dissipation 215.0BTU/hr

Conformance

  • Approvals CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
  • Standard warranty 3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

  • RoHS Compliant
  • REACH REACH: Contains No SVHCs
  • PEP Available in Documentation tab
  • EOLI Available in Documentation tab
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

3000 VA

UPS Watts

2100 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.7

UPS Full Load Backup Time

5 min

UPS Half Load Backup Time

14 min

UPS External Battery

ไม่รองรับการต่อ Battery

UPS Max Battery Pack Support

ต่อเพิ่มไม่ได้

UPS Network Card Support

Not Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
