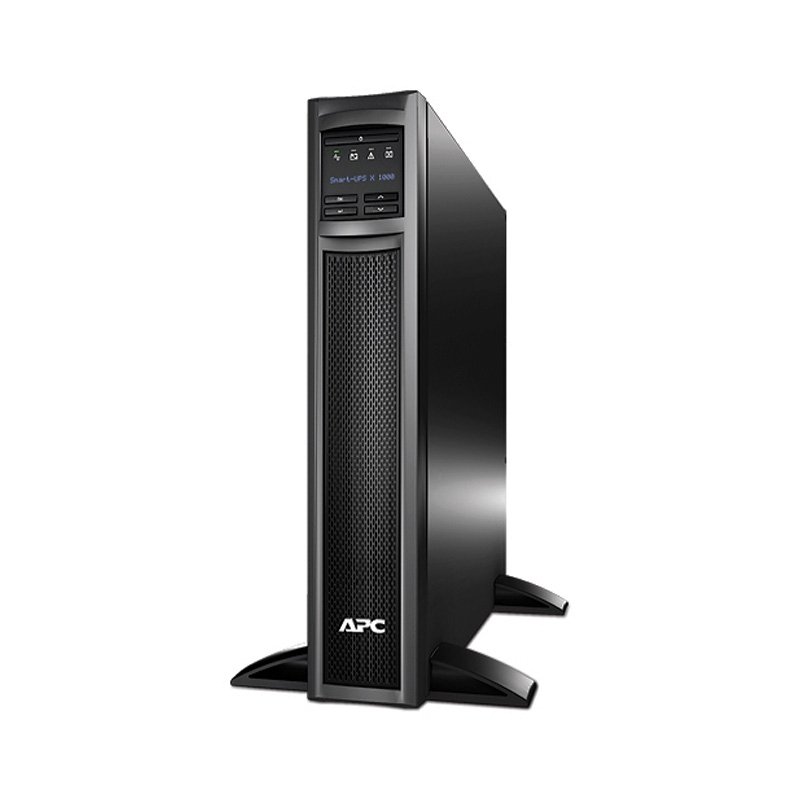

APC Smart-UPS X 1000VA 800Watt Rack/Tower LCD 230V

รหัสสินค้า : SMX1000I
APC
สถานะ

สั่งจองสินค้า


  • SMX Series, Rack/Tower convertible
  • มีหน้าจอ LCD และ SmartSlot สำหรับใส่ network card (ต้องซื้อเพิ่มเป็น option)
  • รองรับการเชื่อมต่อ battery pack สูงสุด 10 pack
  • Battery Expansion : SMX48RMBP2U
  • Output power capacity 800 Watts / 1.0 kVA
  • Max Configurable Power (Watts) 800 Watts / 1.0 kVA
  • Nominal Output Voltage 230V
  • Output Voltage Distortion Less than 5%
  • Output Frequency (sync to mains) 50/60Hz /- 3 Hz
  • Topology Line Interactive
  • Waveform type Sine wave
  • Output Connections (8) IEC 320 C13 (Battery Backup)


ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม
---> กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง <---

฿27,400.00 ฿29,300.00

สั่งจองสินค้า

APC Smart-UPS X 1000VA 800Watt Rack/Tower LCD 230V | SMX1000i

APC Smart-UPS X 1000VA Rack/Tower LCD 230V (SMX1000I)

APC Smart-UPS X 1000VA Rack/Tower LCD 230V (SMX1000I)

APC Smart-UPS X 1000VA Rack/Tower LCD 230V

Output

  • Output power capacity : 800Watts / 1.0kVA
  • Max Configurable Power (Watts) : 800Watts / 1.0kVA
  • Nominal Output Voltage : 230V
  • Output Voltage Distortion : Less than 5%
  • Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
  • Topology : Line Interactive
  • Waveform type : Sine wave
  • Output Connections : (8) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup)

Input

  • Nominal Input Voltage : 230V
  • Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections : IEC-320 C14
  • Cord Length : 1.83meters
  • Input voltage range for main operations : 160 – 286V
  • Input voltage adjustable range for mains operation : 151 – 302V
  • Number of Power Cords : 1

Batteries & Runtime

Communications & Management

  • Interface Port(s) : SmartSlot, USB
  • Control panel : Multi-function LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency Power Off (EPO) : Yes
  • Available SmartSlot™ Interface Quantity : 1

Surge Protection and Filtering

  • Surge energy rating : 600Joules
  • Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height : 89MM, 8.9CM
  • Maximum Width : 432MM, 43.2CM
  • Maximum Depth : 490MM, 49.0CM
  • Rack Height : 2U
  • Net Weight : 22.86KG
  • Shipping weight : 27.32KG
  • Shipping Height : 246MM, 24.6CM
  • Shipping Width : 589MM, 58.9CM
  • Shipping Depth : 620MM, 62.0CM
  • Color : Black
  • Units per Pallet : 8.0

Environmental

  • Operating Temperature : 0 – 45 °C
  • Operating Relative Humidity : 0 – 95 %
  • Operating Elevation : 0-3000meters
  • Storage Temperature : -15 – 45 °C
  • Storage Relative Humidity : 0 – 95 %
  • Storage Elevation : 0-15000meters
  • Audible noise at 1 meter from surface of unit : 40.0dBA
  • Online thermal dissipation : 82.0BTU/hr

Conformance

  • Approvals : CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
  • Standard warranty : 3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

  • RoHS : Compliant
  • REACH : REACH: Contains No SVHCs
  • PEP : Available in Documentation tab
  • EOLI : Available in Documentation tab
รหัสสินค้า: SMX1000I หมวดหมู่: , , , ,
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

1000 VA

UPS Watts

800 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.8

UPS Full Load Backup Time

8 min

UPS Half Load Backup Time

24 min

UPS External Battery

รองรับการต่อ Battery เพิ่ม

UPS Max Battery Pack Support

10 Pack

UPS Network Card Support

Network Card Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
