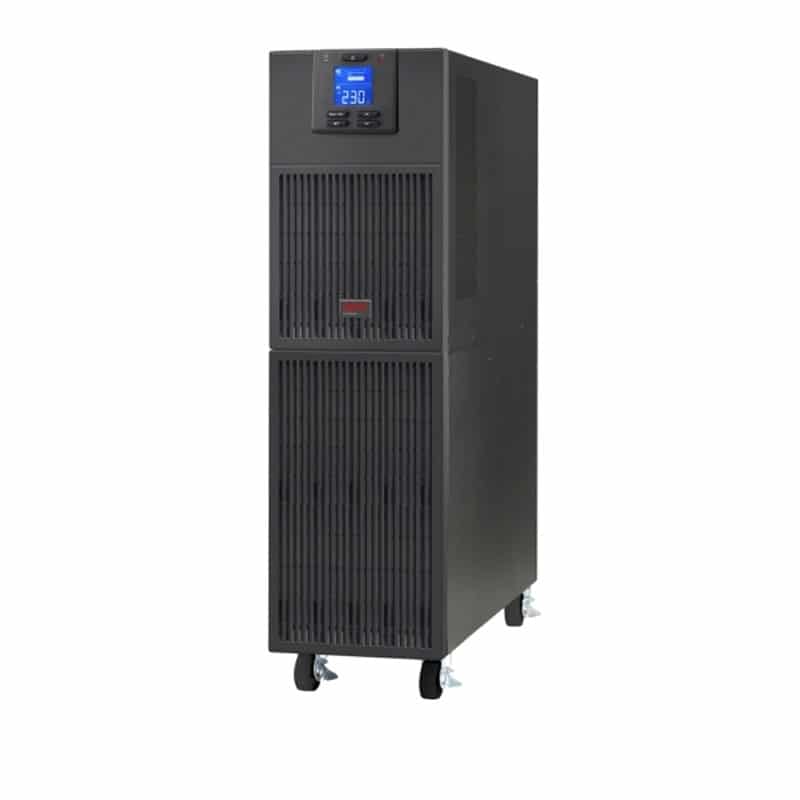

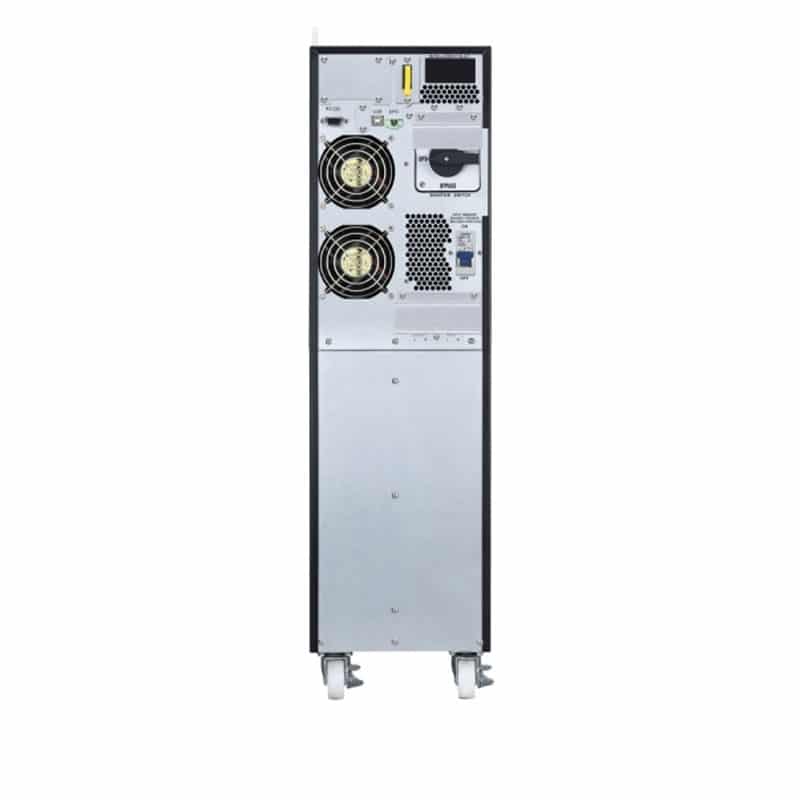

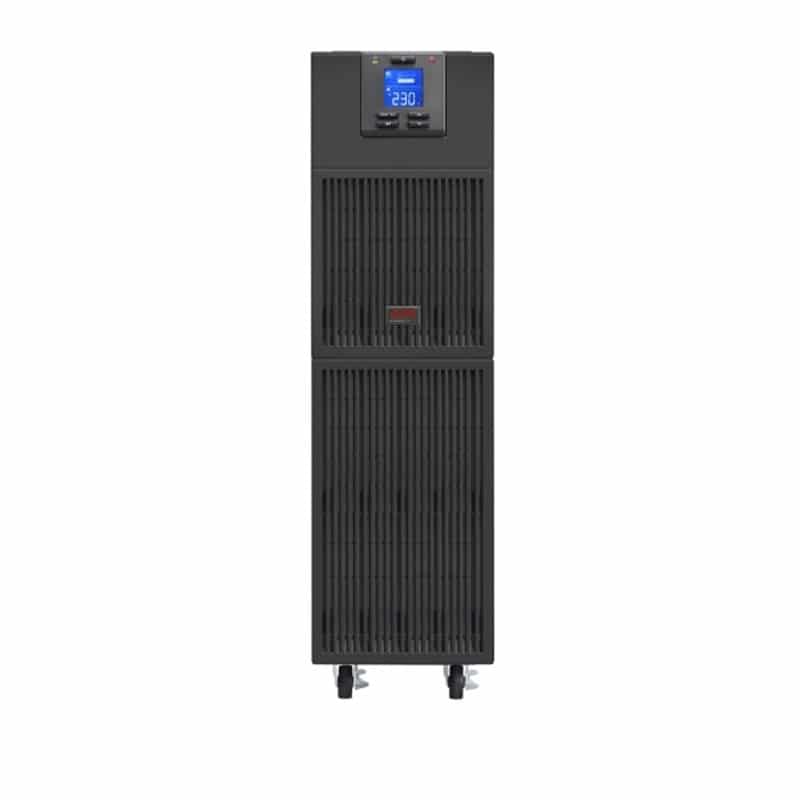

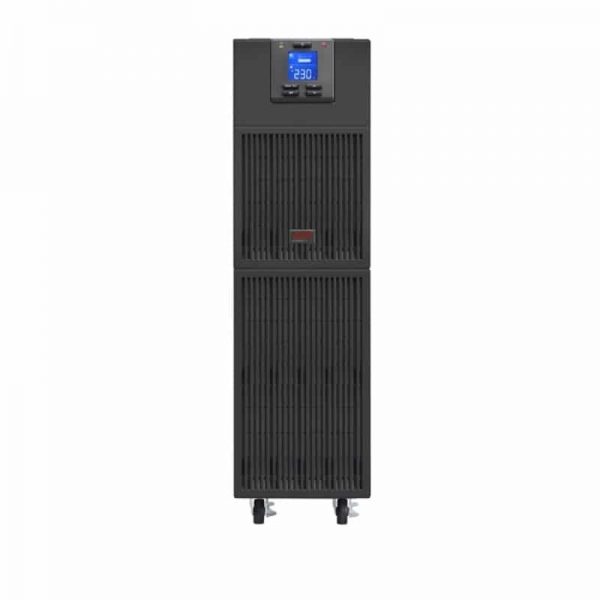

APC Easy UPS On-Line SRV 10000VA 230V (SRV10KI)
Output
- Max Configurable Power (Watts) : 10000VA / 10000 Watts
- Efficiency at Full Load : 94.0 %
- Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
- Other Output Voltages : 220, 240
- Load Crest Factor : (3 : 1)
- Topology : Double conversion online
- Waveform type : Sine wave
- Bypass : Internal bypass (automatic and manual)
Input
- Input frequency : 40 – 70 Hz
- Input voltage range for main operations : 110 – 300 Adjustable (half load), 176 – 300V
- Efficiency at Full Load : 94.0 %
- Other Input Voltages : 220, 240
Batteries & Runtime
- Battery type : Lead-acid battery
- Typical recharge time : 3hour(s)
- Battery Charge Power (Watts) : 531 Watts
- Runtime : View Runtime Graph
Communications & Management
- Interface Port(s) : DB-9 RS-232, Intelligent Smart Slot, USB
- Control panel : Multi-function LCD status and control console
- Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Emergency Power Off (EPO) : Yes
Surge Protection and Filtering
- Surge energy rating : 600Joules
Physical
- Maximum Height : 685MM, 68.5CM
- Maximum Width : 190MM, 19.0CM
- Maximum Depth : 374MM, 37.4CM
- Net Weight : 65.0KG
- Shipping weight : 77.0KG
- Shipping Height : 910MM, 91.0CM
- Shipping Width : 320MM, 32.0CM
- Shipping Depth : 580MM, 58.0CM
- Color : Black
Environmental
- Operating Temperature : 0 – 40 °C
- Operating Relative Humidity : 0 – 95 (Non-condensing) %
- Operating Elevation : 0 – 3048meters
- Storage Temperature : -15 – 60 °C
- Storage Elevation : 0 – 15240meters
- Audible noise at 1 meter from surface of unit : 58.0dBA
- Protection Class : IP20
Conformance
- Approvals : CE, IEC 62040-1-1, IEC 62040-1-2
- Standard Warranty : 2Years (manufacturer’s defect)
