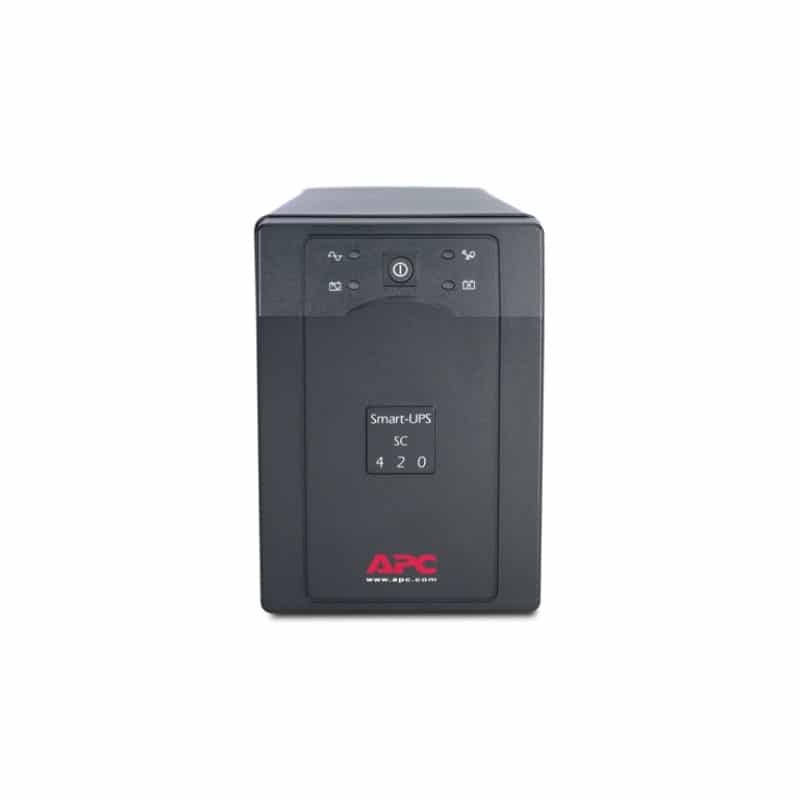

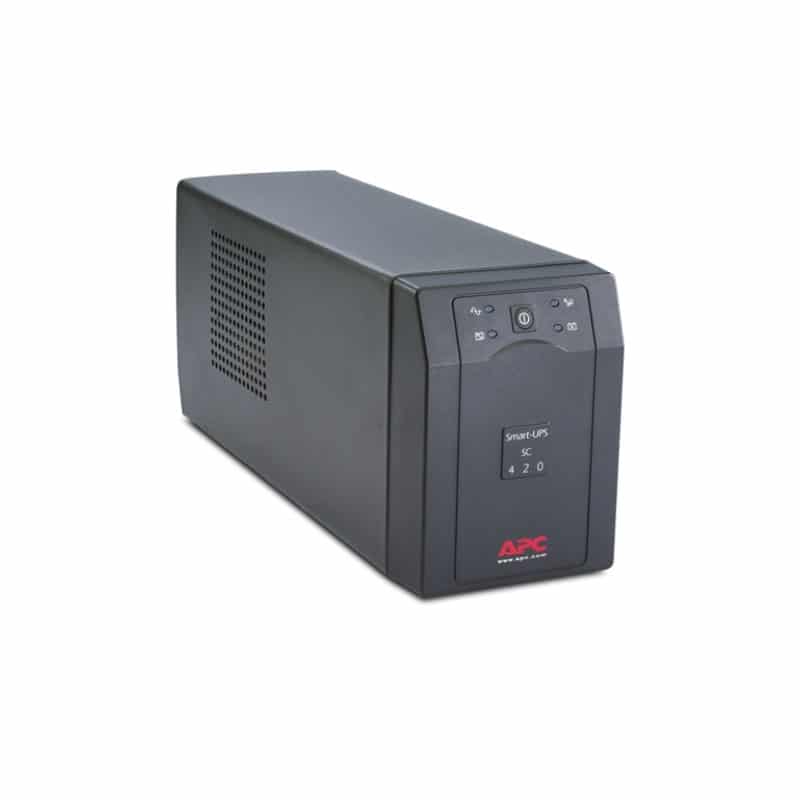

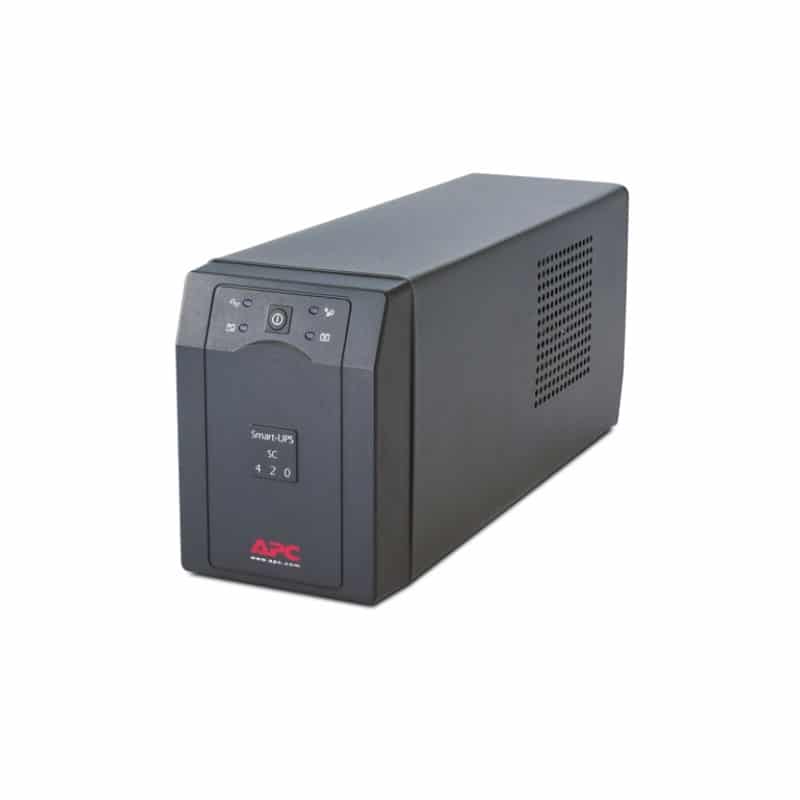

APC Smart-UPS SC 420VA 230V

รหัสสินค้า : SC420I
APC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Max Configurable Power (Watts) : 260 Watts / 420VA
  • Topology : Line interactive
  • Waveform type : Stepped approximation to a sinewave
  • Control panel : LED status display with on line : on battery : replace battery and overload indicators

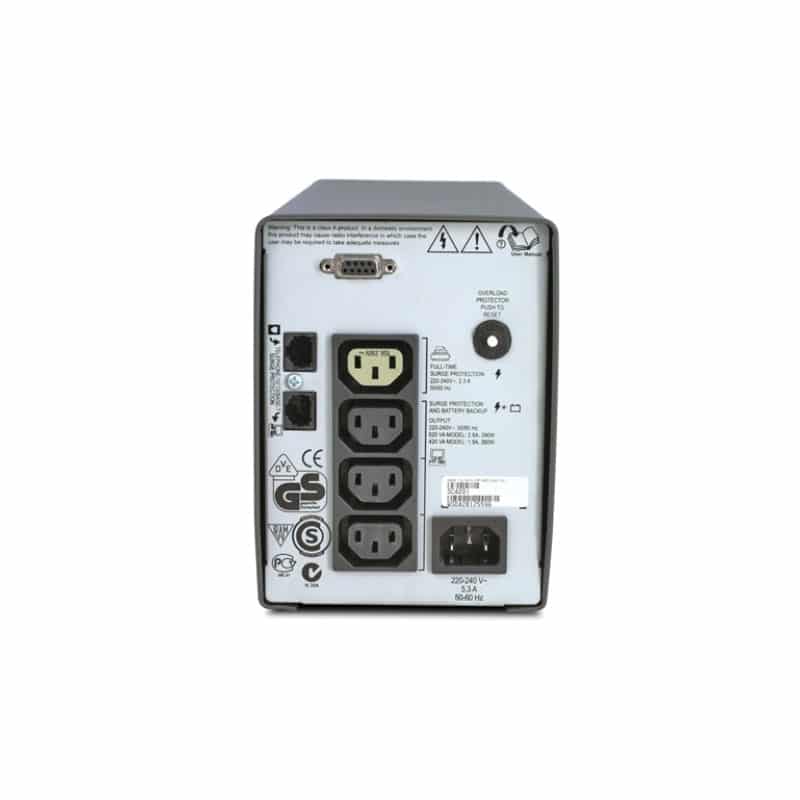

  • Output Connections
    (2) IEC Jumpers (Battery Backup)
    (3) IEC 320 C13 (Battery Backup)
    (1) IEC 320 C13 (Surge Protection)
  • Includes : CD with software, Smart UPS signalling RS-232 cable, User manual
  • 3Y Onsite 5×8




--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 8,300.00 ฿ 9,200.00
฿ 8,881.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


APC Smart-UPS SC420I

APC Smart-UPS SC420I

APC Smart-UPS SC 420VA 230V

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

  • Max Configurable Power (Watts) : 260 Watts / 420VA
  • Output Voltage Distortion : Less than 5 % at full load
  • Output Frequency (sync to mains) : 47 – 53 Hz For 50 Hz nominal Sync to mains, 57 – 63 Hz For 60 Hz nominal Sync to mains
  • Topology : Line interactive
  • Waveform type : Stepped approximation to a sinewave
  • Transfer Time : 6 ms typical : 10 ms maximum

Input

  • Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
  • Input voltage range for main operations : 195 – 265V

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 3hour(s)
  • Nominal Battery Voltage : 12 V
  • Expected Battery Life (years) : 3 – 5
  • RBC Quantity : 1
  • Battery Charge Power (Watts) : 28 Watts
  • Runtime : Runtime Graph

Communications & Management

  • Interface Port(s) : DB-9 RS-232
  • Control panel : LED status display with on line : on battery : replace battery and overload indicators
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge Protection and Filtering

  • Surge energy rating : 320Joules
  • Data Line Protection : RJ45 modem/fax/DSL/10-100 base-T protection
  • Filtering : Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical

  • Maximum Height : 168MM, 16.8CM
  • Maximum Width : 119MM, 11.9CM
  • Maximum Depth : 368MM, 36.8CM
  • Net Weight : 9.09KG
  • Shipping weight : 10.23KG
  • Shipping Height : 318MM, 31.8CM
  • Shipping Width : 262MM, 26.2CM
  • Shipping Depth : 508MM, 50.8CM
  • Color : Grey
  • Units per Pallet : 12.0

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3048meters
  • Storage Temperature : -15 – 45 °C
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 45.0dBA
  • Online thermal dissipation : 50.0BTU/hr

Conformance

  • Approvals : CE, EAC, GOST, NOM, VCCI, VDE
  • Standard Warranty : 3Y Onsite 5×8
Brand
Brand

More
UPS VA

420 VA

UPS Watts

260 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.62

UPS Full Load Backup Time

5 min

UPS Half Load Backup Time

14 min

UPS External Battery

ไม่รองรับการต่อ Battery

UPS Max Battery Pack Support

ต่อเพิ่มไม่ได้

UPS Network Card Support

Not Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
