APC Smart-UPS SC 450VA 230V – 1U Rackmount/Tower

รหัสสินค้า : SC450RMI1U
APC
สถานะ

โทรสอบถามสต็อก


  • Max Configurable Power (Watts) : 280 Watts / 450VA
  • Topology : Line interactive
  • Waveform type : Stepped approximation to a sinewave
  • Control panel : LED status display with on line : on battery : replace battery and overload indicators
  • Rack Height : 1U
  • Output Connections
    (2) IEC Jumpers (Battery Backup)
    (4) IEC 320 C13 (Battery Backup)
  • Includes : CD with software, Rack mounting brackets, Smart UPS signalling RS-232 cable, User manual
  • 3Y Onsite 5×8





ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม

฿11,700.00

โทรสอบถามสต็อก

APC Smart-UPS SC450RMI1U

APC Smart-UPS SC450RMI1U

APC Smart-UPS SC 450VA 230V – 1U Rackmount/Tower

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

  • Max Configurable Power (Watts) : 280 Watts / 450VA
  • Output Voltage Distortion : Less than 5 % at full load
  • Output Frequency (sync to mains) : 47 – 53 Hz For 50 Hz nominal Sync to mains, 57 – 63 Hz For 60 Hz nominal Sync to mains
  • Topology : Line interactive
  • Waveform type : Stepped approximation to a sinewave
  • Transfer Time : 4 ms typical : 8 ms maximum

Input

  • Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
  • Input voltage range for main operations : 151 – 302 Adjustable, 195 – 265V

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 5hour(s)
  • Nominal Battery Voltage : 12 V
  • Expected Battery Life (years) : 3 – 5
  • RBC Quantity : 1
  • Battery Charge Power (Watts) : 22 Watts

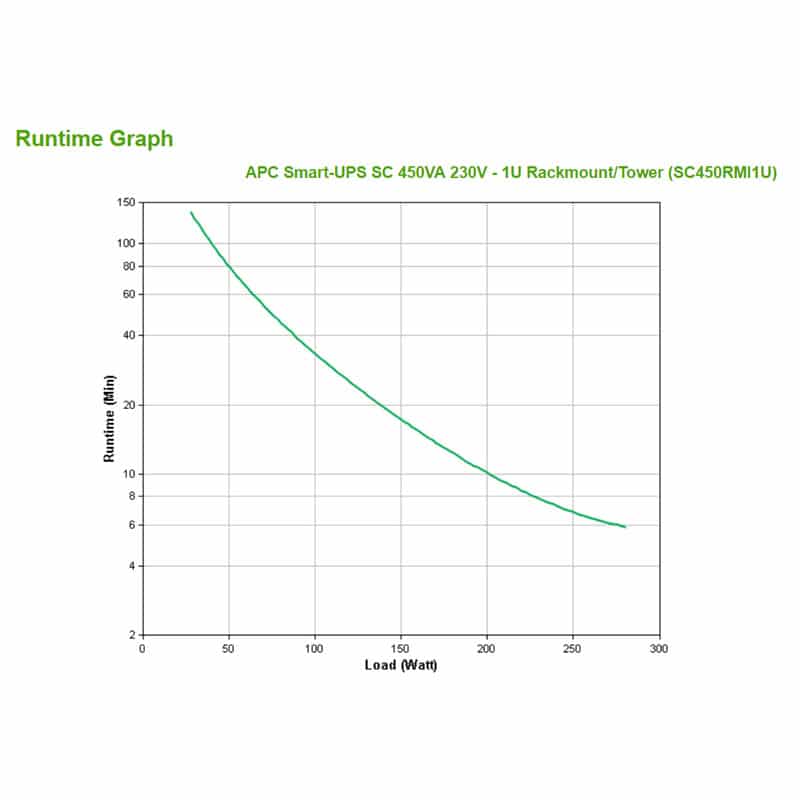

  • Runtime : Runtime Graph

Communications & Management

  • Interface Port(s) : DB-9 RS-232
  • Control panel : LED status display with on line : on battery : replace battery and overload indicators
  • Audible Alarm : Alarm when on battery : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge Protection and Filtering

  • Surge energy rating : 320Joules
  • Data Line Protection : RJ11 2-Way Modem/Fax/DSL splitter with protection (four wire dual lines), RJ45 10/100 Base-T Ethernet protection
  • Filtering : Full time multi-pole noise filtering : Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical

  • Maximum Height : 44MM, 4.4CM
  • Maximum Width : 432MM, 43.2CM
  • Maximum Depth : 383MM, 38.3CM
  • Net Weight : 10.18KG
  • Shipping weight : 11.73KG
  • Shipping Height : 164MM, 16.4CM
  • Shipping Width : 476MM, 47.6CM
  • Shipping Depth : 589MM, 58.9CM
  • Color : Grey
  • Units per Pallet : 24.0

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 %
  • Operating Elevation : 0 – 3048meters
  • Storage Temperature : -15 – 45 °C
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 38.0dBA
  • Online thermal dissipation : 38.0BTU/hr

Conformance

  • Approvals : C-Tick, CE, EAC, GOST, TISI, VDE
  • Standard Warranty : 3Y Onsite 5×8
รหัสสินค้า: SC450RMI1U หมวดหมู่: , , , ป้ายกำกับ: ,
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

450 VA

UPS Watts

280 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.62

UPS Full Load Backup Time

6 min

UPS Half Load Backup Time

19 min

UPS External Battery

ไม่รองรับการต่อ Battery

UPS Max Battery Pack Support

ต่อเพิ่มไม่ได้

UPS Network Card Support

Not Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
