Lenovo ThinkSystem ST650 V2 Intel Xeon Siver 4314 16GB 5350-8i 2×1.2TB SAS 2x750W

รหัสสินค้า : 7Z74S6UJ00
Lenovo
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Intel Xeon Silver 4314 16Core 32Thread 135W 2.4GHz 24MB Cache
  • 16GB TruDDR4 3200 MHz RDIMM
  • 2x 1.2TB SAS Hard Disk 12GB
  • ThinkSystem RAID 5350-8i PCIe 12Gb Adapter
  • (Support RAID-0/1/10/5)
  • 8 Open-Bay 2.5-inch Harddisk Slot SFF
  • No Optical Drive
  • ThinkSystem Broadcom 5720 1GbE RJ45 2-Port PCIe Ethernet Adapter
  • Toolless Slide Rail (No Cable Management Arm)
  • ThinkSystem XClarity Controller Standard to Enterprise Upgrade
  • 2X 750W High Efficiency Platinum V2 AC Power Supply
  • 3 Year Warranty On-site 24×7 Support

รับสิทธิ์แลกซื้อ UPS ในราคา

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)


--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 154,000.00 ฿ 157,200.00
฿ 164,780.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


(7Z74S6UJ00) Lenovo ST650 V2 Xeon S4314 16GB 2×1.2TB

Lenovo ThinkSystem ST650 V2 Intel Xeon Siver 4314 16GB 5350-8i 2×1.2TB SAS 2x750W (7Z74S6UJ00)

Specification

  • Intel Xeon Silver 4314 16Core 32Thread 135W 2.4GHz 24MB Cache
  • 16GB TruDDR4 3200 MHz RDIMM
  • 2x 1.2TB SAS Hard Disk 12GB
  • ThinkSystem RAID 5350-8i PCIe 12Gb Adapter
  • (Support RAID-0/1/10/5)
  • 8 Open-Bay 2.5-inch Harddisk Slot SFF
  • No Optical Drive
  • ThinkSystem Broadcom 5720 1GbE RJ45 2-Port PCIe Ethernet Adapter
  • Toolless Slide Rail (No Cable Management Arm)
  • ThinkSystem XClarity Controller Standard to Enterprise Upgrade
  • 2X 750W High Efficiency Platinum V2 AC Power Supply
  • 3 Year Warranty On-site 24×7 Support

รับสิทธิ์แลกซื้อ UPS ในราคา

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)


Lenovo ThinkSystem ST650 V2 Tower Server

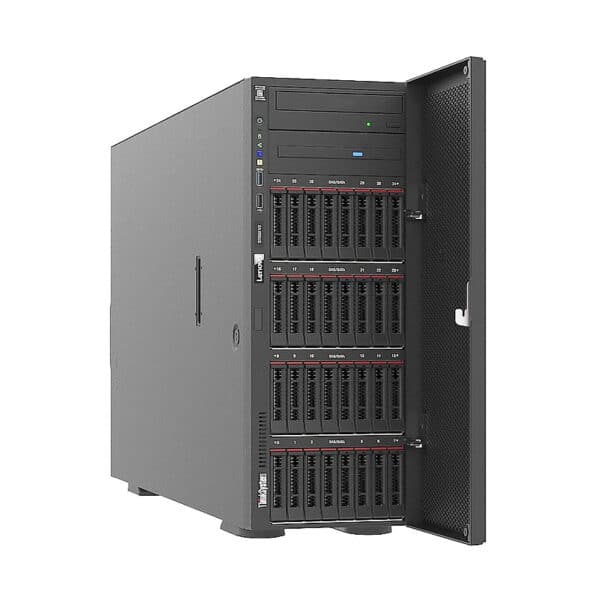

Lenovo-ThinkSystem-ST650-V2-Front-Right

Tech Specs

ATTRIBUTE SPECIFICATION
Form Factor/Height 4U rackable tower
Processors Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 250W
Drive Bays Up to 32x 2.5″ bays (including 16 NVMe bays) or 16x 3.5″ bays (including 8 NVMe bays)
Memory Up to 4TB in 32x DIMM slots using 128GB DIMMs; 3200MHz TruDDR4; Up to 16x Intel® Optane™ Persistent Memory 200 Series module (PMem), installed in combination with system memory DIMMs
Expansion Slots Up to 8x PCIe 4.0 slots plus 1x PCIe 3.1 slot (with 2x processors)
Network Interface 2x 10GBASE-T ports; 1x 1GbE dedicated management port
Ports Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support
Rear: 4x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x external diagnostics handset port, 1x serial port
HBA/RAID Support SW RAID standard; optional HW RAID up to 32 ports, or SAS HBAs up to 16 ports
Power Dual redundant AC power supplies (750W, 1100W, 1800W, 2400W) Platinum and Titanium. Energy Star 3.0 compliant.
Systems Management Lenovo XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, XClarity Energy Manager centralized server power management
OS Support Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.
Security Lenovo ThinkShield, lockable security bezel, chassis intrusion switch, TPM 1.2/2.0
Reliability Predictive Failure Analysis, hot-swap/redundant drives, fans and power supplies
Limited Warranty 1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades

Features and Benefits



Workload-optimized support

The ThinkSystem ST650 V2 represents the next wave in highly configurable tower systems to support new use cases, technology, and workload optimization for the modern enterprise. New 3rd generation Intel® Xeon® processor Scalable family CPUs offer outstanding performance and memory capacity for large database and virtual machine deployments, with support for PCIe Gen4 networking reducing data bottlenecks throughout the IT environment.

Workload-optimized support

Accelerate data insights

Accelerate data insights

ThinkSystem ST650 V2 is future proof with 8 single-width(DW), 4 double-width (DW), or a combination of 4 SW and 4 DW GPUs. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST650 V2 ideal for enterprise-class AI and VDI workloads bringing supercomputing power to the remote office.

Configuration flexibility

Significant improvements in onboard storage capabilities enable the ST650 V2 to tackle immense data growth in burgeoning IT environments, notably in remote office and edge use cases. Support for up to 16 hyper-fast NVMe drives for a total of 32x 2.5-inch drives enables rapid data ingest capabilities to address the explosion of internet of things (IoT) devices and sensors feeding data growth.

Lenovo ThinkSystem ST650 V2 Tower Server

Configuration flexibility

(7Z74S6UJ00) Lenovo ST650 V2 Xeon S4314 16GB 2×1.2TB

Brand
Brand

Product Type
Product Type

Server

Chassis Type
Form Factor

Tower Server

Operating System
Operating System

No Operarting System

Processor
Processor

Intel Xeon Silver 4314 (2.4GHz, 16C/32T, 24MB Cache)

CPU Speed

CPU Core

CPU Cache

24 MB

Memory
Memory

16GB (1x16GB) DDR4 RDIMM ECC

Optical Drive
Optical Drive

None

Power Supply
Power Supply

2x 750W Hot-Plug Power Supply

Warranty
Warranty

3 Years Warranty 24×7 (Part/Labor/Onsite) Service

Server
CPU Socket

2 Socket CPU Support

Storage Controller

ThinkSystem RAID-5350-8i (RAID-0/1/10/5)

Chassis

8x 2.5"

Disk Bays

8x 2.5" SAS/SATA Hot-Plug

Disks

2x 1.2TB 10K SAS 12Gbps

M.2 Drives

None

System Management

xClarity Controller Enterprise

ICT Spec

คอมพิวเตอร์แม่ข่ายแบบที่ 1

More
Networking

2x 1GbE RJ-45

Weight

24.5 kg
