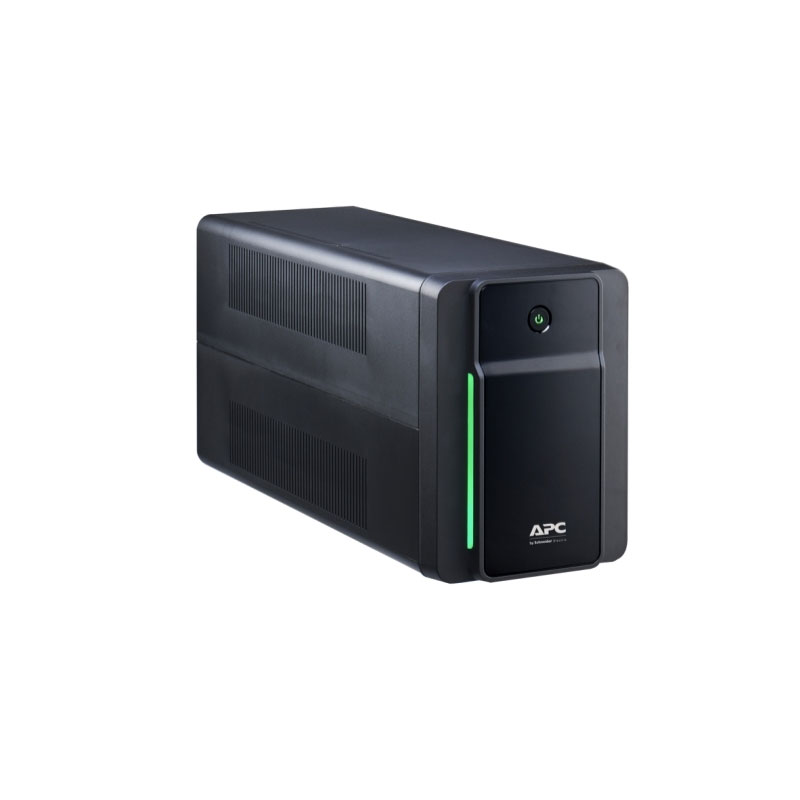

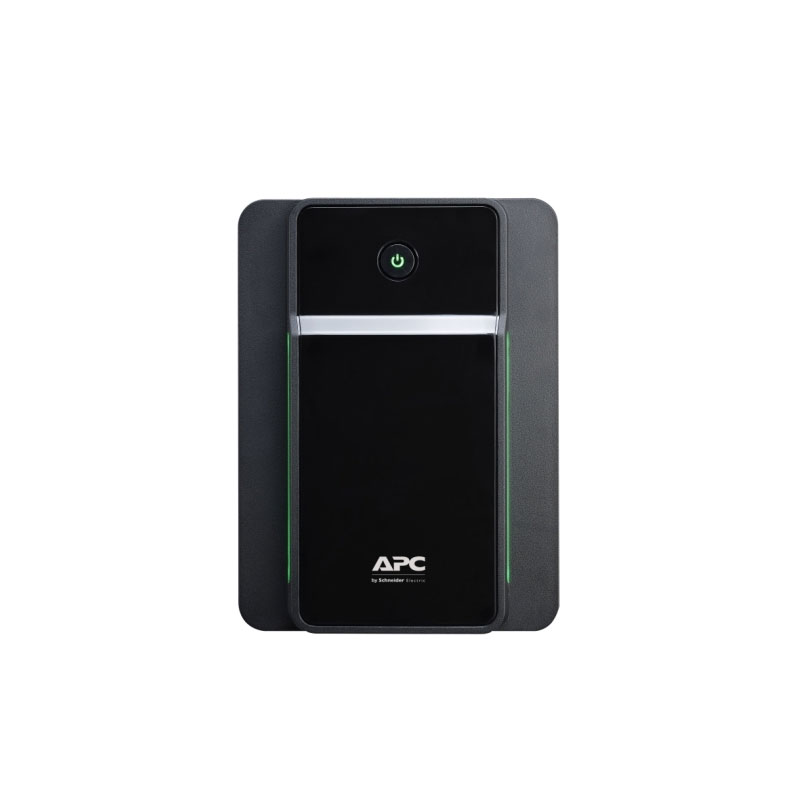

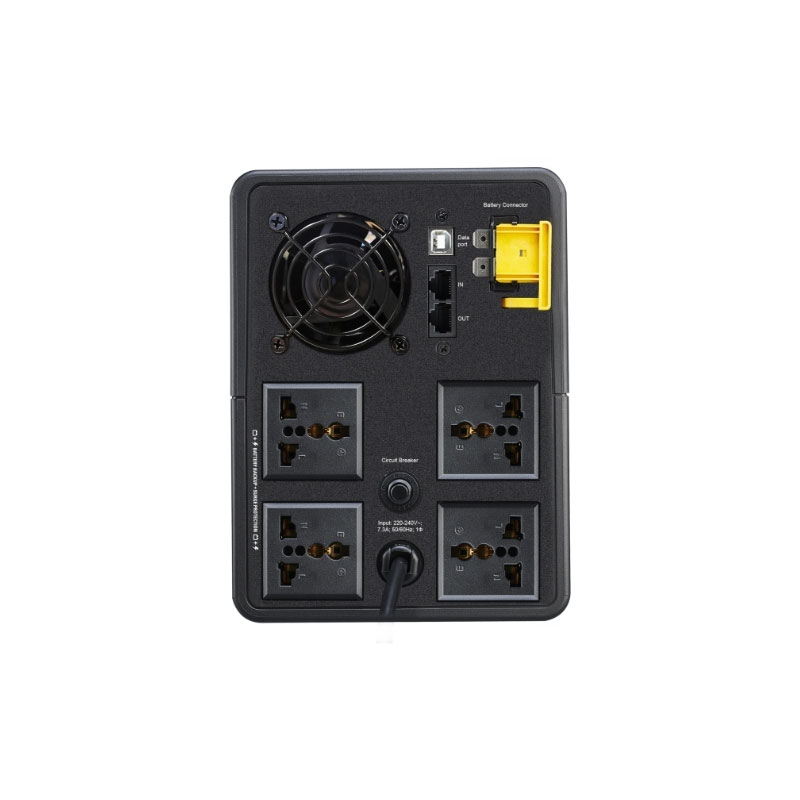

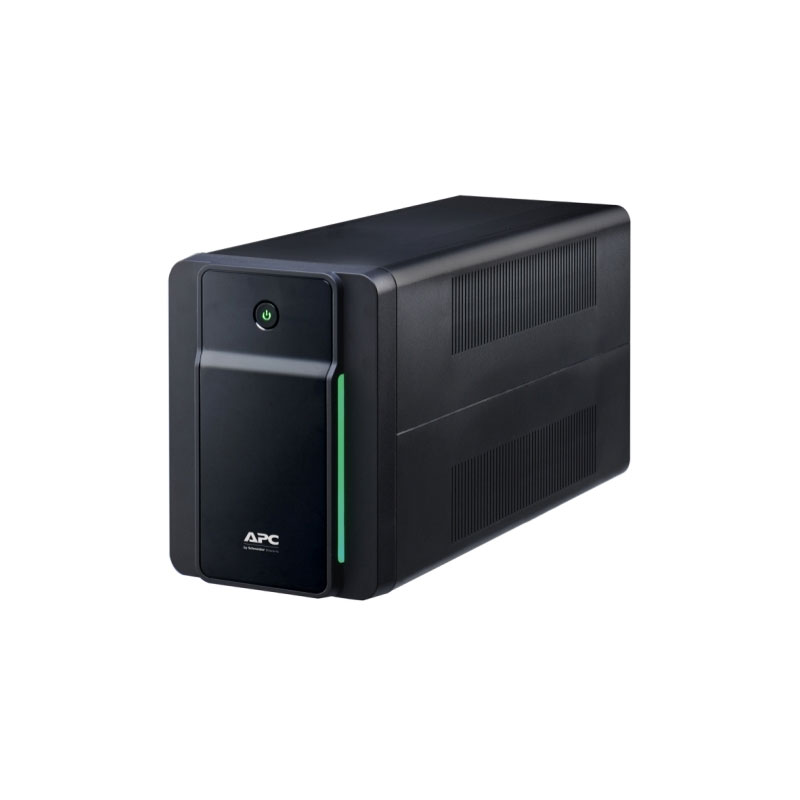

APC Back-UPS 2200VA, 230V, AVR, Universal Sockets

รหัสสินค้า : BX2200MI-MS
APC
สถานะ

โทรสอบถามสต็อก


  • Max Configurable Power (Watts) : 1.2kWatts / 2.2kVA
  • Topology : Line interactive
  • Waveform type : Stepped approximation to a sinewave
  • Control panel : LED Status display with on line : on battery
  • 2Y Onsite 5×8





ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม

฿9,400.00

โทรสอบถามสต็อก

APC Back-UPS BX2200MI-MS

APC Back-UPS BX2200MI-MS

APC Back-UPS 2200VA, 230V, AVR, Universal Sockets

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

  • Max Configurable Power (Watts) : 1.2kWatts / 2.2kVA
  • Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
  • Topology : Line interactive
  • Waveform type : Stepped approximation to a sinewave
  • Transfer Time : 6 ms typical : 10 ms maximum

Input

  • Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
  • Input voltage range for main operations : 140 – 300V
  • Number of Power Cords : 1
  • Input Power Factor at Full Load : 0.54

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 8hour(s)
  • Expected Battery Life (years) : 3 – 5
  • Battery Volt-Amp-Hour Capacity : 216
  • Runtime : Runtime Graph

Communications & Management

  • Control panel : LED Status display with on line : on battery
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering

  • Surge energy rating : 273Joules
  • Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection

Physical

  • Maximum Height : 190MM, 19.0CM
  • Maximum Width : 140MM, 14.0CM
  • Maximum Depth : 390MM, 39.0CM
  • Net Weight : 12.3KG
  • Shipping weight : 13.3KG
  • Shipping Height : 297MM, 29.7CM
  • Shipping Width : 235MM, 23.5CM
  • Shipping Depth : 495MM, 49.5CM
  • Color : Black

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3000meters
  • Storage Temperature : -15 – 40 °C
  • Storage Elevation : 0 – 3000meters
  • Audible noise at 1 meter from surface of unit : 40.0dBA
  • Protection Class : IP20

Conformance

  • Approvals : CE, EN/IEC 62040-1, EN/IEC 62040-2
  • Equipment protection policy : 50000 euros
  • Standard Warranty : 2Y Onsite 5×8
รหัสสินค้า: BX2200MI-MS หมวดหมู่: , , , ป้ายกำกับ: ,
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

2200 VA

UPS Watts

1200 Watts

UPS Application

Computer and Peripheral

UPS Topology

UPS Power Factor

0.55

UPS Full Load Backup Time

1 min

UPS Half Load Backup Time

8 min

UPS External Battery

ไม่รองรับการต่อ Battery

UPS Max Battery Pack Support

ต่อเพิ่มไม่ได้

UPS Network Card Support

Not Support

UPS Software

No Software

UPS Warranty

2Y Onsite 5×8
