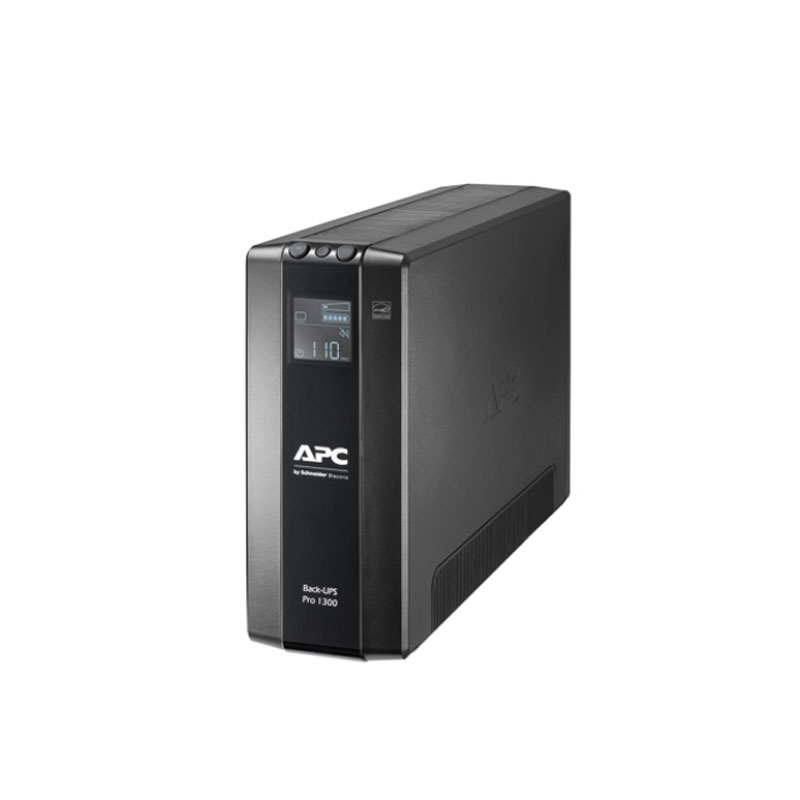

APC Back UPS Pro BR 1300VA, 8 Outlets, AVR, LCD Interface

รหัสสินค้า : BR1300MI
APC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Max Configurable Power (Watts) : 780 Watts / 1.3kVA
  • Topology : Line interactive
  • Control panel : Multifunction LCD status and control console

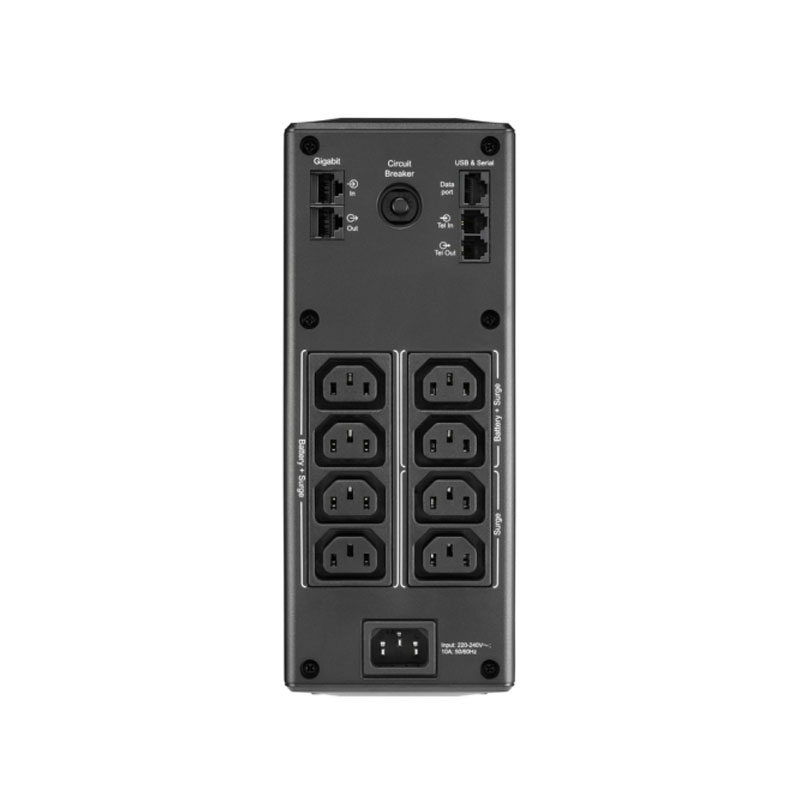

  • Output Connections
    (6) IEC 60320 C13 (Battery Backup)
    (2) IEC 60320 C13 (Surge Protection)
  • 3 Years Warranty Onsite 8×5




--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 13,000.00 ฿ 14,300.00
฿ 13,910.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


APC Back-UPS BR1300MI

APC Back-UPS BR1300MI

APC Back-UPS Pro BR 1300VA, 8 Outlets, AVR, LCD Interface

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

  • Max Configurable Power (Watts) : 780 Watts / 1.3kVA
  • Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
  • Topology : Line interactive

Input

  • Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
  • Input voltage range for main operations : 176 – 294V

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 16hour(s)
  • Nominal Battery Voltage : 24 V
  • Expected Battery Life (years) : 3 – 5
  • RBC Quantity : 1
  • Battery Charge Power (Watts) : 11 Watts
  • Runtime : Runtime Graph

Communications & Management

  • Interface Port(s) : USB
  • Control panel : Multifunction LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge Protection and Filtering

  • Surge energy rating : 509Joules
  • Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection
  • Filtering : Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous


Physical

  • Maximum Height : 100MM, 10.0CM
  • Maximum Width : 250MM, 25.0CM
  • Maximum Depth : 382MM, 38.2CM
  • Net Weight : 10.2KG
  • Shipping weight : 11.85KG
  • Shipping Height : 330MM, 33.0CM
  • Shipping Width : 485MM, 48.5CM
  • Shipping Depth : 225MM, 22.5CM
  • Color : Black
  • Master Carton Dimensions (Length x Width x Height) : 356 x 51 x 254MM
  • Master Carton Units : 1.0
  • Master Carton Weight : 12.7

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3048meters
  • Storage Temperature : -15 – 45 °C
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 45.0dBA
  • Online thermal dissipation : 22.0BTU/hr

Conformance

  • Approvals : A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI
  • Equipment protection policy : Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP
  • Standard Warranty : 3Y Onsite 5×8
SKU: BR1300MI Categories: , , , Tags: , , ,
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

1300 VA

UPS Watts

780 Watts

UPS Application

Computer and Peripheral

UPS Topology

UPS Power Factor

0.6

UPS Full Load Backup Time

2 min

UPS Half Load Backup Time

11 min

UPS External Battery

ไม่รองรับการต่อ Battery

UPS Max Battery Pack Support

ต่อเพิ่มไม่ได้

UPS Network Card Support

Not Support

UPS Software

PowerChute Personal Edition

UPS Warranty

3Y Onsite 5×8
