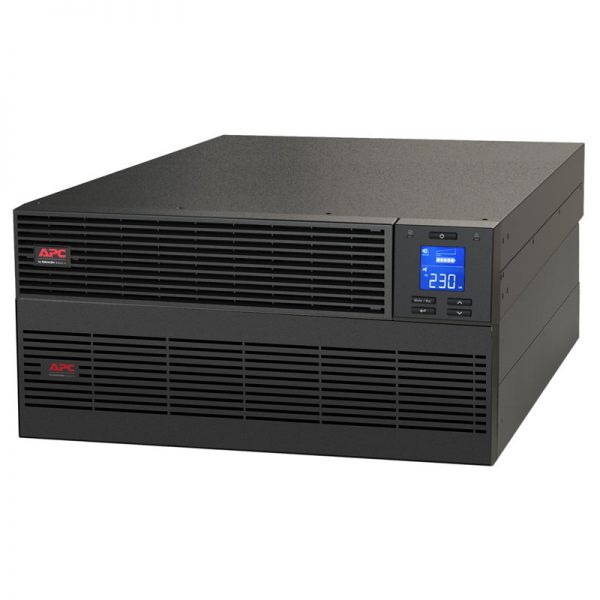

APC Easy UPS On-Line SRV RM 10000VA 230V with External Battery Pack, with Rail kit

รหัสสินค้า : SRV10KRILRK
APC
สถานะ

โทรสอบถามสต็อก


  • Max Configurable Power (Watts) : 10.0kWatts / 10.0kVA
  • Other Output Voltages : 220, 240
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Rack Height : 5U
  • Control panel : Multifunction LCD status and control console

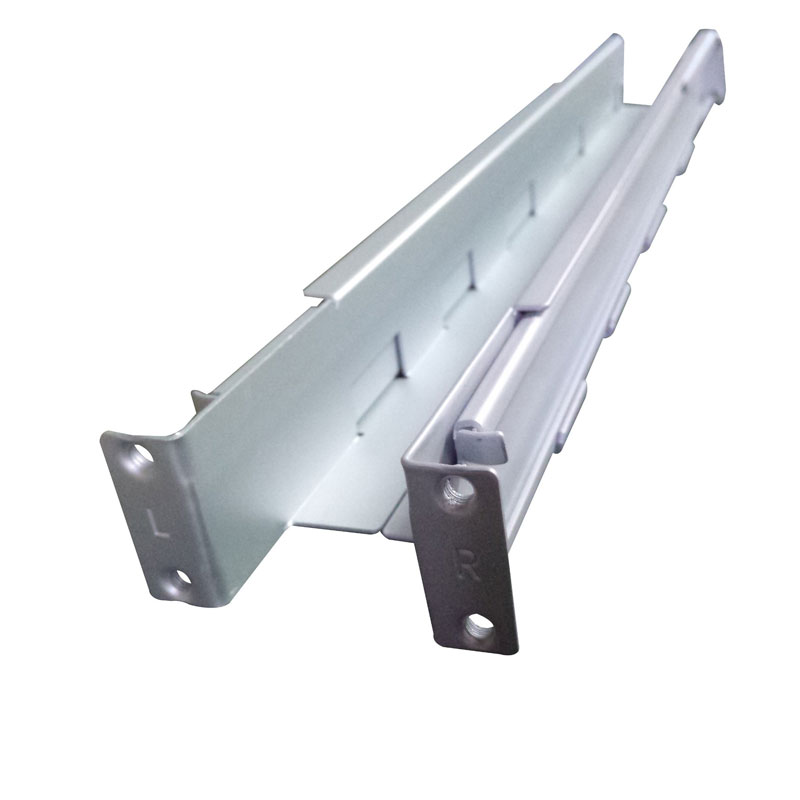

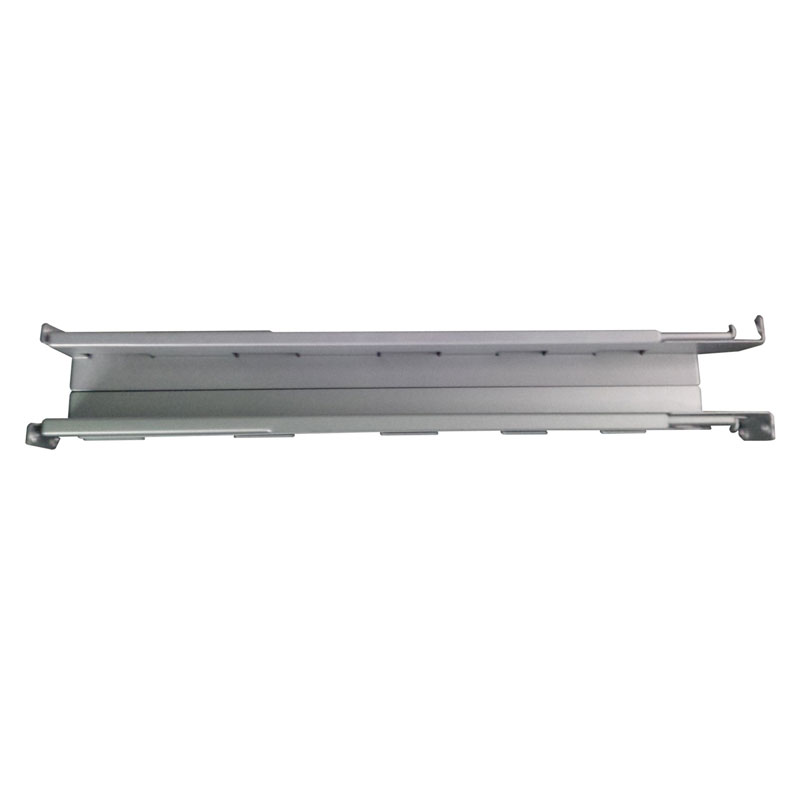

  • Includes: (1) DC cable, Basic UPS signalling RS-232 cable, CD with software, Rack mounting brackets, Rack mounting support rails, USB cable, User manual





ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม

฿143,800.00

โทรสอบถามสต็อก

APC Easy UPS SRV10KRILRK

APC Easy UPS SRV10KRILRK

APC Easy UPS On-Line SRV RM 10000VA 230V with External Battery Pack, with Rail kit

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

  • Max Configurable Power (Watts) : 10.0kWatts / 10.0kVA
  • Efficiency at Full Load : 94.0 %
  • Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
  • Other Output Voltages : 220, 240
  • Load Crest Factor : (3 : 1)
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Bypass : Internal bypass (automatic and manual)

Input

  • Input frequency : 40 – 70 Hz
  • Input voltage range for main operations : 110 – 300 Adjustable (half load), 176 – 300V
  • Efficiency at Full Load : 94.0 %
  • Other Input Voltages : 220, 240

Batteries & Runtime

Communications & Management

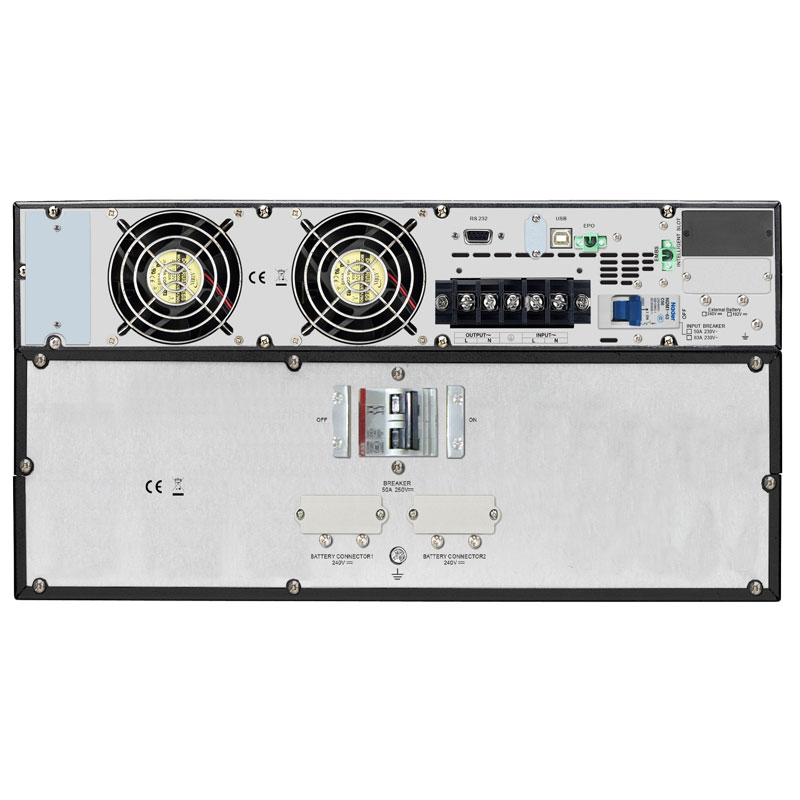

  • Interface Port(s) : DB-9 RS-232, Intelligent Smart Slot, USB

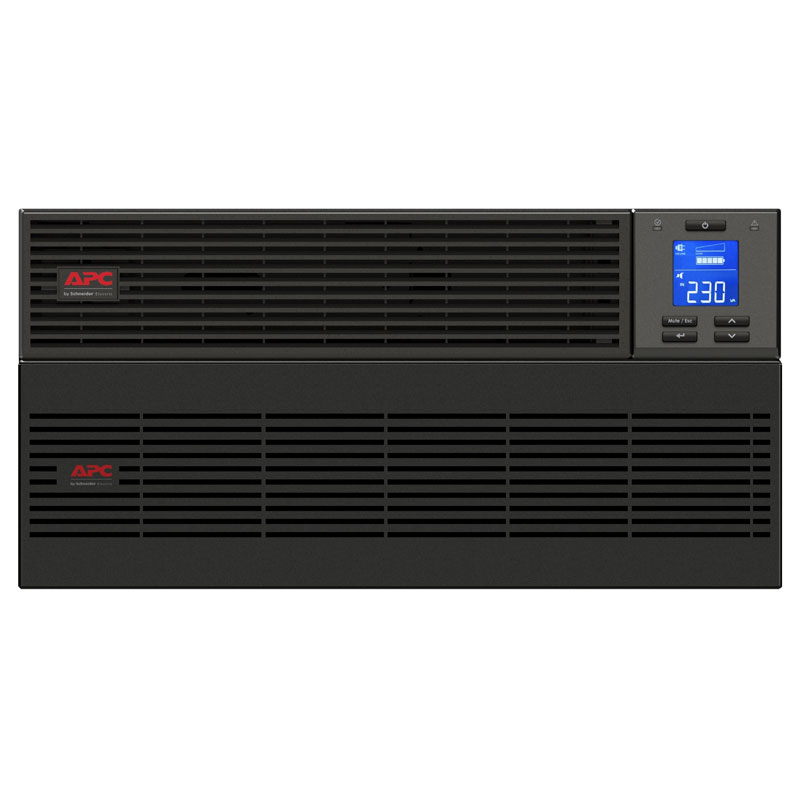

  • Control panel : Multifunction LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency Power Off (EPO) : Yes

Surge Protection and Filtering

  • Surge energy rating : 600Joules

Physical

  • Maximum Height : 220MM, 21.95CM
  • Maximum Width : 438MM, 43.8CM
  • Maximum Depth : 615MM, 61.5CM
  • Net Weight : 78KG
  • Shipping weight : 88KG
  • Shipping Height : 490MM, 49.0CM
  • Shipping Width : 600MM, 60.0CM
  • Shipping Depth : 870MM, 87.0CM
  • Color : Black

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3000meters
  • Storage Temperature : -15-60 °C
  • Storage Elevation : 0 – 15000meters

Conformance

  • Approvals : CE, EAC, IEC 62040-1-1, IEC 62040-1-2
  • Standard Warranty : 2Y Onsite 5×8
รหัสสินค้า: SRV10KRILRK หมวดหมู่: , , , ป้ายกำกับ: , ,
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

10000 VA

UPS Watts

10000 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

1

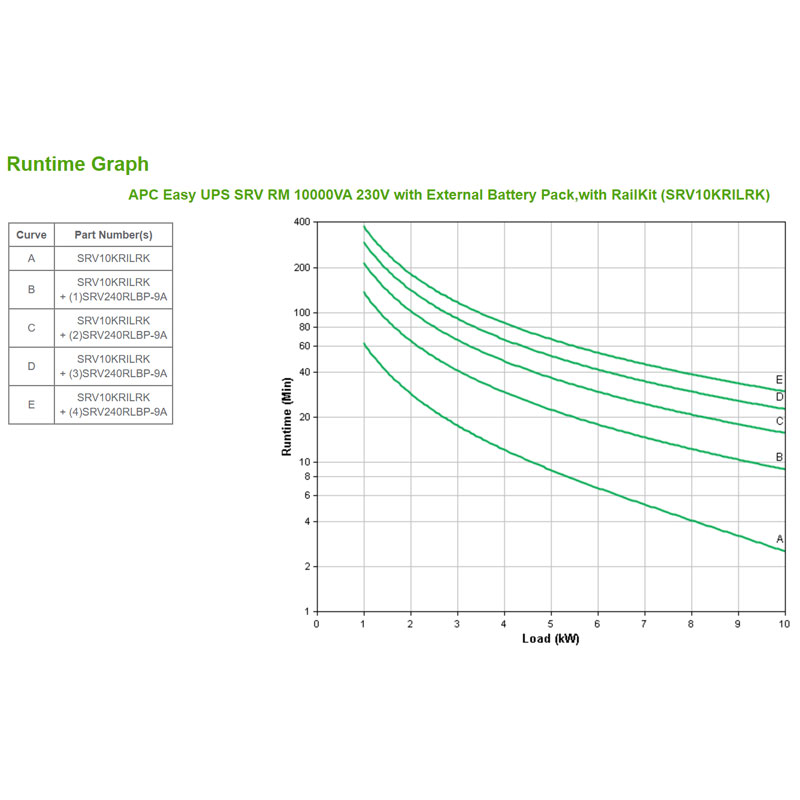

UPS Full Load Backup Time

3 min

UPS Half Load Backup Time

9 min

UPS External Battery

รองรับการต่อ Battery เพิ่ม

UPS Max Battery Pack Support

4 Pack

UPS Network Card Support

Network Card Support

UPS Software

No Software

UPS Warranty

2Y Onsite 5×8
