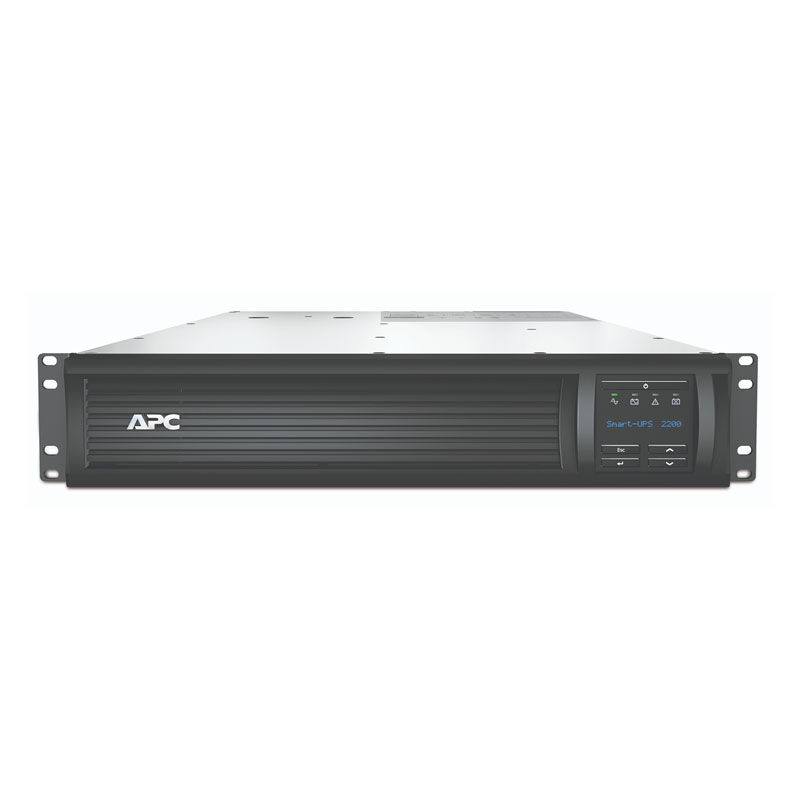

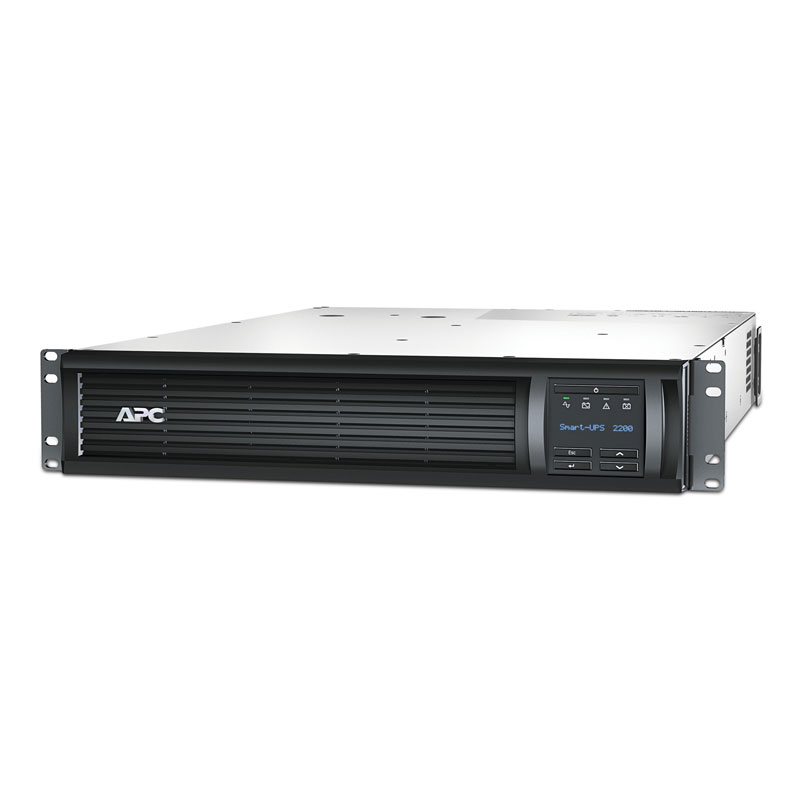

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect

รหัสสินค้า : SMT2200RMI2UC
APC
Availability:

ตรวจสอบราคา สต็อก และระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Output power capacity : 2200kVA / 1980Watts
  • Max Configurable Power (Watts) : 2200kVA / 1980Watts
  • Nominal Output Voltage : 230V
  • Topology : Line Interactive
  • Waveform type : Sine wave
  • Transfer Time : 6ms typical
  • Output Connections : (8) IEC 320 C13 (Battery Backup)
  • 3Years Warranty On-Site Swap

ส่งฟรีเฉพาะกรุงเทพและปริมณฑล

ราคาโปรโมชั่นถึง 30 มิถุนายน 2565


--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 55,500.00 ฿ 61,600.00
฿ 59,385.00 (ราคารวมภาษี)

ตรวจสอบราคา สต็อก และระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


APC Smart-UPS 2200VA LCD RM 2U 230V (SMT2200RMI2UC)

APC Smart-UPS 2200VA LCD RM 2U 230V (SMT2200RMI2UC)

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect | SMT2200RMI2UC

Output

  • Output power capacity : 1.98kWatts / 2.2kVA
  • Max Configurable Power (Watts) : 1.98kWatts / 2.2kVA
  • Nominal Output Voltage : 230V
  • Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion : Less than 5%
  • Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
  • Other Output Voltages : 220, 240
  • Topology : Line Interactive
  • Waveform type : Sine wave

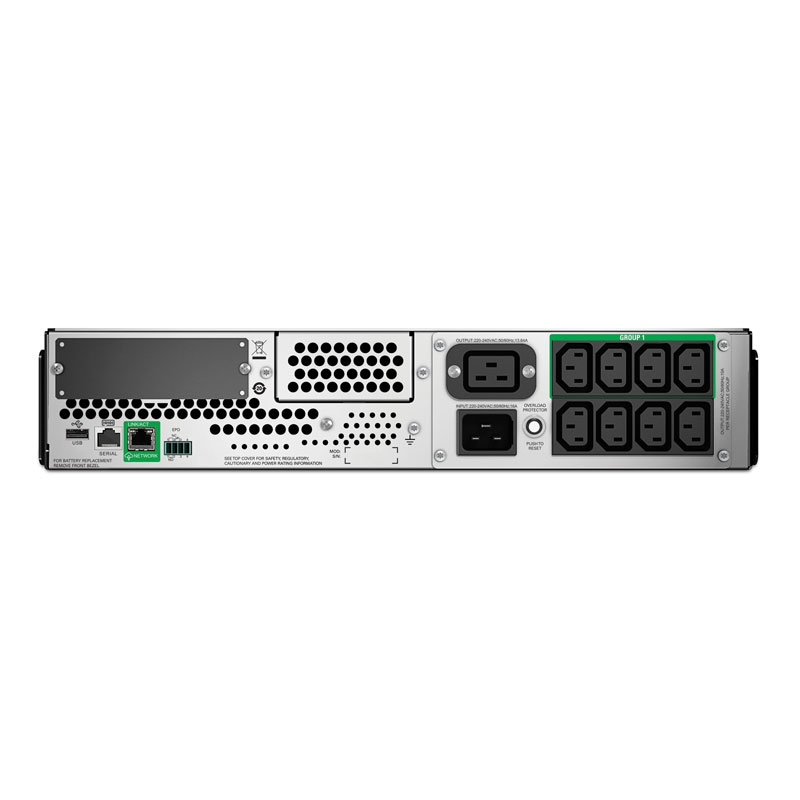

  • Output Connections : (8) IEC 320 C13 (Battery Backup)
  • Transfer Time : (6ms typical)(10ms maximum)

Input

  • Nominal Input Voltage : 230V
  • Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections : British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
  • Cord Length : 2meters
  • Input voltage range for main operations : 160 – 286V
  • Input voltage adjustable range for mains operation : 151 – 302V
  • Number of Power Cords : 1
  • Other Input Voltages : 220, 240

Batteries & Runtime

  • Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time : 3hour(s)
  • Replacement Battery : RBC43
  • Expected Battery Life (years) : 3 – 5_
  • RBC Quantity : 1
  • RBC Quantity : 509
  • Runtime : View Runtime Graph , View Runtime Chart

Communications & Management

  • Interface Port(s) : RJ-45 Serial, SmartSlot, USB
  • Control panel : Multi-function LCD status and control console
  • Audible : Alarm when on battery : distinctive low battery alarm : configurable delays
  • Available SmartSlot Interface Quantity : 1

Surge Protection and Filtering

  • Surge energy rating : 375Joules

Physical

  • Maximum Height : 86MM, 8.6CM
  • Maximum Width : 480MM, 48.0CM
  • Maximum Depth : 683MM, 68.3CM
  • Rack Height : 2U
  • Net Weight : 42.31KG
  • Shipping weight : 49.73KG
  • Shipping Height : 254MM, 25.4CM
  • Shipping Width : 600MM, 60.0CM
  • Shipping Depth : 980MM, 98.0CM
  • Units per Pallet : 8.0

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 %
  • Operating Elevation : 0-3000meters
  • Storage Temperature : -15 – 45 °C
  • Storage Relative Humidity : 0 – 95 %
  • Storage Elevation : 0-15000meters
  • Audible noise at 1 meter from surface of unit : 55.0dBA
  • Online thermal dissipation : 215.0BTU/hr

Conformance

  • Approvals : CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
  • Standard warranty : 3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

  • RoHS : Compliant
  • REACH : (REACH: Contains No SVHCs)
SKU: SMT2200RMI2UC Categories: , , , Tags: , , , ,
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

2200 VA

UPS Watts

1980 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.9

UPS Full Load Backup Time

5 min

UPS Half Load Backup Time

16 min

UPS External Battery

ไม่รองรับการต่อ Battery

UPS Max Battery Pack Support

ต่อเพิ่มไม่ได้

UPS Network Card Support

Network Card Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
