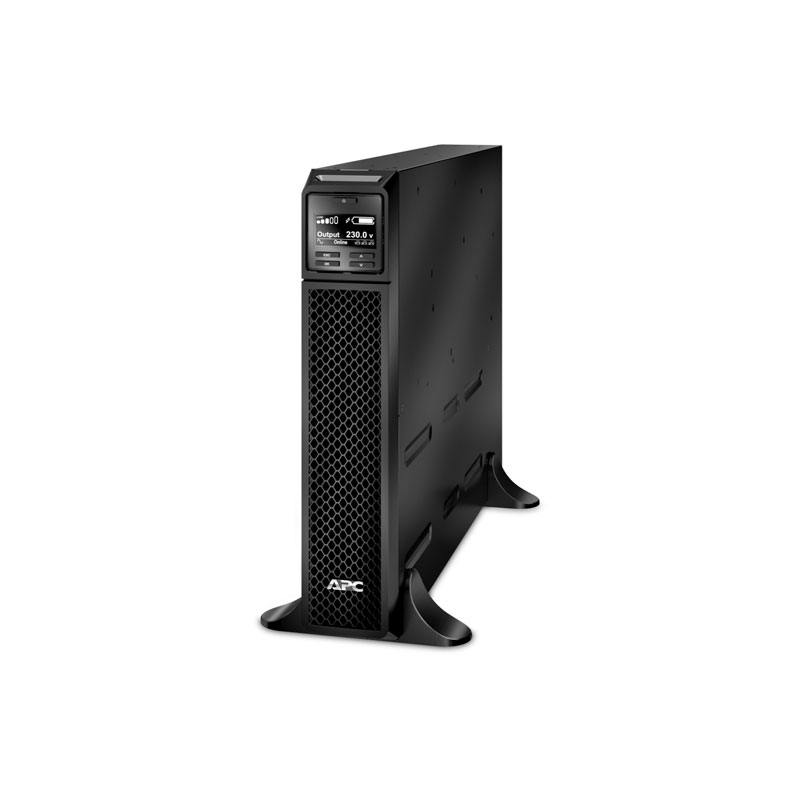

APC Smart-UPS SRT 1500VA 230V

รหัสสินค้า : SRT1500XLI
APC
สถานะ

โทรสอบถามสต็อก


  • Max Configurable Power (Watts) : 1.5kWatts / 1.5kVA
  • Other Output Voltages : 220, 240
  • Topology : Double conversion online
  • Waveform type : Sine wave

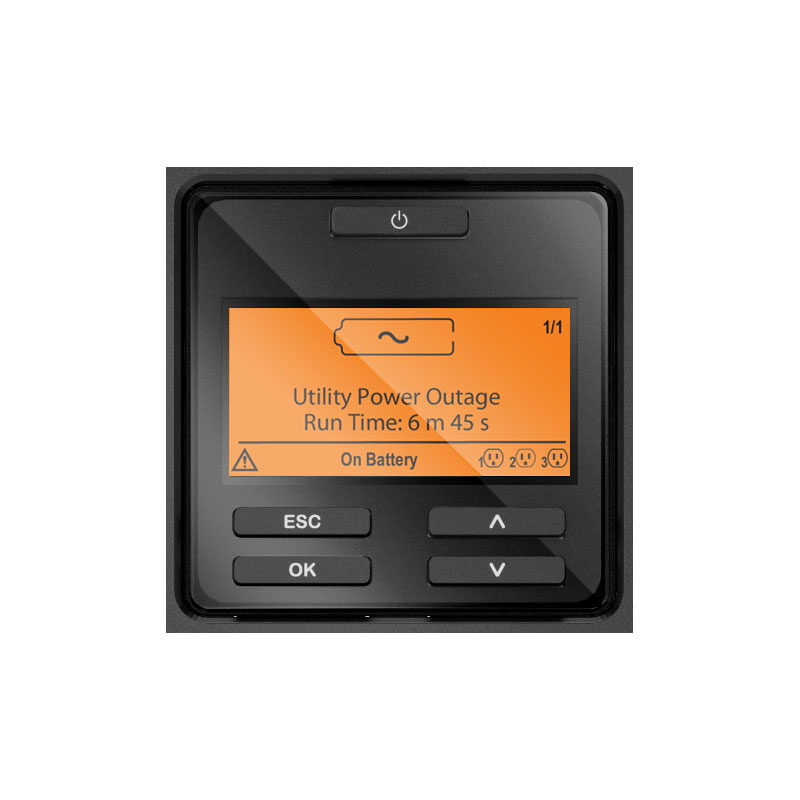

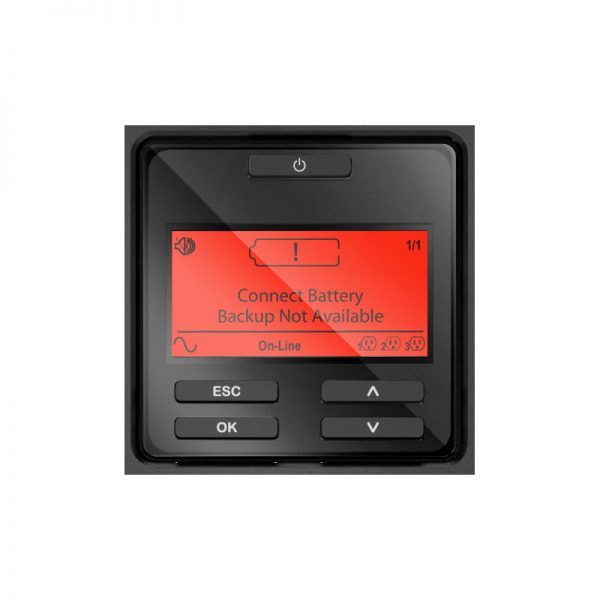

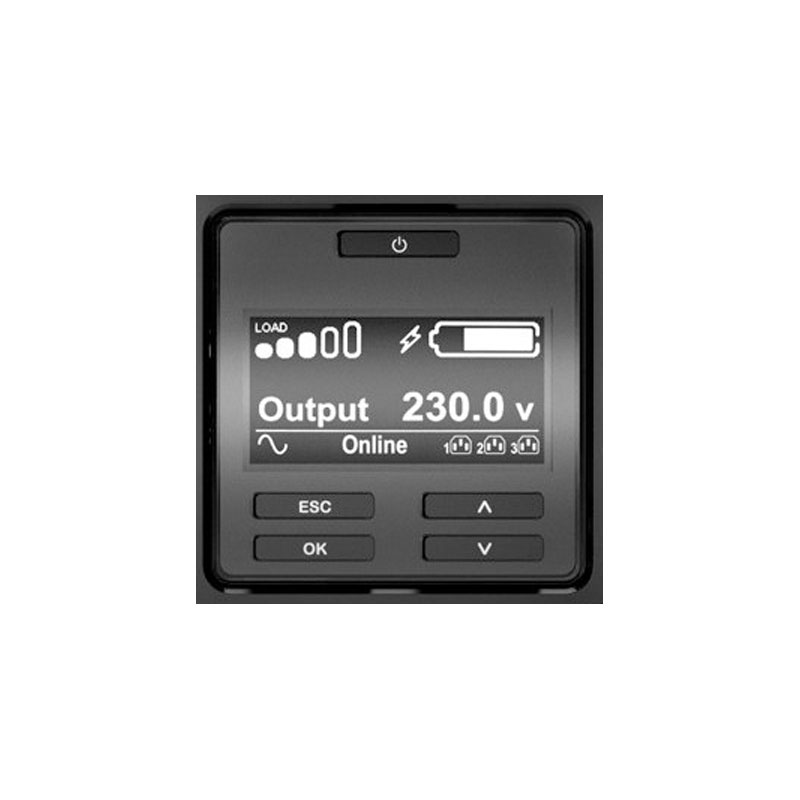

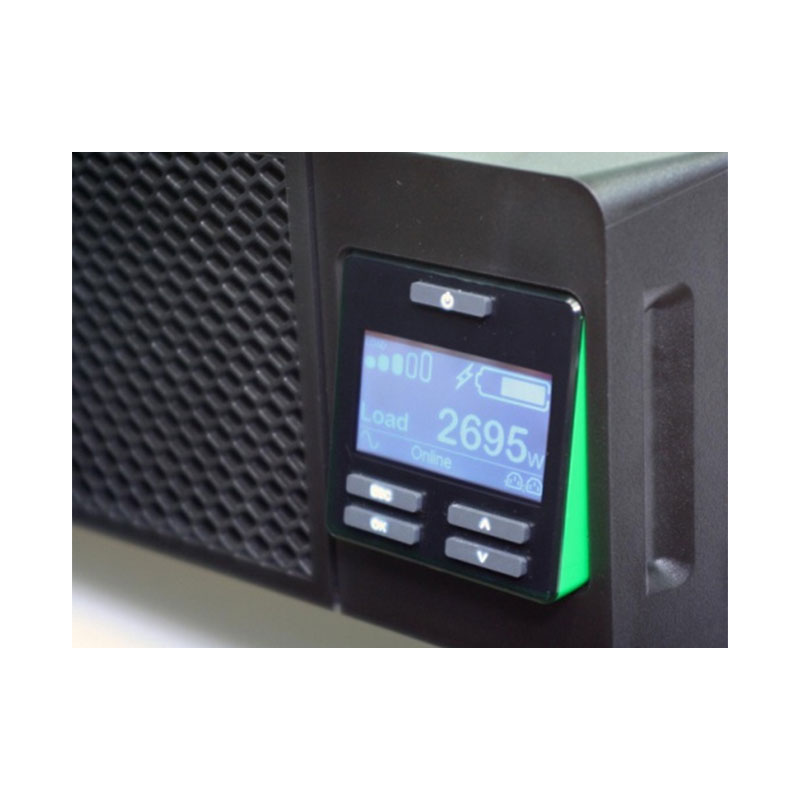

  • Control panel : Multifunction LCD status and control console
  • Output Connections :
    (6) IEC 60320 C13 (Battery Backup)
    (6) IEC 320 C13 (Battery Backup)
  • Includes: CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card





--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 45,100.00
฿ 48,257.00 (ราคารวมภาษี)

โทรสอบถามสต็อก

APC Smart-UPS SRT1500XLI

APC Smart-UPS SRT1500XLI

APC Smart-UPS SRT 1500VA 230V

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

  • Max Configurable Power (Watts) : 1.5kWatts / 1.5kVA
  • Output Voltage Distortion : Less than 2 %
  • Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
  • Other Output Voltages : 220, 240
  • Load Crest Factor : (3 : 1)
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Bypass : Built-in bypass

Input

  • Input frequency : 40 – 70 Hz Auto-sensing
  • Input voltage range for main operations : 100 – 275V
  • Number of Power Cords : 1
  • Other Input Voltages : 220, 240

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 3hour(s)
  • Nominal Battery Voltage : 48 V
  • Expected Battery Life (years) : 3 – 5
  • Battery Charge Power (Watts) : 108 Watts

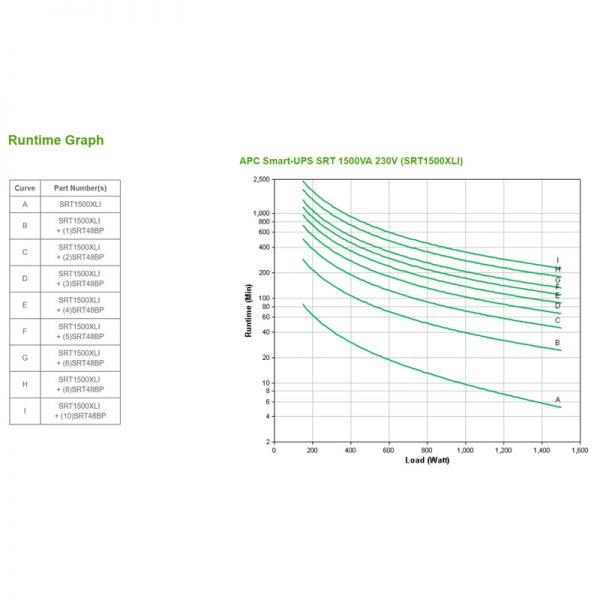

  • Runtime : View Runtime Graph

Communications & Management

  • Interface Port(s) : RJ-45 Serial, Smart-Slot, USB
  • Control panel : Multifunction LCD status and control console
  • Audible Alarm : Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO) : Yes

Surge Protection and Filtering

  • Surge energy rating : 432Joules

Physical

  • Maximum Height : 432MM, 43.2CM
  • Maximum Width : 85MM, 8.5CM
  • Maximum Depth : 505MM, 50.5CM
  • Net Weight : 20.5KG
  • Shipping weight : 29.6KG
  • Shipping Height : 246MM, 24.6CM
  • Shipping Width : 594MM, 59.4CM
  • Shipping Depth : 749MM, 74.9CM
  • Color : Black
  • Units per Pallet : 12.0

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3048meters
  • Storage Temperature : -20 – 50 °C
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 50.0dBA
  • Protection Class : IP20

Conformance

  • Approvals : CE, EAC
  • Standard Warranty : 3Y Onsite 5×8
รหัสสินค้า: SRT1500XLI หมวดหมู่: , , , ป้ายกำกับ: ,
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

1500 VA

UPS Watts

1500 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

1

UPS Full Load Backup Time

5 min

UPS Half Load Backup Time

14 min

UPS External Battery

รองรับการต่อ Battery เพิ่ม

UPS Max Battery Pack Support

10 Pack

UPS Network Card Support

Network Card Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
