APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V

รหัสสินค้า : SMX3000HV
APC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Max Configurable Power (Watts) : 2.7kWatts / 3.0kVA
  • Other Input Voltages : 220 V, 240 V
  • Topology : Line interactive
  • Waveform type : Sine wave
  • Control panel : LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
  • Rack Height : 4U

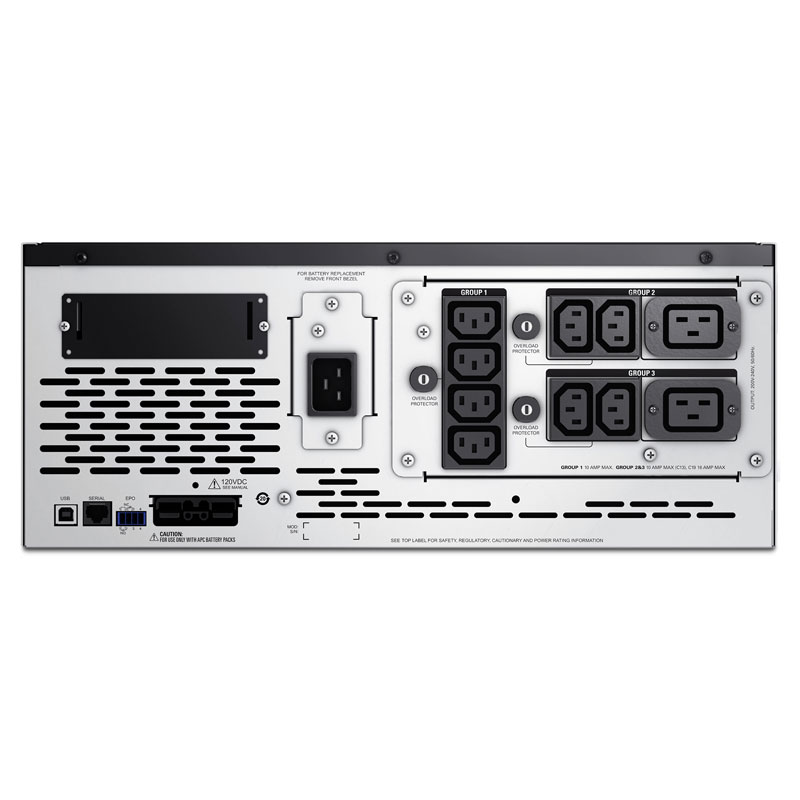

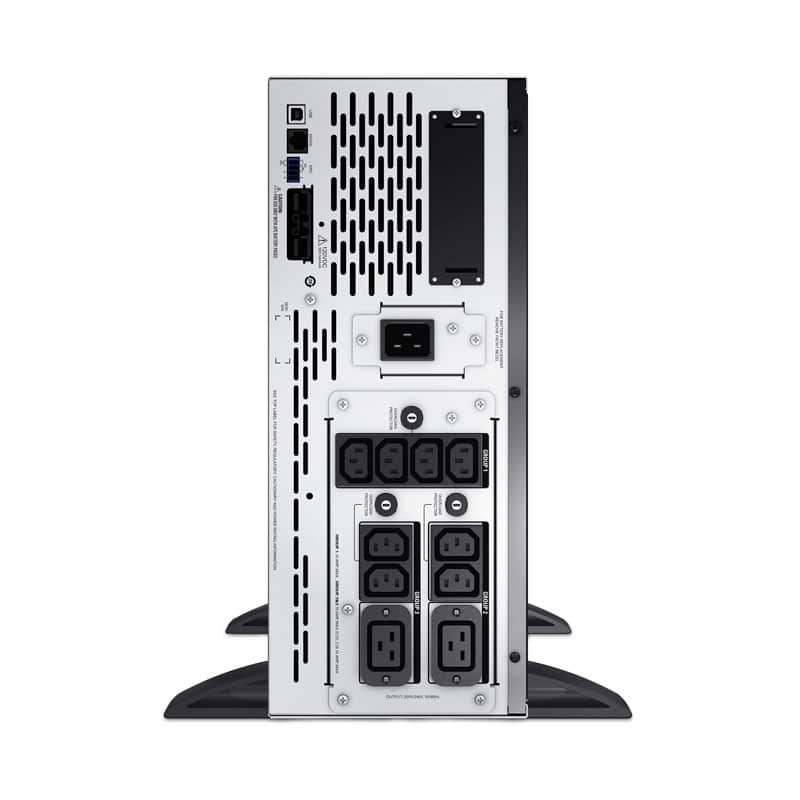

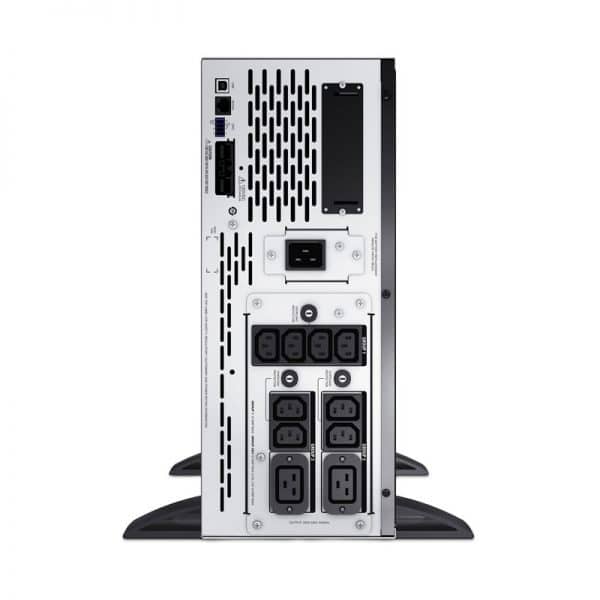

  • Output Connections
    (2) IEC 320 C19 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
    (8) IEC 320 C13 (Battery Backup)
  • Includes : CD with software, Documentation CD, Rack mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User manual
  • 3Y Onsite 5×8




--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 85,000.00 ฿ 91,700.00
฿ 90,950.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


APC Smart-UPS SMX3000HV

APC Smart-UPS SMX3000HV

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

  • Max Configurable Power (Watts) : 2.7kWatts / 3.0kVA
  • Output Voltage Distortion : Less than 5 %
  • Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
  • Other Output Voltages : 208 V, 220 V, 240 V
  • Load Crest Factor : 3 : 1
  • Topology : Line interactive
  • Waveform type : Sine wave
  • Transfer Time : 6 ms typical : 10 ms maximum

Input

  • Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
  • Input voltage range for main operations : 140 – 280V
  • Number of Power Cords : 1
  • Other Input Voltages : 220 V, 240 V

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 3hour(s)
  • Expected Battery Life (years) : 3 – 5
  • RBC Quantity : 1
  • Battery Charge Power (Watts) : 245 Watts

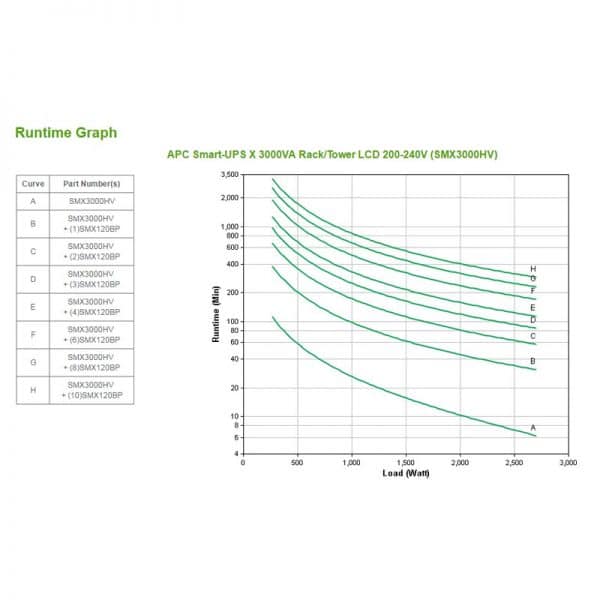

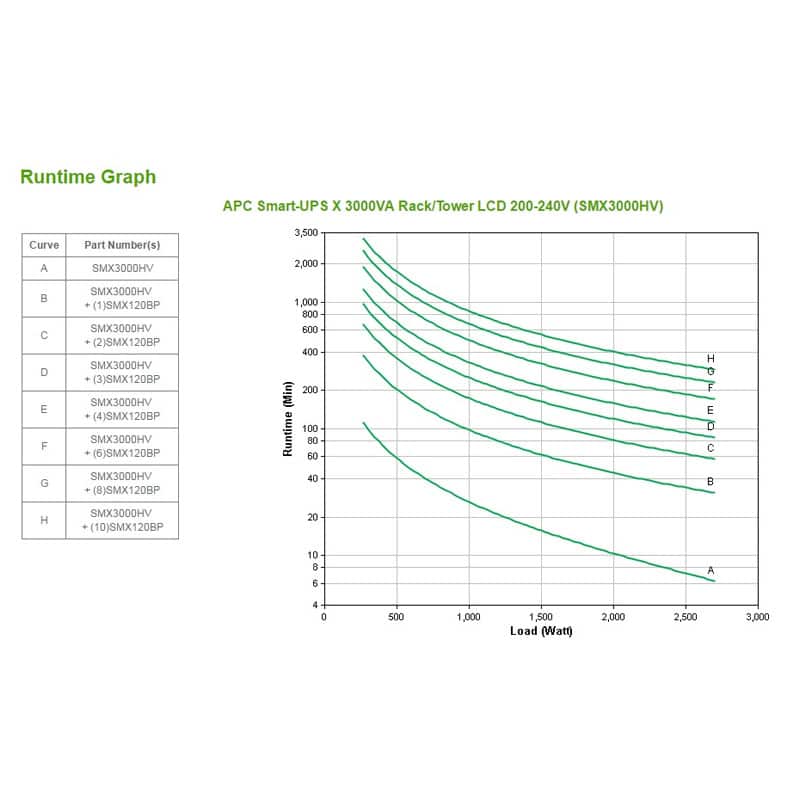

  • Runtime : Runtime Graph

Communications & Management

  • Interface Port(s) : RJ-45 Serial, SmartSlot
  • Control panel : LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays


Surge Protection and Filtering

  • Surge energy rating : 645Joules
  • Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical

  • Maximum Height : 432MM, 43.2CM
  • Maximum Width : 178MM, 17.8CM
  • Maximum Depth : 483MM, 48.3CM
  • Net Weight : 38.64KG
  • Shipping weight : 47.73KG
  • Shipping Height : 330MM, 33.0CM
  • Shipping Width : 586MM, 58.6CM
  • Shipping Depth : 633MM, 63.3CM
  • Color : Black
  • Units per Pallet : 6.0

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 %
  • Operating Elevation : 0 – 3048meters
  • Storage Temperature : -15 – 45 °C
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 55.0dBA
  • Online thermal dissipation : 184.0BTU/hr

Conformance

  • Approvals : CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, TISI, VDE
  • Standard Warranty : 3Y Onsite 5×8
SKU: SMX3000HV Categories: , , , Tags: ,
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

3000 VA

UPS Watts

2700 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.9

UPS Full Load Backup Time

6 min

UPS Half Load Backup Time

18 min

UPS External Battery

รองรับการต่อ Battery เพิ่ม

UPS Max Battery Pack Support

10 Pack

UPS Network Card Support

Network Card Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
