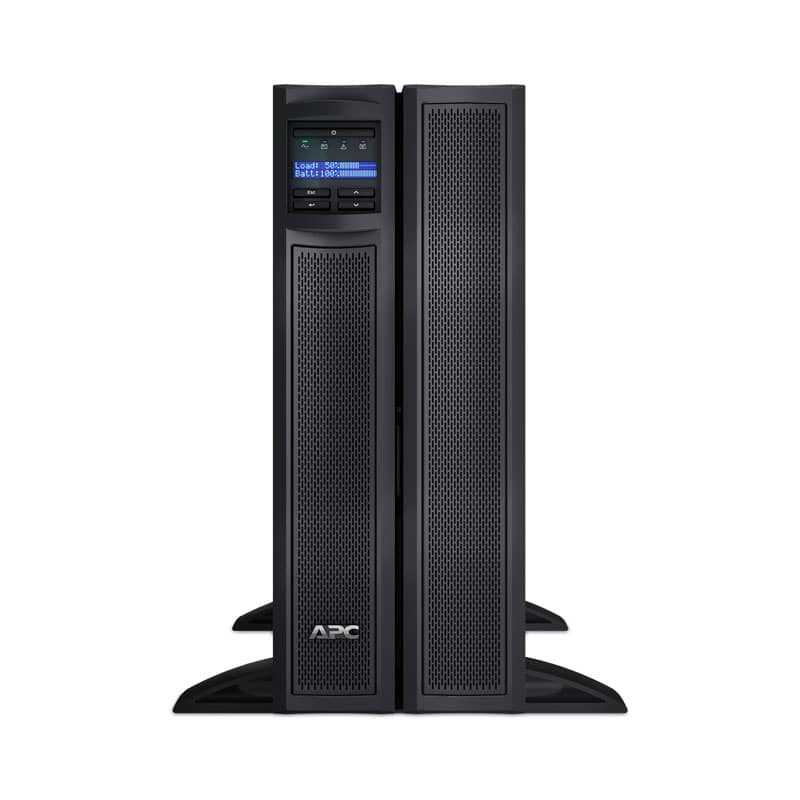

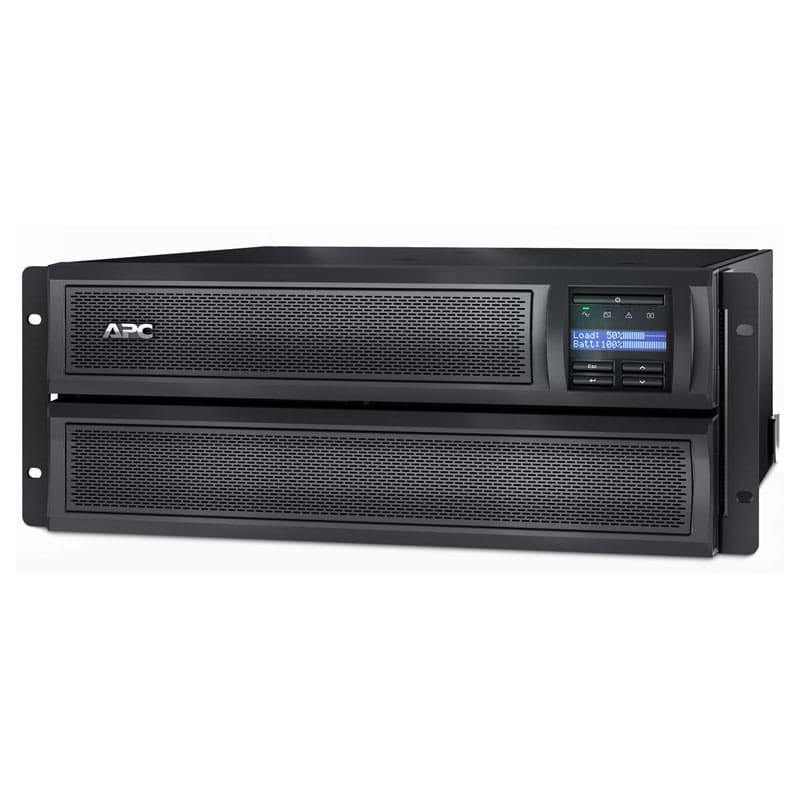

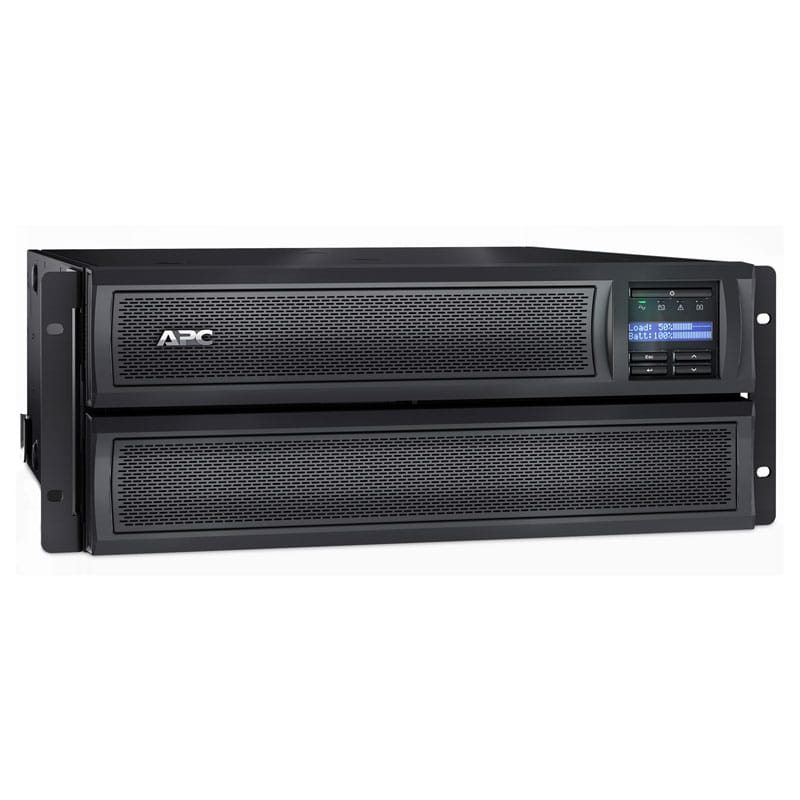

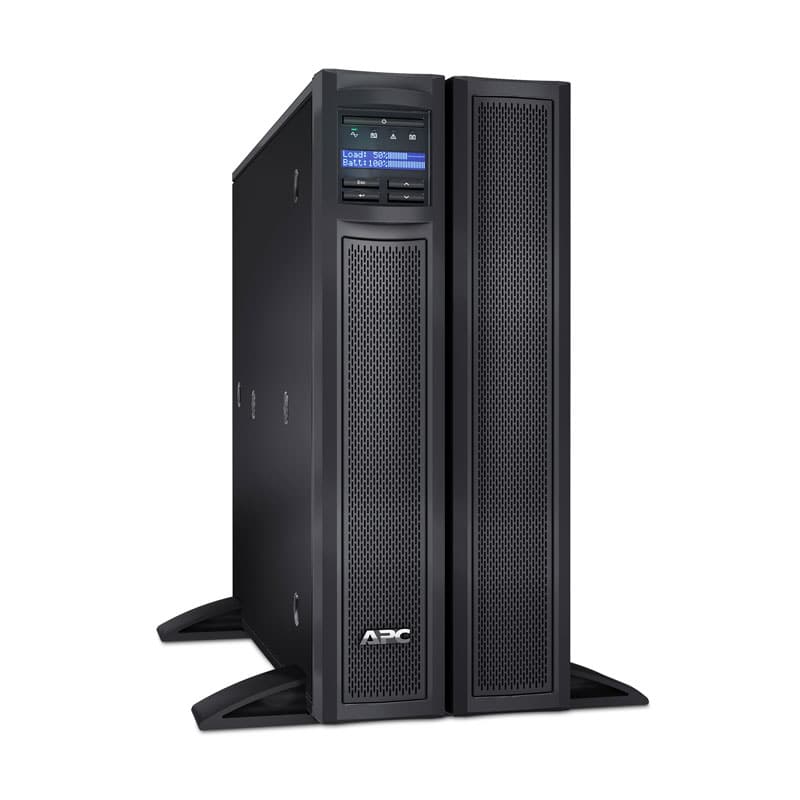

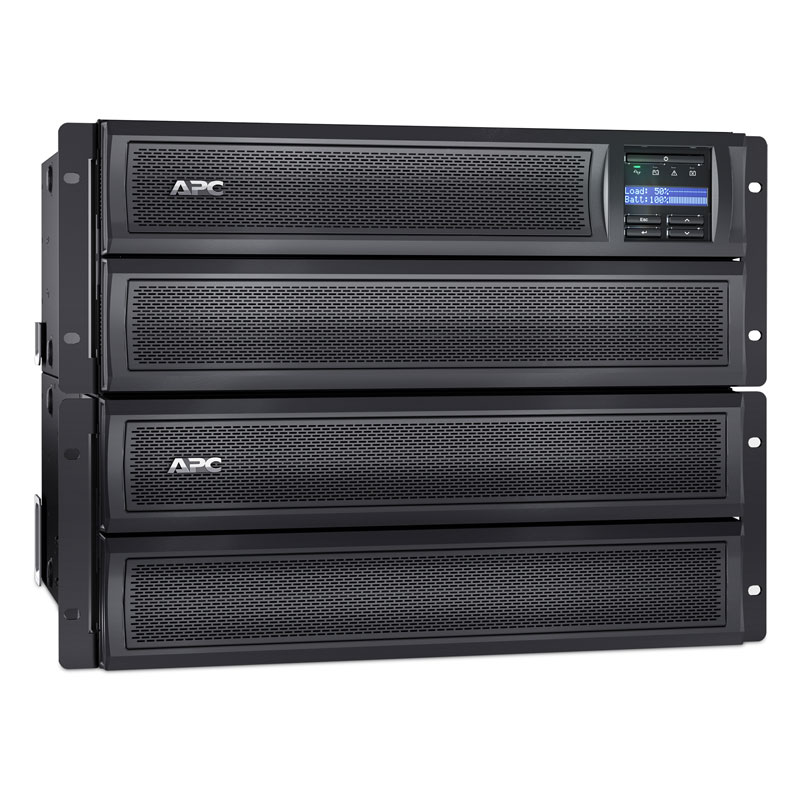

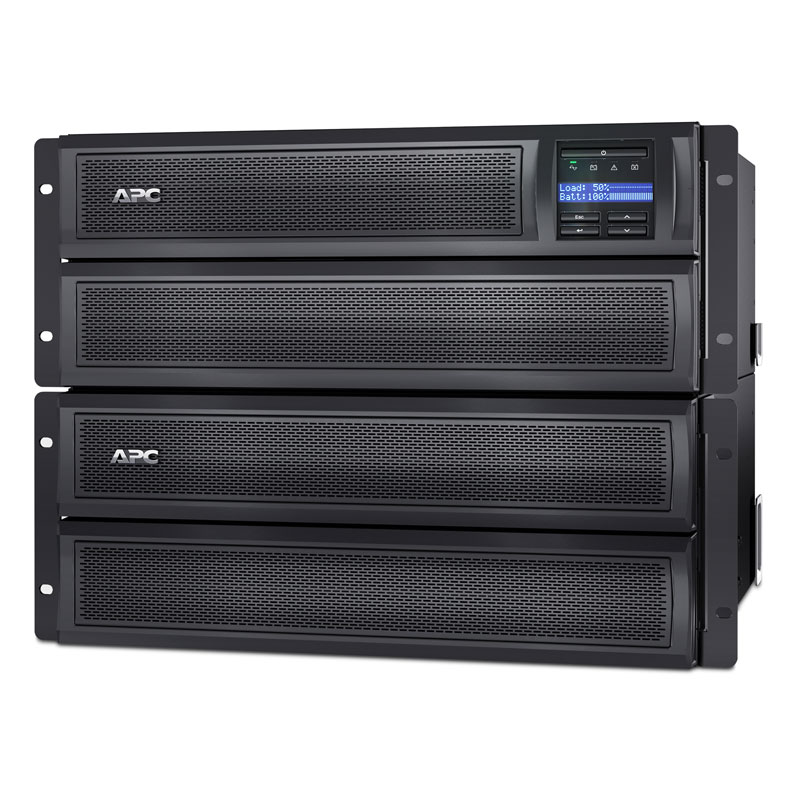

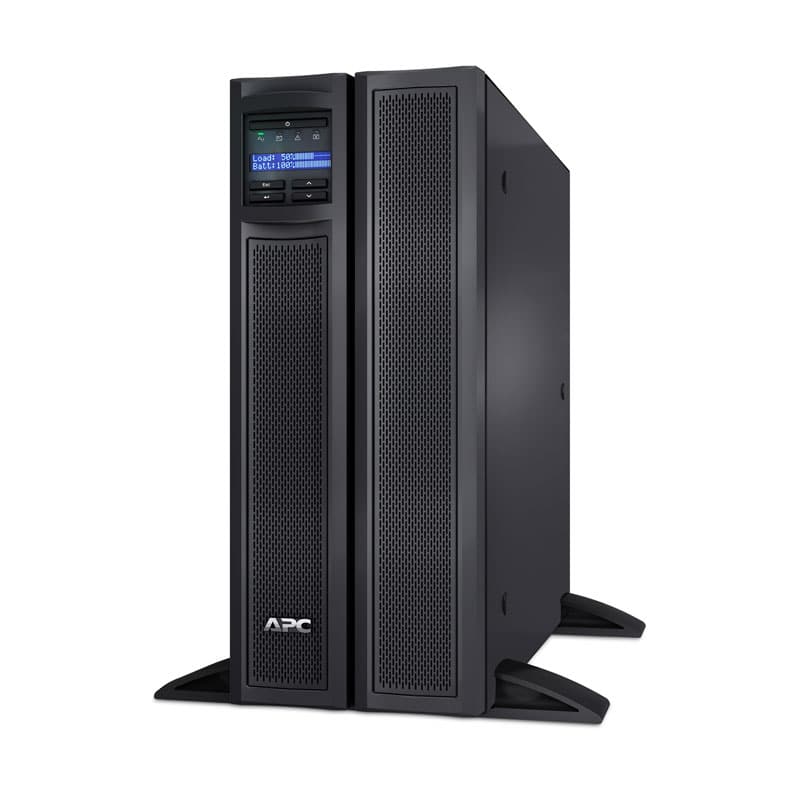

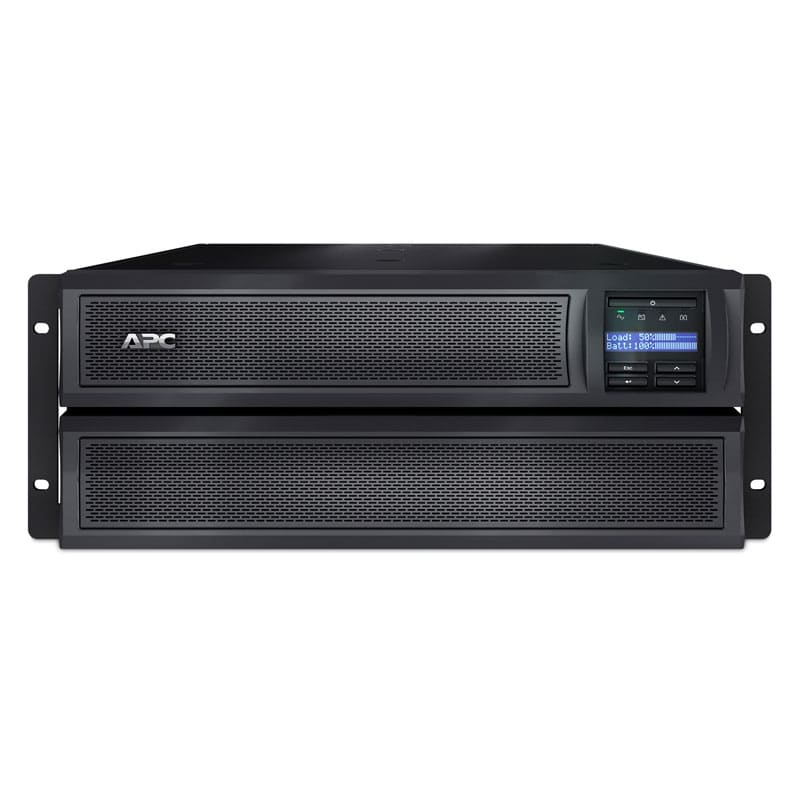

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card

SKU : SMX3000RMHV2UNC

APC
Availability:

โทรสอบถามสต็อก


  • Output power capacity 2.7 KWatts / 3.0 kVA
  • Max Configurable Power (Watts) 2.7 KWatts / 3.0 kVA
  • Nominal Output Voltage 230V
  • Output Voltage Distortion Less than 5%
  • Output Frequency (sync to mains) 50/60Hz /- 3 Hz
  • Other Output Voltages 208, 220, 240
  • Topology Line Interactive
  • Waveform type Sine wave

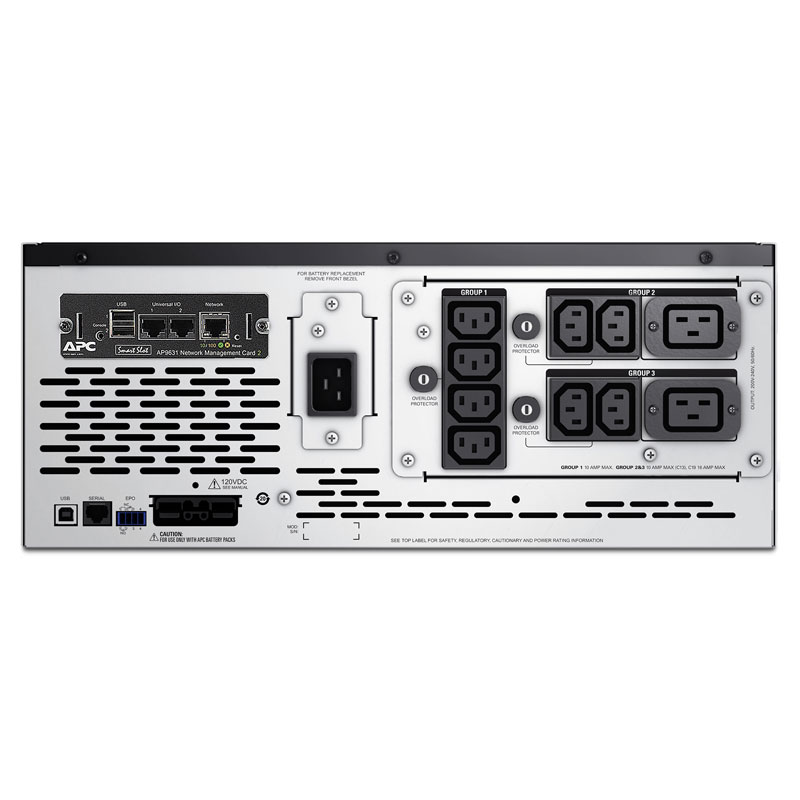

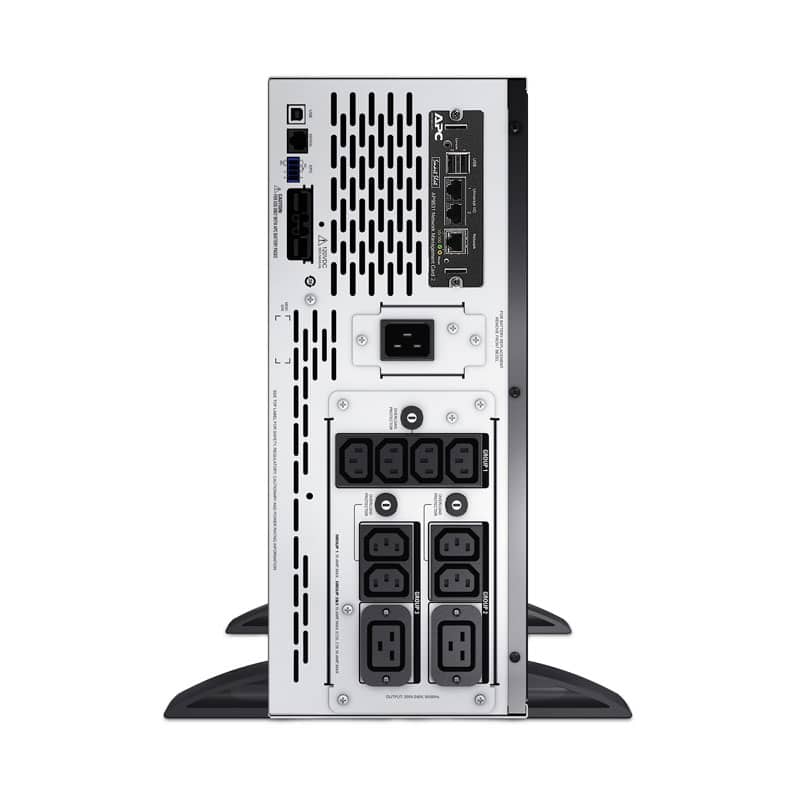

  • Output Connections
  • (2) IEC Jumpers (Battery Backup)
  • (8) IEC 320 C13 (Battery Backup)
  • (1) IEC 320 C19 (Battery Backup)
  • Transfer Time 2-4 ms
  • Transfer Time 6ms typical : 10ms maximum

฿66,900.00

โทรสอบถามสต็อก

Output

  • Output power capacity 2.7 KWatts / 3.0 kVA
  • Max Configurable Power (Watts) 2.7 KWatts / 3.0 kVA
  • Nominal Output Voltage 230V
  • Output Voltage Distortion Less than 5%
  • Output Frequency (sync to mains) 50/60Hz /- 3 Hz
  • Other Output Voltages 208, 220, 240
  • Topology Line Interactive
  • Waveform type Sine wave
  • Output Connections
  • (2) IEC Jumpers (Battery Backup)
  • (8) IEC 320 C13 (Battery Backup)
  • (1) IEC 320 C19 (Battery Backup)
  • Transfer Time 2-4 ms
  • Transfer Time 6ms typical : 10ms maximum

Input

  • Nominal Input Voltage 208V , 230V
  • Input frequency 50/60 Hz /- 3 Hz (auto sensing)
  • Input Connections British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
  • Cord Length 2.44meters
  • Input voltage range for main operations 140 – 280V
  • Number of Power Cords 1
  • Other Input Voltages 220, 240
  • Transfer Time 2-4 ms

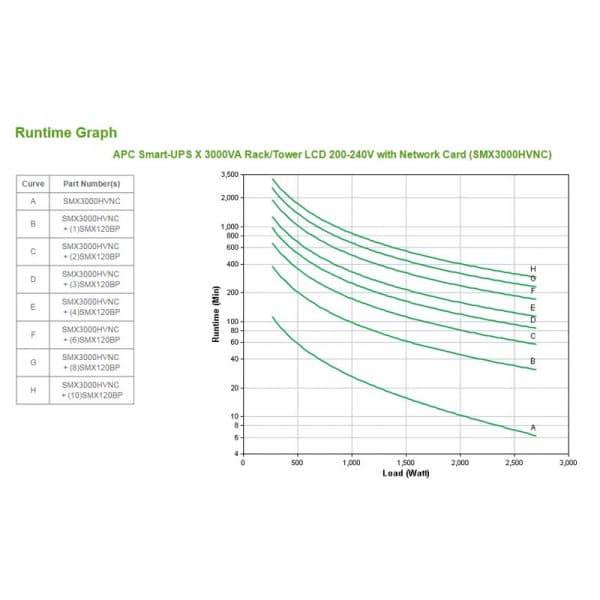

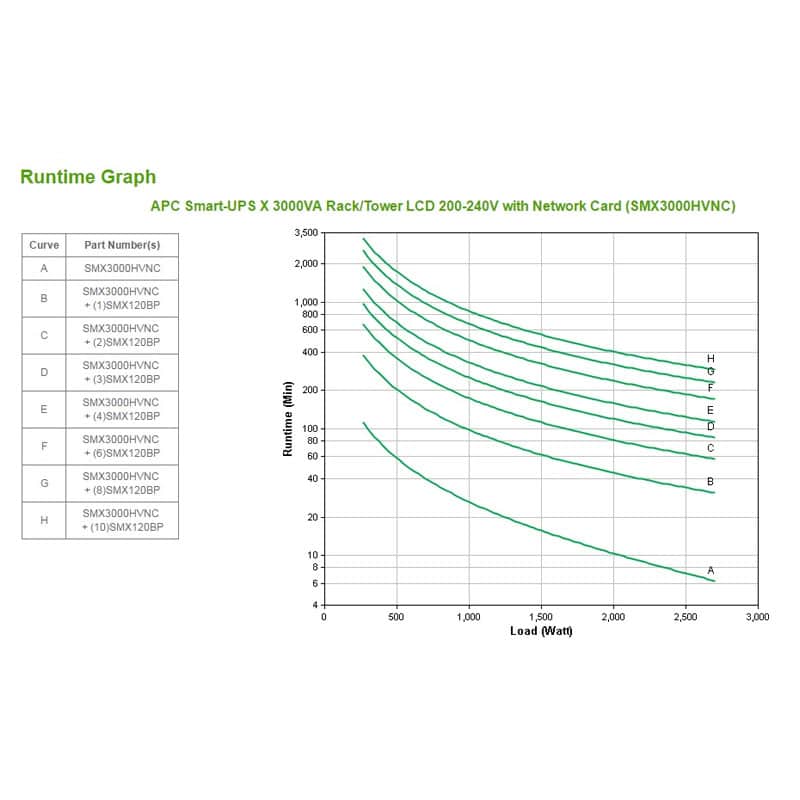

Batteries & Runtime

  • Interface Port(s) SmartSlot
  • Pre-Installed SmartSlot™ Cards AP9631
  • Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
  • Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO) Yes

Surge Protection and Filtering

  • Surge energy rating 645Joules
  • Data Line Protection —
  • Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height 85mm , 8.5cm
  • Maximum Width 432mm , 43.2cm
  • Maximum Depth 667mm , 66.7cm
  • Rack Height 2U
  • Net Weight 37.32kg
  • Shipping weight 45.36kg
  • Shipping Height 243mm , 24.3cm
  • Shipping Width 596mm , 59.6cm
  • Shipping Depth 869mm , 86.9cm
  • Color Black
  • Pallet Dimensions 39.369999999999997inches
  • # of Layers per Pallet 4.0
  • # of Units per Layer per Pallet 2.0
  • Pallet Weight 855.12lbs.
  • Units per Pallet 8.0

Environmental

  • Operating Environment 0 – 40 °C
  • Operating Relative Humidity 0 – 95 %
  • Operating Elevation 0-3000meters
  • Storage Temperature -15 – 45 °C
  • Storage Relative Humidity 0 – 95 %
  • Storage Elevation 0-15000meters
  • Audible noise at 1 meter from surface of unit 55.0dBA
  • Online thermal dissipation 184.0BTU/hr

Conformance

  • Approvals C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE
  • Standard warranty 3 years repair or replace (excluding battery) and 2 year for battery, optional extended warranties available, optional on-site warranties available

Sustainable Offer Status

  • RoHS Compliant
  • REACH REACH: Contains No SVHCs
  • PEP Available in Documentation tab
  • EOLI Available in Documentation tab
  • Battery Directive Compliant
  • Battery Notes ts_Battery_Notes
